CRL 105° Heavy-Duty Hold-Open Overhead Concealed Door Closer Body

• Interchangeable with all Jackson® style overhead concealed door closers
• 20 models available (choose compatible sizes & strengths)
• Conveniently packaged with mounting clips, templates, and instructions
• 5 Year Limited Warranty
• UL Listed for reliability and safety

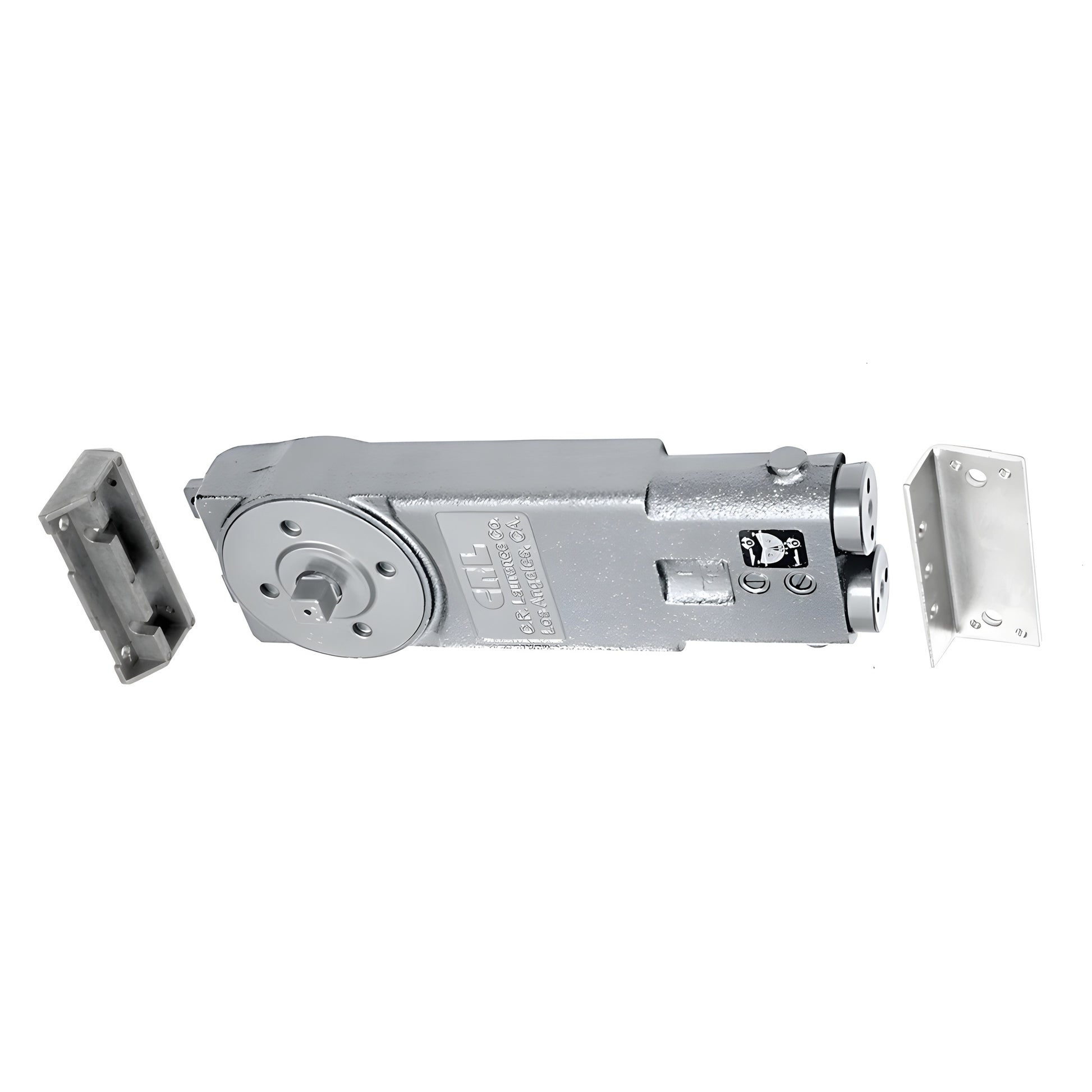

Save cost and customize installs with our Door Closer Bodies with Mounting Clips (SKU: CRL7270). Ideal for replacing a worn closer body without buying unnecessary hardware—add the specific accessories you need (pivots, arms, etc.) to build the exact overhead concealed door closer package for your job. Each unit ships with mounting clips, templates, and clear instructions for fast installation.

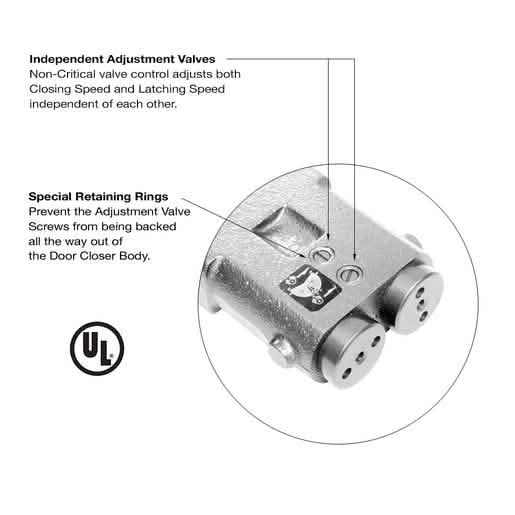

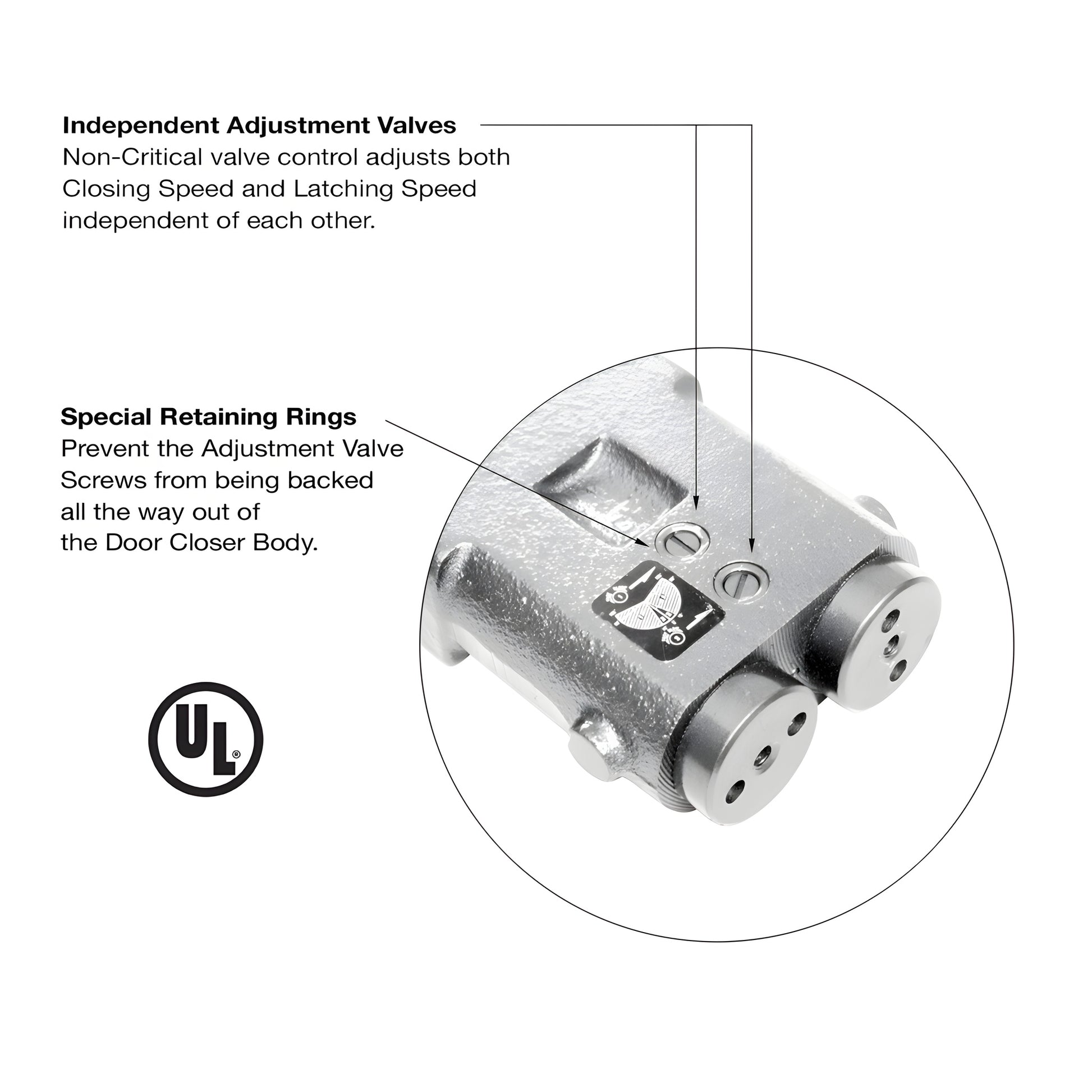

Independent Adjustment Valves
Non-critical valve control lets you adjust both closing speed and latching speed independently for precise door operation.

Special Retaining Rings
Retaining rings prevent adjustment valve screws from backing out of the closer body, reducing maintenance and downtime.

Note: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum allowable door swing.

Weight and Size Limitations
Door weight: 200 lbs (91 kg)
Exterior door width: 42" (1.07 m)
Interior door width: 48" (1.22 m)
All doors height: 96" (2.44 m)

Product Warning:
Closer is not to be used for doors weighing in excess of 220 lbs (100 kg).

Find the right overhead concealed door closer body (Jackson® style) for your commercial or residential project—order SKU CRL7270 today.
