CRL Heavy-Duty 90° Hold-Open Overhead Concealed Door Closer Body

• Interchangeable with All Jackson® Style Overhead Concealed Door Closers
• 20 Models Available
• Conveniently Packaged with Templates and Instructions
• 5 Year Limited Warranty
• UL Listed

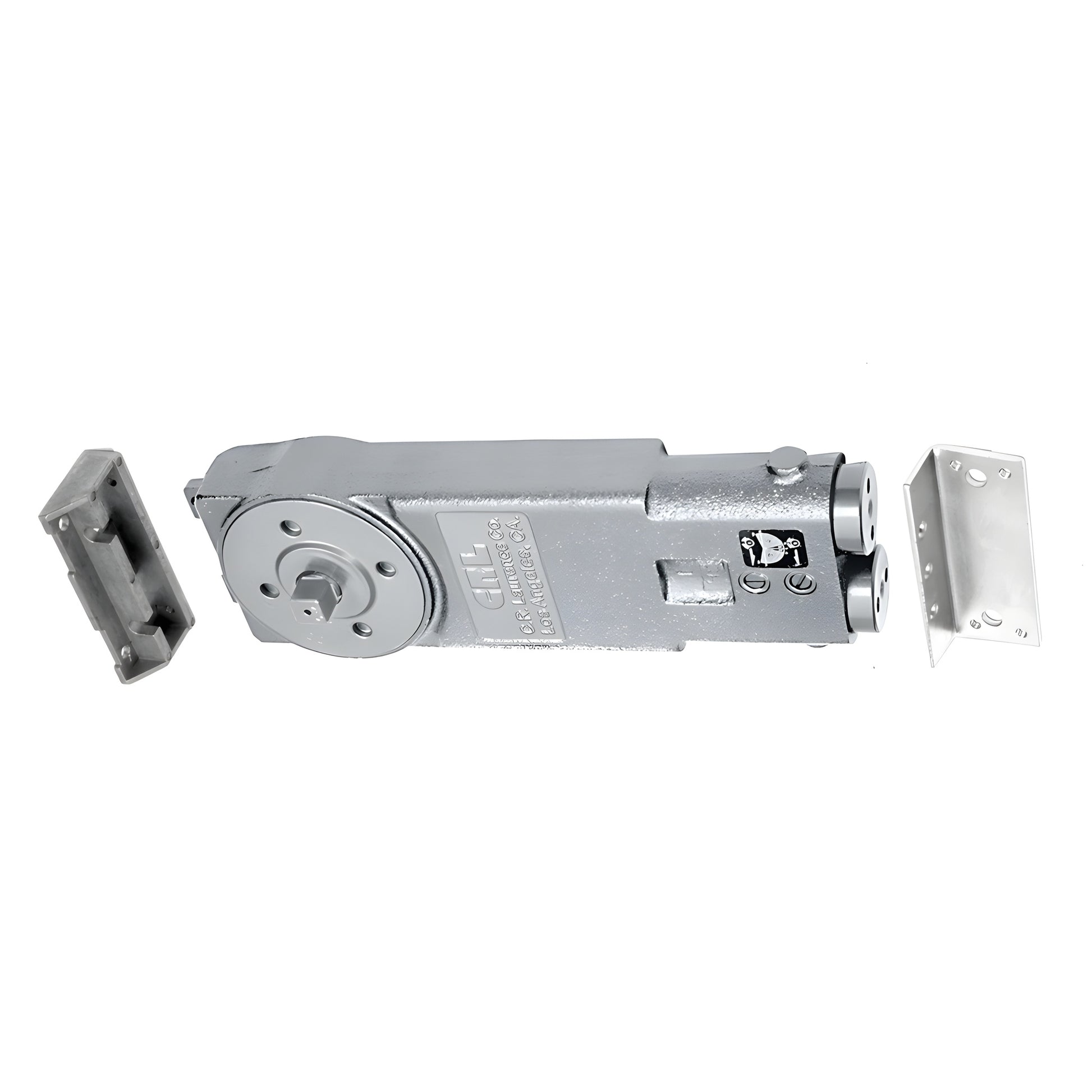

Our Door Closer Bodies with Mounting Clips (SKU: CRL7260) provide a cost‑effective replacement option for worn overhead concealed door closers and a flexible platform to build a custom closer package. Instead of buying a full closer, replace just the body and add the specific accessories (pivots, arms, etc.) you need. Each closer body ships with mounting clips, templates, and installation instructions.

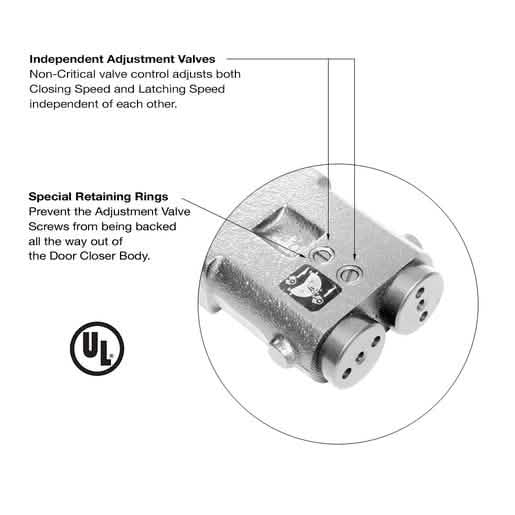

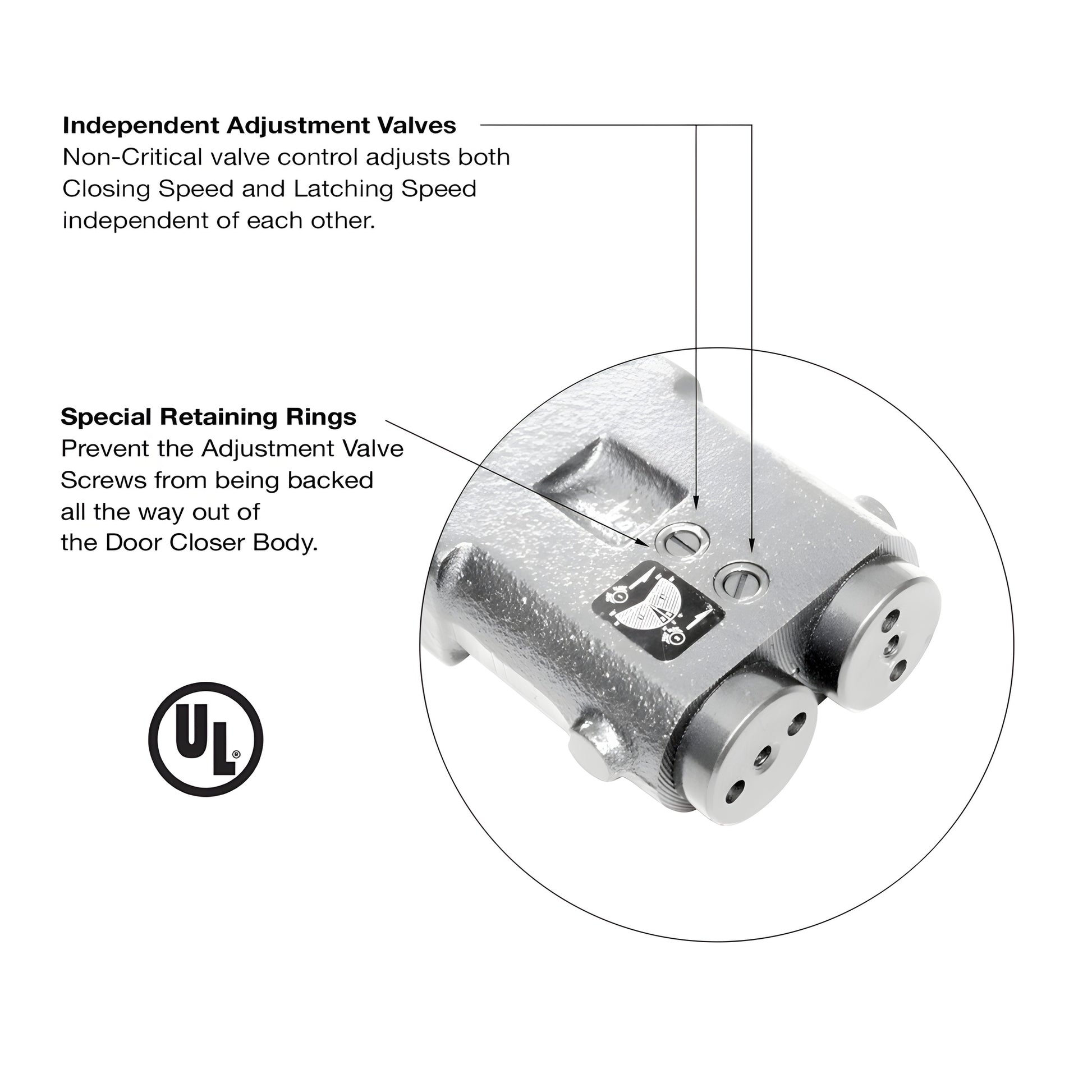

Independent Adjustment Valves
Non-critical valve control adjusts both closing speed and latching speed independently for precise door control.

Special Retaining Rings
Retaining rings prevent adjustment valve screws from backing out of the door closer body.

Installation Note:
An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of maximum allowable door swing.

Weight and Size Limitations
Door Weight: 220 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)

Product Warning:
Closer is not to be used for doors weighing in excess of 220 lbs. (100 kg).

Shop CRL7260 for Jackson® style overhead concealed door closer bodies or contact CRL Customer Service to confirm fit
