CRL Heavy-Duty Brushed Chrome G2 Storeroom Lever Lockset 7‑Pin SFIC
Item# D87STR
Shipping Weight: 2.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 2
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Chrome
Fire Rating Hour
3
Function
Storeroom
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
7 Pin SFIC
Operation Type
F86 Storeroom Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Standard Duty Lever Lockset
UL Listed
Yes
- 7-Pin SFIC option or Schlage® 'C' 6-pin keyway
- ANSI A156.2 Grade 2 commercial lever lockset
- 3 Year Warranty
- UL Listed — 3-hour fire rating

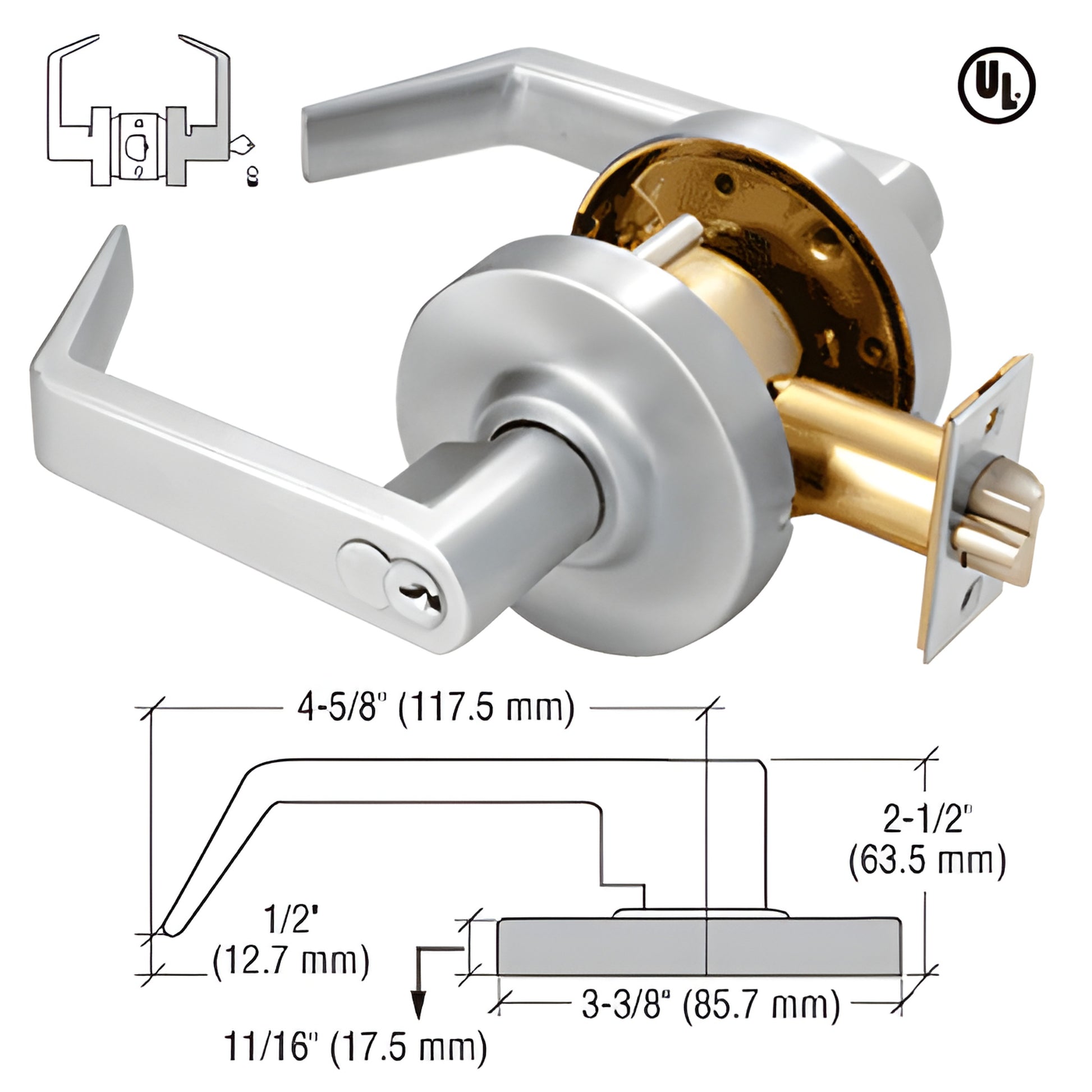

CRL Heavy-Duty Commercial Grade 1 and 2 Lever Locksets — non-handed, reversible heavy-duty commercial lever locksets designed for institutional and high-traffic doors. Fits door thicknesses 1-3/8" to 1-3/4" (35–45 mm) with a 2-3/4" (70 mm) backset and includes an ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike. Available with a 7-pin Small Format Interchangeable Core (SFIC) or Schlage® 'C' 6-pin keyway for master key and rekeying flexibility.
Storeroom function: Outside lever always locked; key unlatches only. Inside lever always allows free egress — ideal for secure storage, utility rooms, and commercial spaces requiring code-compliant egress.
Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
Why choose this lockset? Heavy-duty construction, UL 3-hour fire rating, non-handed reversible design, and SFIC/Schlage keyway options make this an ideal commercial lever lockset for schools, offices, and healthcare facilities.
Order D87STR or contact CRL Customer Service to confirm weight and shipping — buy a reliable, fire-rated commercial lever lockset today.
