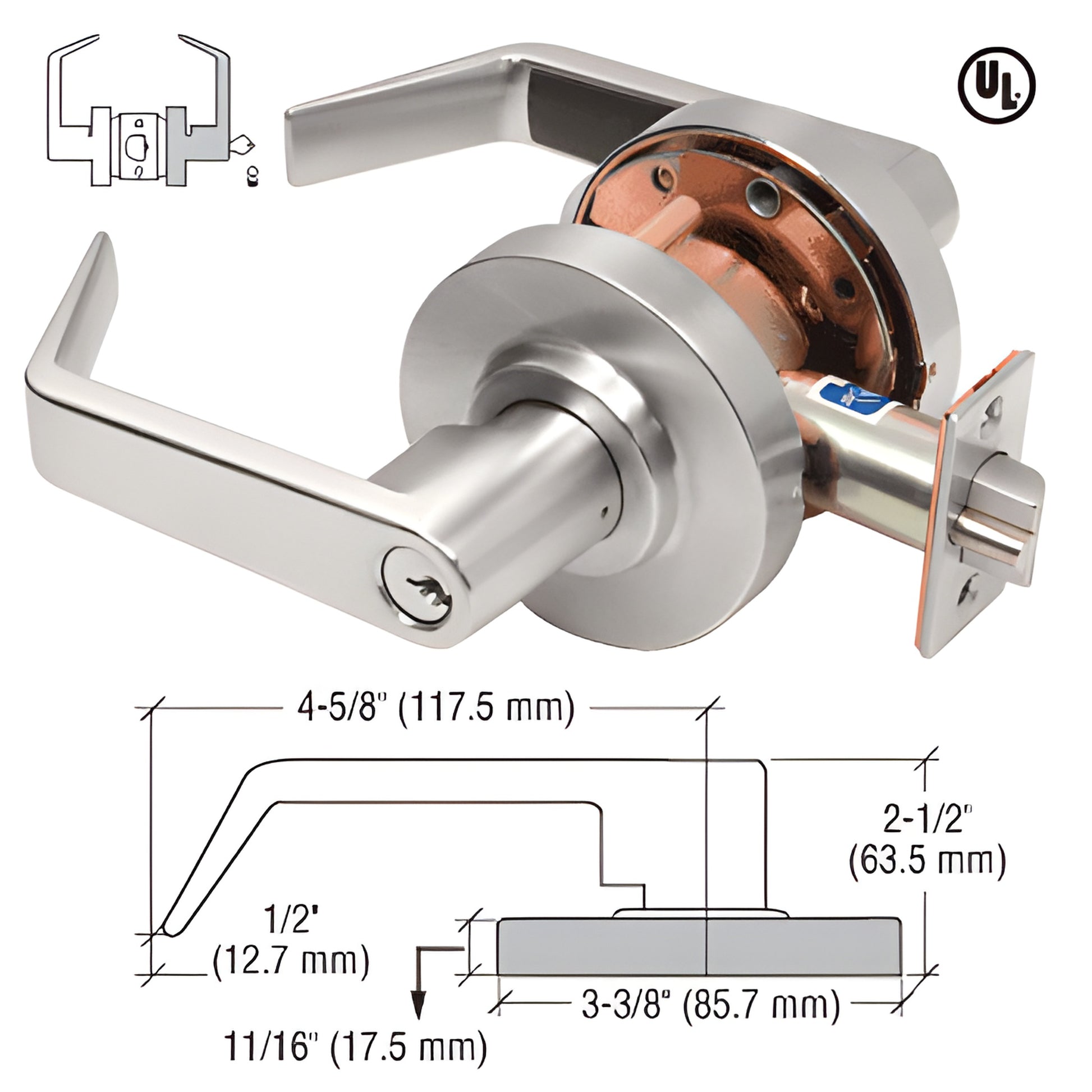

CRL Brushed Nickel Grade 1 Storeroom Lever Lockset (Schlage® 6-Pin)
CRL Brushed Nickel Grade 1 Storeroom Lever Lockset (Schlage® 6-Pin)
Regular price
$171.72 CAD
Regular price
Sale price
$171.72 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D80STRBN
Shipping Weight: 4.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Clutch Feature
Yes
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Nickel
Fire Rating Hour
3
Function
Storeroom
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
'C' 6-Pin
Operation Type
F86 Storeroom Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes
Overview
- Schlage® 'C' 6-Pin Keyway
- Clutch Feature (Grade 1)
- ANSI A156.2 Grade 1
- 3 Year Warranty
- UL Listed, 3‑hour fire rating
These CRL heavy‑duty commercial Grade 1 and 2 lever locksets are non‑handed and reversible. The built‑in clutch (Group 1) disengages the outer lever when the latch is locked to prevent latch failure from excessive torque—an important security differentiator for commercial door hardware and high‑traffic installations.
Fits door thicknesses 1‑3/8" to 1‑3/4" (35–45 mm) with a 2‑3/4" (70 mm) backset. Available with a Schlage® 'C' 6‑pin keyway or 7‑pin Small Format Interchangeable Core (SFIC). Includes ANSI 1‑1/4" x 4‑7/8" (32 x 124 mm) strike. UL Listed 3‑hour fire rating makes this an ideal choice for commercial buildings requiring code‑compliant, fire‑rated lever locksets.
STOREROOM FUNCTION: Outside lever always locked; key unlatches only. Inside lever always allows free egress—meets building egress and security needs for storerooms and utility rooms.
SKU: D80STRBN — heavy‑duty commercial lever lockset with storeroom function and clutch protection.
Order SKU D80STRBN today or contact CRL Customer Service for quotes and technical assistance.
