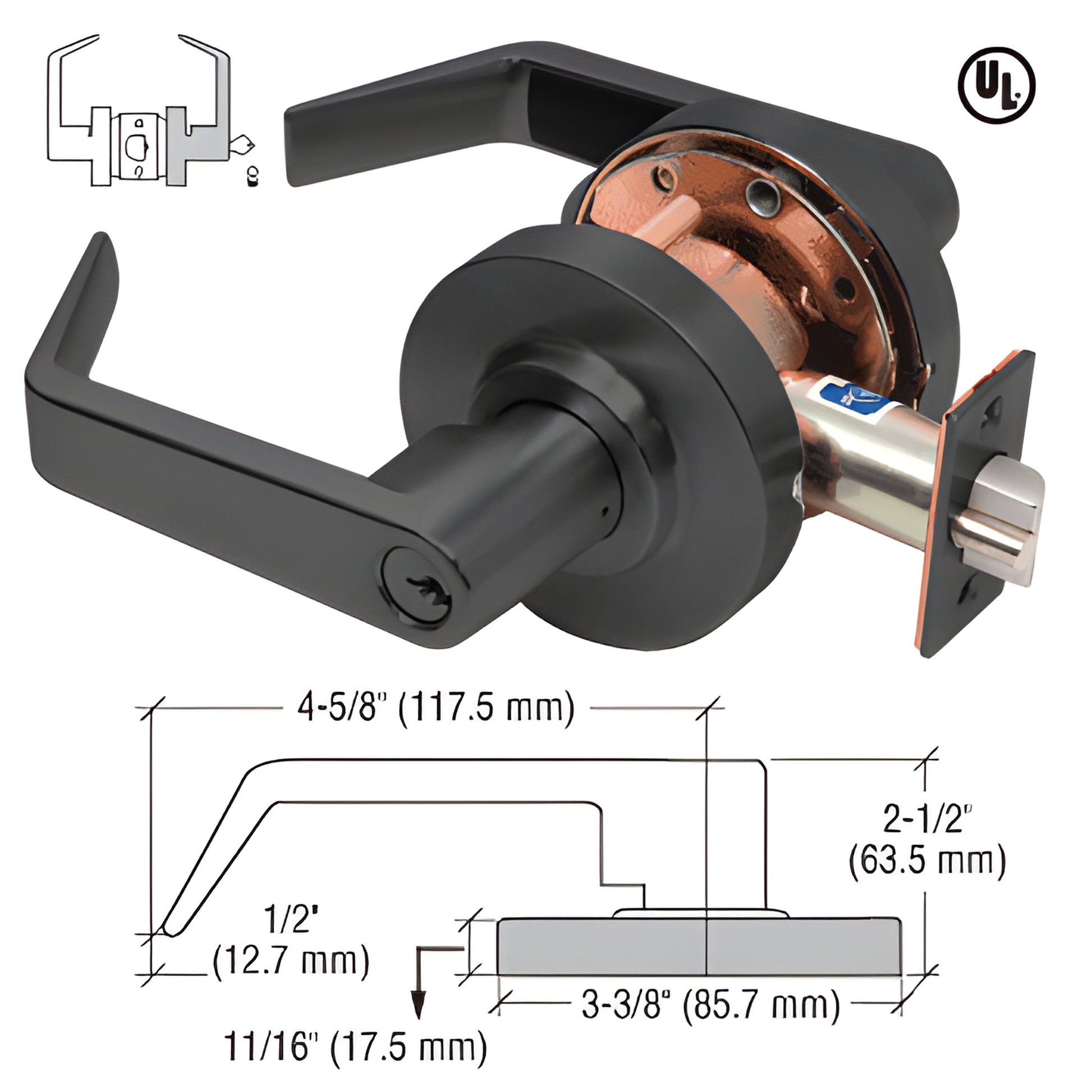

CRL Matte Black Grade 1 Storeroom Lever Lockset Schlage® 6-Pin
CRL Matte Black Grade 1 Storeroom Lever Lockset Schlage® 6-Pin
Regular price
$151.50 CAD
Regular price
Sale price
$151.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D80STRMBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Clutch Feature
Yes
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Matte Black
Fire Rating Hour
3
Function
Storeroom
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
'C' 6-Pin
Operation Type
F86 Storeroom Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes
Overview
- Schlage 'C' 6-Pin Keyway (option)
- Clutch Feature (Group 1) — anti-tamper outer lever disengages under excessive torque
- ANSI A156.2 Grade 1 heavy-duty commercial lever lockset
- 3‑hour fire-rated, UL Listed
Product: CRL Heavy‑Duty Commercial Grade 1 and 2 Lever Locksets (SKU: D80STRMBL). Non-handed, reversible storeroom lever lockset designed for commercial doors and high-traffic applications. The clutch feature prevents latch failure from forced torque on the outside lever, offering an added anti-tamper security advantage.
These lever locksets fit door thicknesses from 1-3/8" to 1-3/4" (35–45 mm) with a 2-3/4" (70 mm) backset. Available with a Schlage® 'C' 6‑pin keyway or 7‑pin Small Format Interchangeable Core (SFIC). Includes ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike.
STOREROOM FUNCTION DESCRIPTION: Outside lever always locked — key unlatches only. Inside lever always allows free egress. Suitable as a 3‑hour fire-rated storeroom lever for commercial, institutional, and multi-family installations.
Key benefits: commercial Grade 1 durability, 3‑hour UL fire rating, clutch anti‑tamper protection, reversible non‑handed design, Schlage® keyway or SFIC options.
Order SKU D80STRMBL today to secure a fire-rated, heavy-duty storeroom lever lockset for your commercial door needs.
