Product Details
- Custom Sized, Ships Knocked-Down
- Satin Anodized or Duranodic Bronze Anodized Finish
- Three Panels: Two Fixed, One Sliding
- Two Overhead Track Options

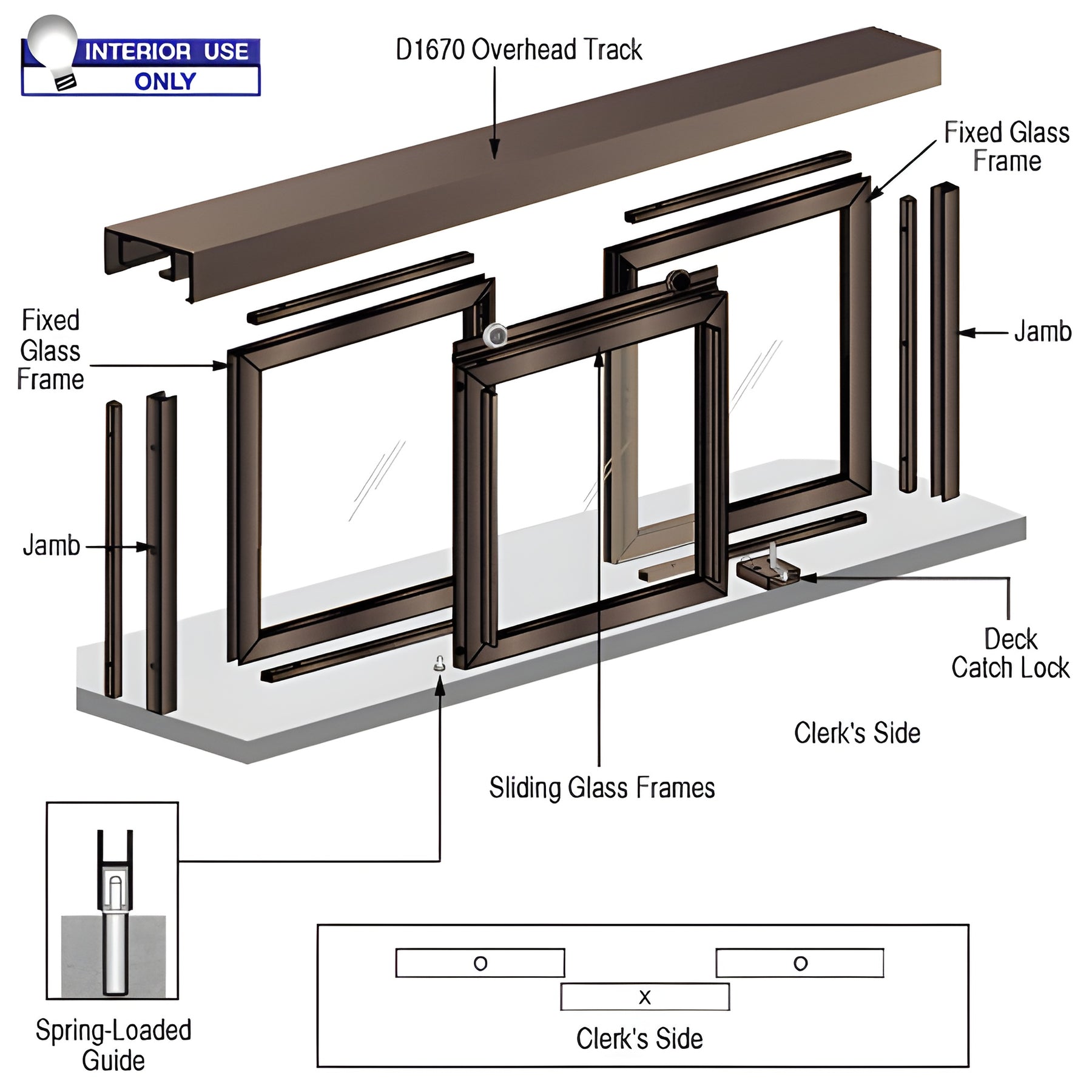

The CRL Barbara Model Pass-Thru Window is the most popular window of its type. Three equal panels (two end fixed and one central slider) give the benefit of an unobstructed counter surface and an easy rolling overhead track. Ideal for receptionist windows and typical office and pass-thru applications.
Different models are available with two types of headers: The standard D7 Overhead Track, or the D1670 overhead Track which matches 1-3/4" x 3" (44.5 x 76.2 mm) store front tube.
Suggested glass cutting formula for using CRL glazing vinyl is available in the installation guide. Recommended glass sizes are provided by CRL engineering for confirmed orders.
NOTE: These Horizontal Sliding Pass-Thru Assemblies are recommended for interior application only. Each assembly is sold without glass, and includes two kinds of glazing vinyl: for 3/16" (5 mm) or 1/4" (6 mm) glazing. All assemblies are ordered by the frame size, see installation guide for recommended deductions. Frame members are color coded to facilitate assembly and glazing.
Weight: Varies per custom size
Product Warning:
Maximum frame size 108" (2743 mm) W x 50" (1270 mm) H with three equal panels
