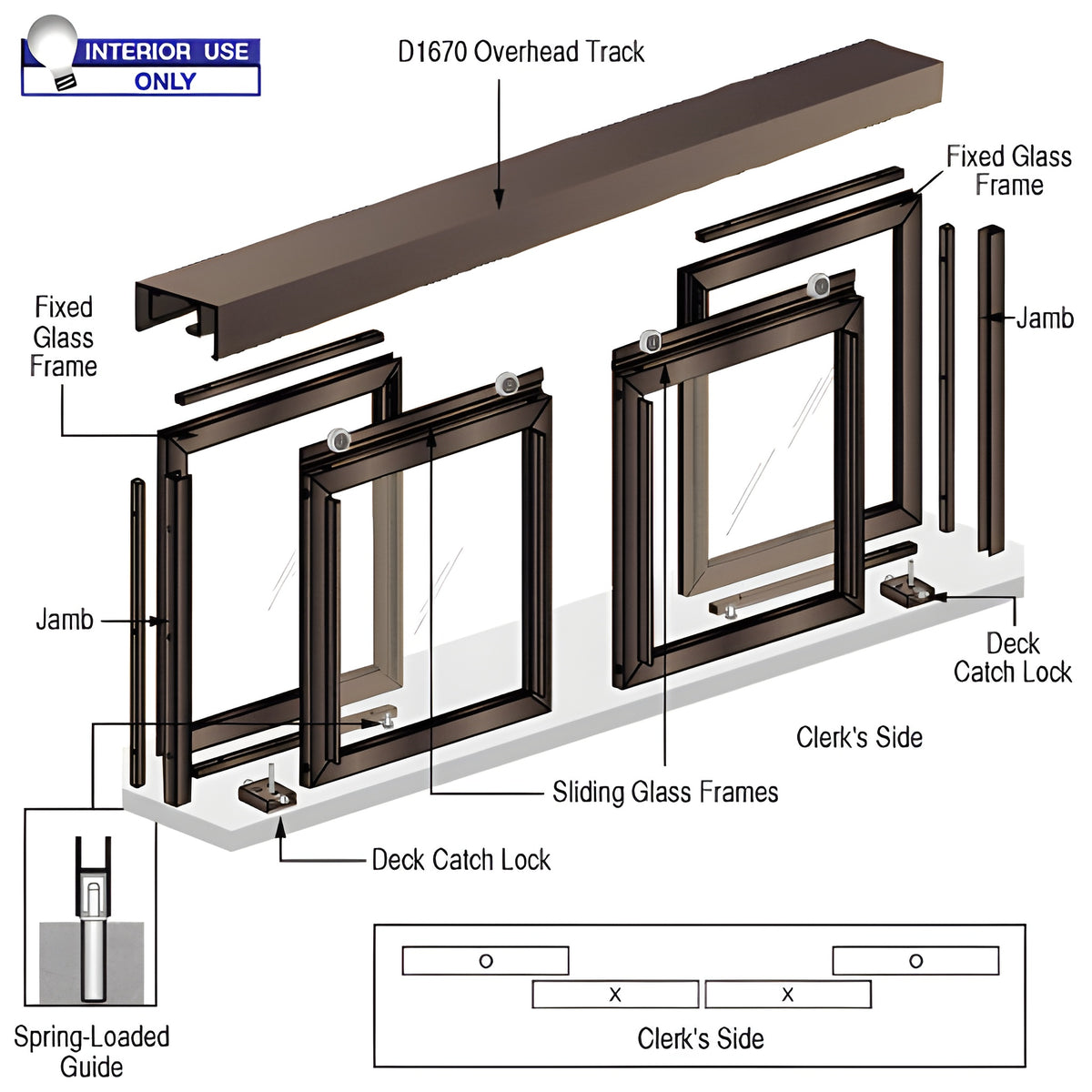

** CRL Horizontal Sliding Diane Model Pass-Thru Assembly With D1670 Header
** CRL Horizontal Sliding Diane Model Pass-Thru Assembly With D1670 Header
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D1032DU
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
OXXO
Finish/Color
Duranodic Bronze Anodized
Maximum Height
50 in. (1270 mm)
Maximum Width
144 in. (3657.6 mm)
Model
Diane
Overhead Track
D1670
Panel Designation
O = Fixed, X = Sliding
Panel Quantity
4
Usage
Interior
Overview
- Custom sized; ships knocked-down for economical freight
- Satin Anodized or Duranodic Bronze anodized finish

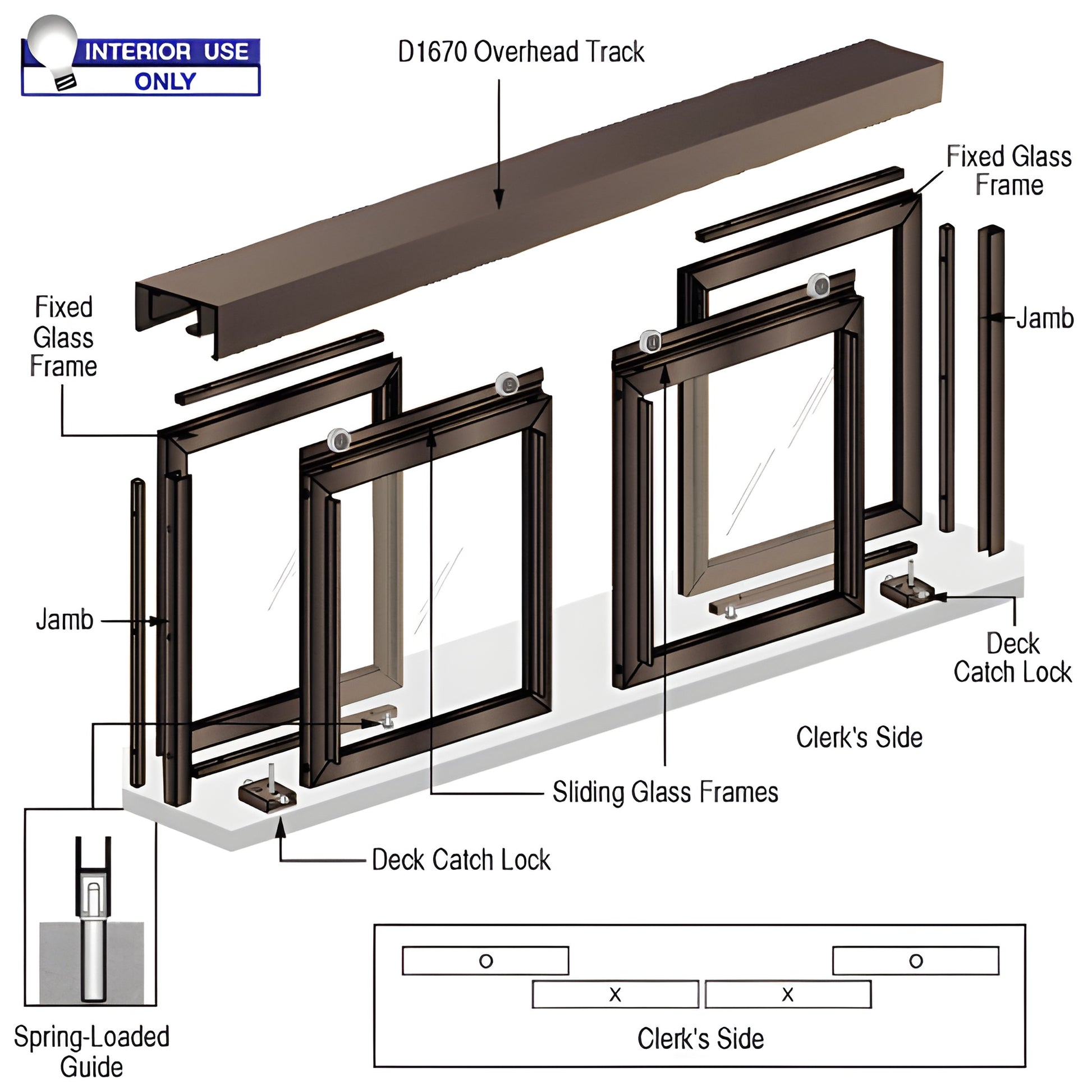

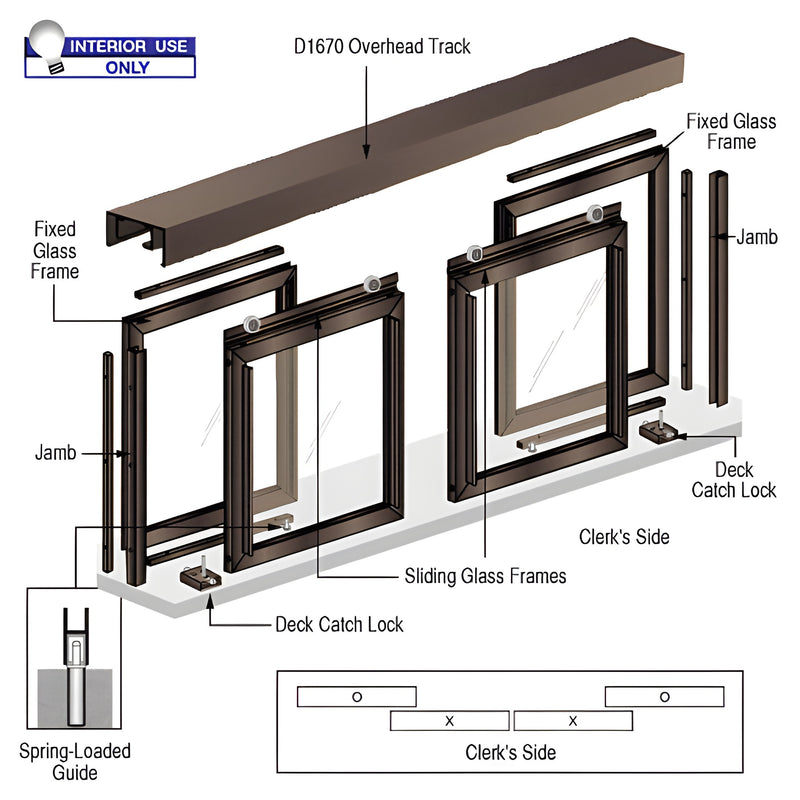

- Four panels: two fixed end panels and two central bi-parting sliding panels
- Two overhead track options: D7 standard or D1670 (matches 1-3/4" x 3" / 44.5 x 76.2 mm storefront tube)
The CRL Diane Model Pass-Thru Window is a popular horizontal sliding pass-thru window ideal for receptionist openings, interior office pass-throughs, and service counters. Its four equal panels provide an unobstructed counter surface and smooth rolling overhead track for easy operation.
Different models include two header choices: the standard D7 overhead track or the D1670 track that matches 1-3/4" x 3" (44.5 x 76.2 mm) storefront tube. Suggested glass cutting formulas for CRL glazing vinyl are in the installation guide; CRL engineering supplies recommended glass sizes for confirmed orders.
Key features and differentiators:
- Designed for interior use only — assemblies sold without glass
- Includes glazing vinyl for 3/16" (5 mm) and 1/4" (6 mm) glazing
- Frame members are color-coded to simplify assembly and glazing
- Ordered by frame size—see installation guide for recommended deductions
NOTE: These horizontal sliding pass-thru assemblies are intended for interior applications only. Maximum frame size: 144" (3658 mm) W x 50" (1270 mm) H.
Weight: Varies per custom size
SKU: D1032DU
Order the CRL Diane Model Pass-Thru Window for a durable, easy-to-install interior receptionist or office pass-through solution — contact sales to confirm sizes and finish options.
