Product Details
- Custom Sized, Ships Knocked-Down
- Satin Anodized or Dark Bronze Finish
- Three Panels: One Fixed, Two Sliding
- Order with or without Screen

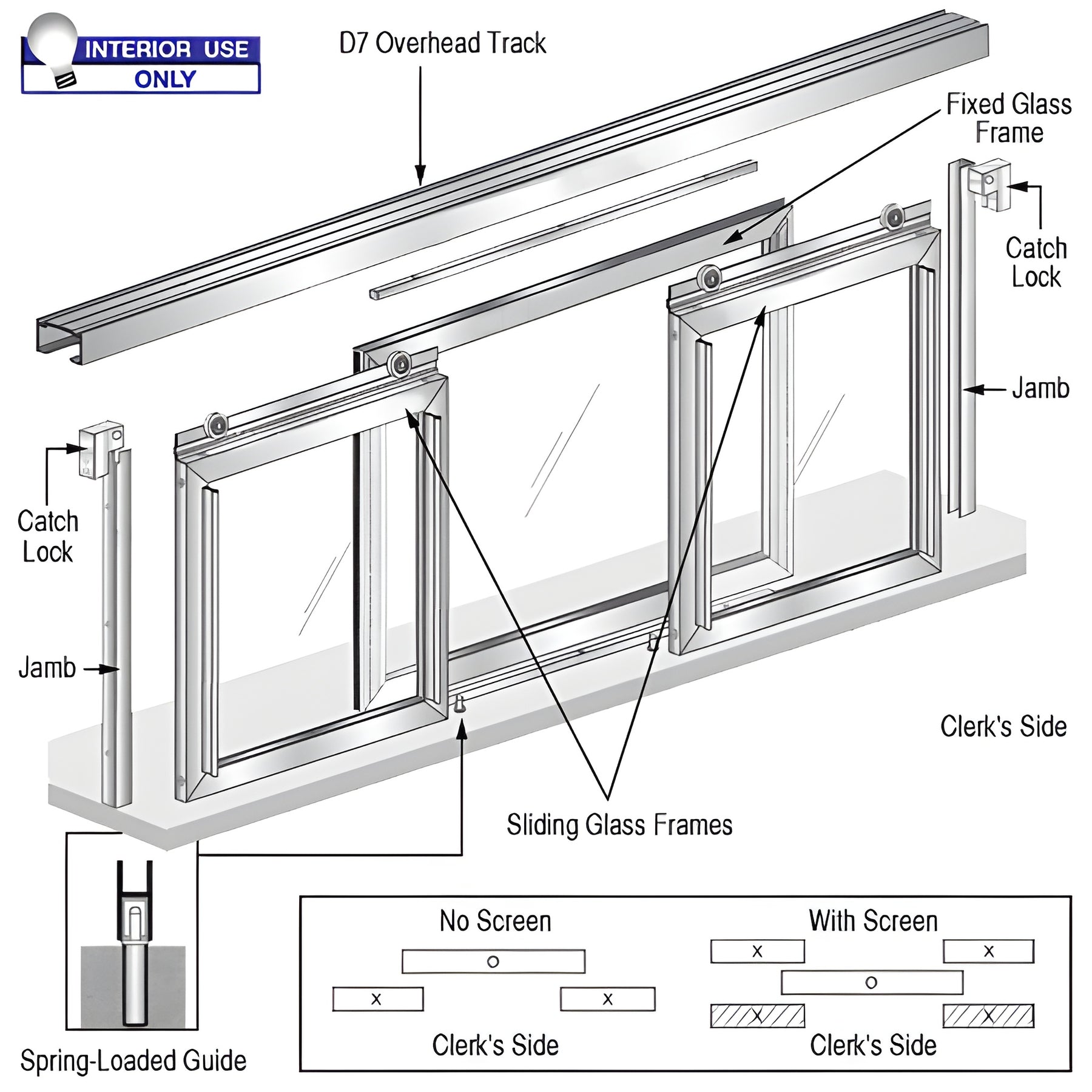

The CRL Fawn Model Pass-Thru Window is the most popular window of its type. Three panels (one large fixed and two smaller sliding ends) give the benefit of an unobstructed counter surface and an easy rolling overhead track. Ideal for receptionist windows and typical office and pass-thru applications.
Different models are available with two types of headers: The standard D7 Overhead Track, or the D1670 overhead Track which matches 1-3/4" x 3" (44.5 x 76.2 mm) store front tube. Different models are also available with or without screen.
Suggested glass cutting formula for using CRL glazing vinyl is available in the installation guide. Recommended glass sizes are provided by CRL engineering for confirmed orders.
NOTE: These Horizontal Sliding Pass-Thru Assemblies are recommended for interior application only. Each assembly is sold without glass, and includes two kinds of glazing vinyl: for 3/16" (5 mm) or 1/4" (6 mm) glazing. All assemblies are ordered by the frame size, see installation guide for recommended deductions. Frame members are color coded to facilitate assembly and glazing.
Weight: Varies per custom size
Product Warning:
Maximum frame size 144" (3658 mm) W x 50" (1270 mm) H
