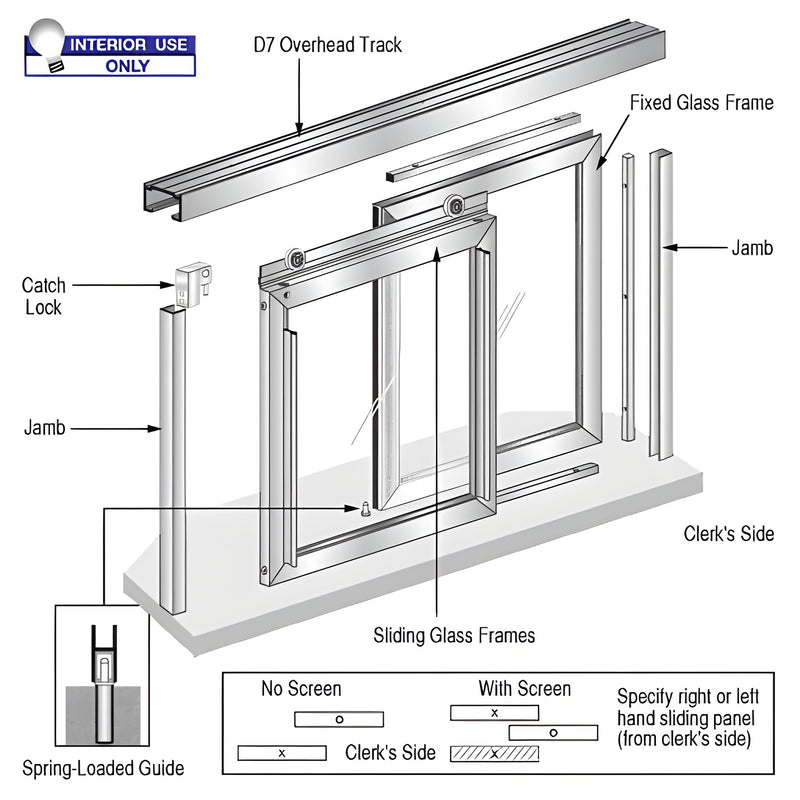

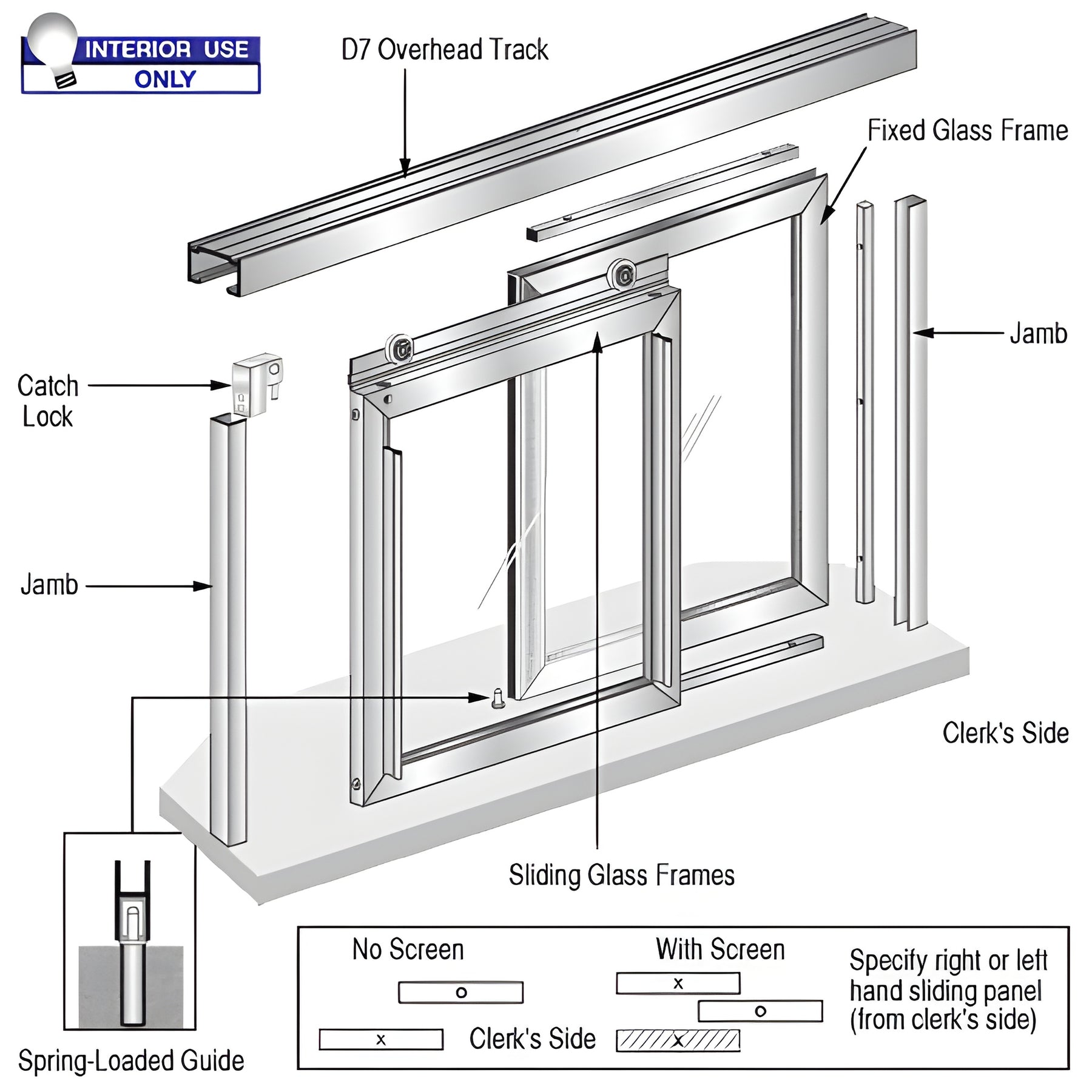

CRL Florence Horizontal Sliding Passthru Assembly D7 Header No Screen

• Custom sized; ships knocked-down
• Satin anodized or dark bronze finish
• Two panels: one fixed, one sliding

The CRL Florence Pass-Thru Window (SKU D1038A) is a popular horizontal sliding pass-thru window designed for receptionist counters, office pass-throughs, and interior service windows. Two equal panels—one fixed and one sliding on an easy-rolling overhead track—provide an unobstructed counter surface and smooth operation.

Different models are offered with two header choices: the standard D7 overhead track or the D1670 overhead track that matches 1-3/4" x 3" (44.5 x 76.2 mm) storefront tube. Models are available with or without screen. Suggested glass cutting formulas for CRL glazing vinyl appear in the installation guide; CRL engineering provides recommended glass sizes for confirmed orders.

Application: Interior use only. Each assembly is sold without glass and includes glazing vinyl for 3/16" (5 mm) or 1/4" (6 mm) glazing. Assemblies are ordered by frame size—see the installation guide for recommended deductions. Frame members are color-coded to streamline assembly and glazing.

Weight: Varies by custom size

Product Warning:

Maximum frame size: 72" (1829 mm) W x 50" (1270 mm) H with two equal panels

Order the CRL Florence Pass-Thru Window (D1038A) for a durable, easy-to-install interior sliding pass-through solution—contact CRL Customer Service to confirm sizes and options.
