CRL Horizontal Sliding Pass-Thru Window (Barbara) w/ D7 Header
Item# D1029A
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
OXO
Finish/Color
Satin Anodized
Maximum Height
50 in. (1270 mm)
Maximum Width
108 in. (2743.2 mm)
Model
Barbara
Overhead Track
D7
Panel Designation
O = Fixed, X = Sliding
Panel Quantity
3
Usage
Interior
- Custom sized, ships knocked-down for easy on-site assembly
- Available finishes: satin anodized or dark bronze
- Three equal panels: two fixed end panels and one center sliding panel for an unobstructed counter
- Two overhead track options: D7 standard or D1670 to match 1-3/4" x 3" storefront tube

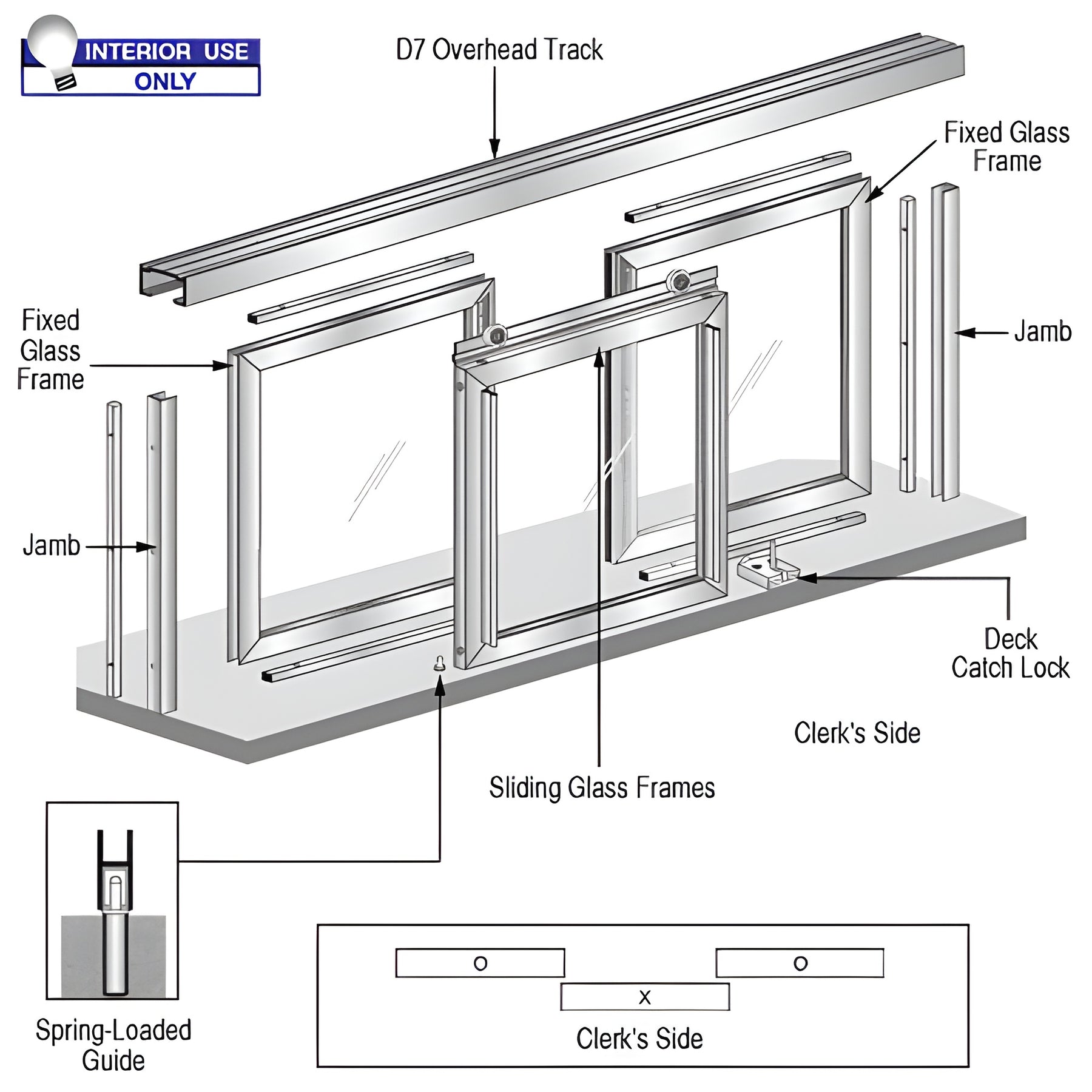

The CRL Barbara Model Pass-Thru Window (SKU: D1029A) is a popular horizontal sliding pass-thru window designed for receptionist counters, office pass-throughs, and interior service openings. The three-panel configuration provides an unobstructed counter surface and a smooth rolling overhead track for easy operation.
Different models are available with two header options: the standard D7 overhead track or the D1670 overhead track that matches 1-3/4" x 3" (44.5 x 76.2 mm) storefront tube.
Suggested glass cutting formulas for CRL glazing vinyl are provided in the installation guide. Recommended glass sizes are supplied by CRL engineering for confirmed orders.
NOTE: These horizontal sliding pass-thru assemblies are recommended for interior use only. Each assembly is sold without glass and includes glazing vinyl for 3/16" (5 mm) or 1/4" (6 mm) glass. Assemblies are ordered by frame size—see the installation guide for recommended deductions. Frame members are color coded to simplify assembly and glazing.
Weight: Varies per custom size
Product Warning:
Maximum frame size: 108" (2743 mm) W x 50" (1270 mm) H with three equal panels
Most shipping weights are approximate and have not been verified. If exact weight or shipping cost information is required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images are representative; actual colors can vary depending on your monitor settings.
Order the CRL Barbara Model Pass-Thru Window (SKU: D1029A) for a durable, easy-to-install interior receptionist or office pass-through solution—contact CRL Customer Service to confirm glass sizes and shipping details.
