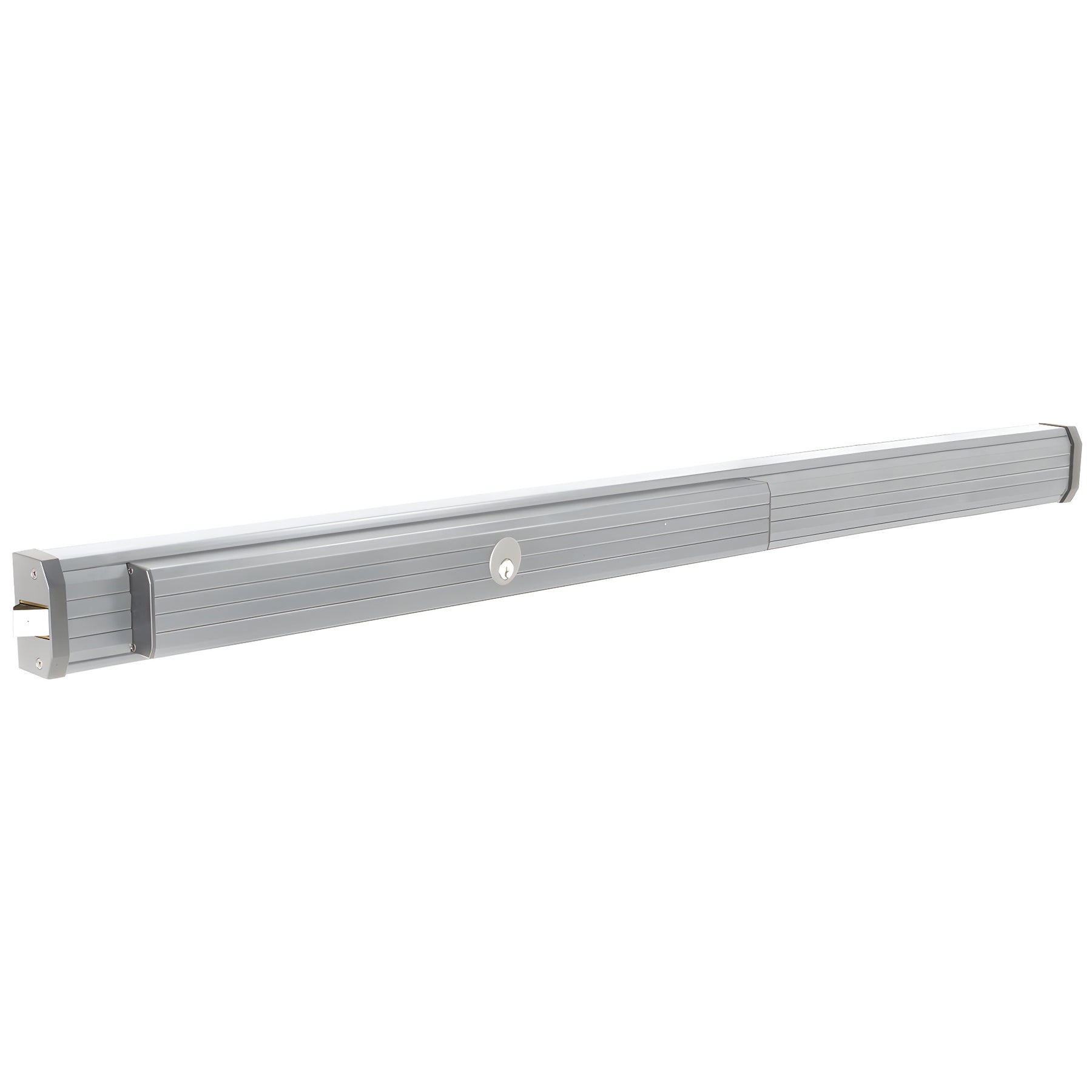

CRL Jackson® 1295 Push Pad Rim Panic Exit Device - 'S' Type Strike, 48", Satin Aluminum with Cylinder Dogging

Buy More, Save More!

Product quantity	Discount
Buy 3	2% off
Buy 5	4% off
Buy 10	6% off
Buy 15	8% off
Buy 20	10% off

Overview

SKU	311295CS4628
Pack Size	1
Brand	Jackson
Certification	ANSI/BHMA 156.3
Door Thickness	1-3/4 in. (44.5 mm)
Door Width	48 in. (1219.2 mm)
Finish/Color:	Aluminum
Handing	Non Handed
Includes	Mounting Hardware
Material - End Cap	Aluminum
Material - Housing	Aluminum
Material - Latch & Strike	Sintered Steel
Material - Mechanical Components	Stainless and Hardened Plated Steel
Minimum Stile Width	1-3/4 in. (44.5 mm)
Model	1295
Panic Bar Base Height	3-3/16 in. (81 mm)
Panic Bar Projection	2-7/8 in. (73 mm)
Panic Bar Width Net	46-1/2 in. (1181.1 mm)
Panic Dogging	Standard Hex Key Dogging
Panic Type	Rim
Push Pad Width	24 in. (609.6 mm)
Recommended Door Type	Aluminum, Wood, Hollow Metal
Series	1200
UL Listed	Yes

Description

Product Details

Designed for Use with Narrow, Medium or Wide Stile Aluminum, Wood or Hollow Metal Doors
Cylinder Dogging
DC7205SCKDSC
DC7205SCKASC
1CHSA
1C01
302630628

The sleek, contemporary CRL Jackson® 1295 Series Rim Panic Exit Deviceis designed for use with narrow stile aluminum, hollow metal or wood single doors, or paired doors when used with the 896 removable mullion. Sized for 48" standard openings, but may be trimmed for narrower conditions.
