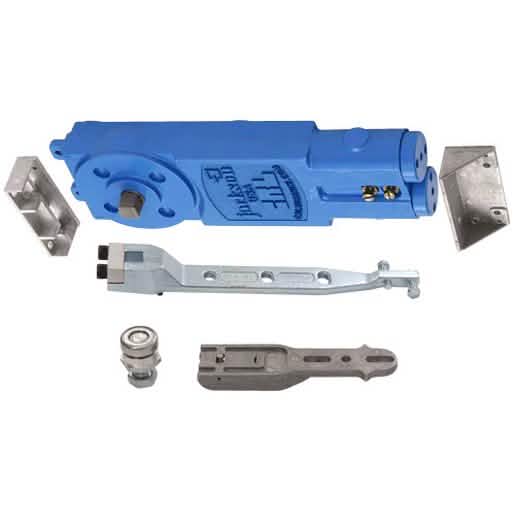

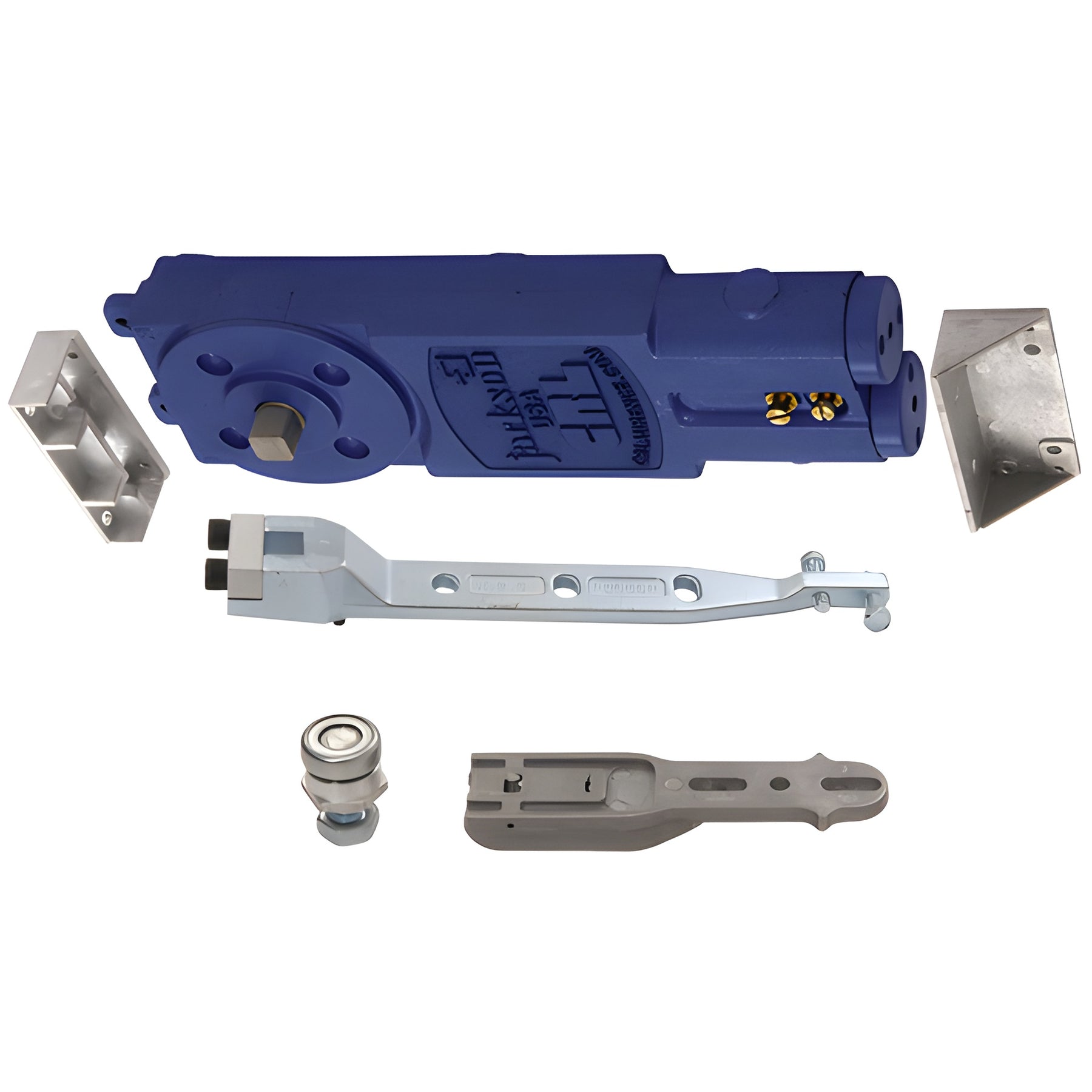

CRL Jackson 105° Concealed Door Closer, Adj., No Hold-Open, 1" Rail
CRL Jackson 105° Concealed Door Closer, Adj., No Hold-Open, 1" Rail
Regular price
$414.67 CAD
Regular price
Sale price
$414.67 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21101A17
Shipping Weight: 11.11 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.11 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Threshold Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
20101M17, 20640, 202000, 20728
Material
Aluminum
Maximum Door Weight
250
No Hold Open
105°
Package Type
End Load A
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
ELB2, ELS1
Similar
CRL8772A
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide to meet A.D.A. opening force requirements
- Threshold-mounted pivot for 1" (25 mm) deep bottom rail
- 5 Year Limited Warranty
- UL Listed

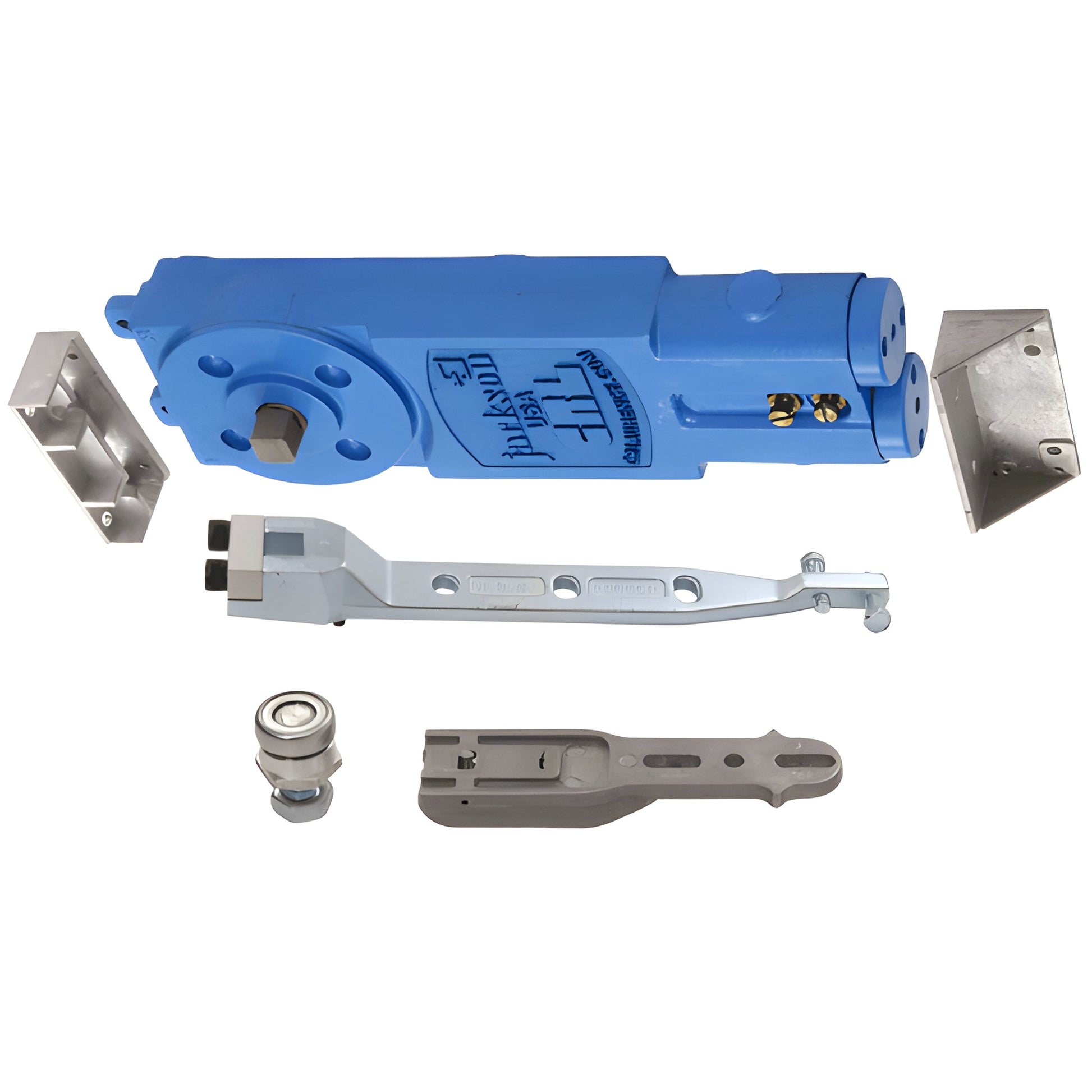

This CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer (SKU: 21101A17) is designed for A.D.A. barrier-free applications and installs as a concealed overhead closer with a threshold pivot. The closer is adjustable from Size 1 (Barrier-Free) through Size 4 (Regular), allowing installers to set spring power to meet A.D.A. opening force requirements while still providing reliable door control for a wide range of commercial doors and storefront entries. Its concealed overhead design and threshold-mounted pivot make it a versatile choice for ADA-compliant entrances, retail storefronts, and high-traffic commercial doors.
A.D.A. NOTE: Although the adjustable spring power closer can be set to compensate for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force limits.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent damage to the door closer and entry due to over-extension of maximum allowable door swing.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and fully close the door due to varying site conditions and door size.
Looking for an ADA-compliant, concealed overhead door closer with adjustable spring power and threshold pivot? Order SKU 21101A17 or contact our sales team for installation guidance.
