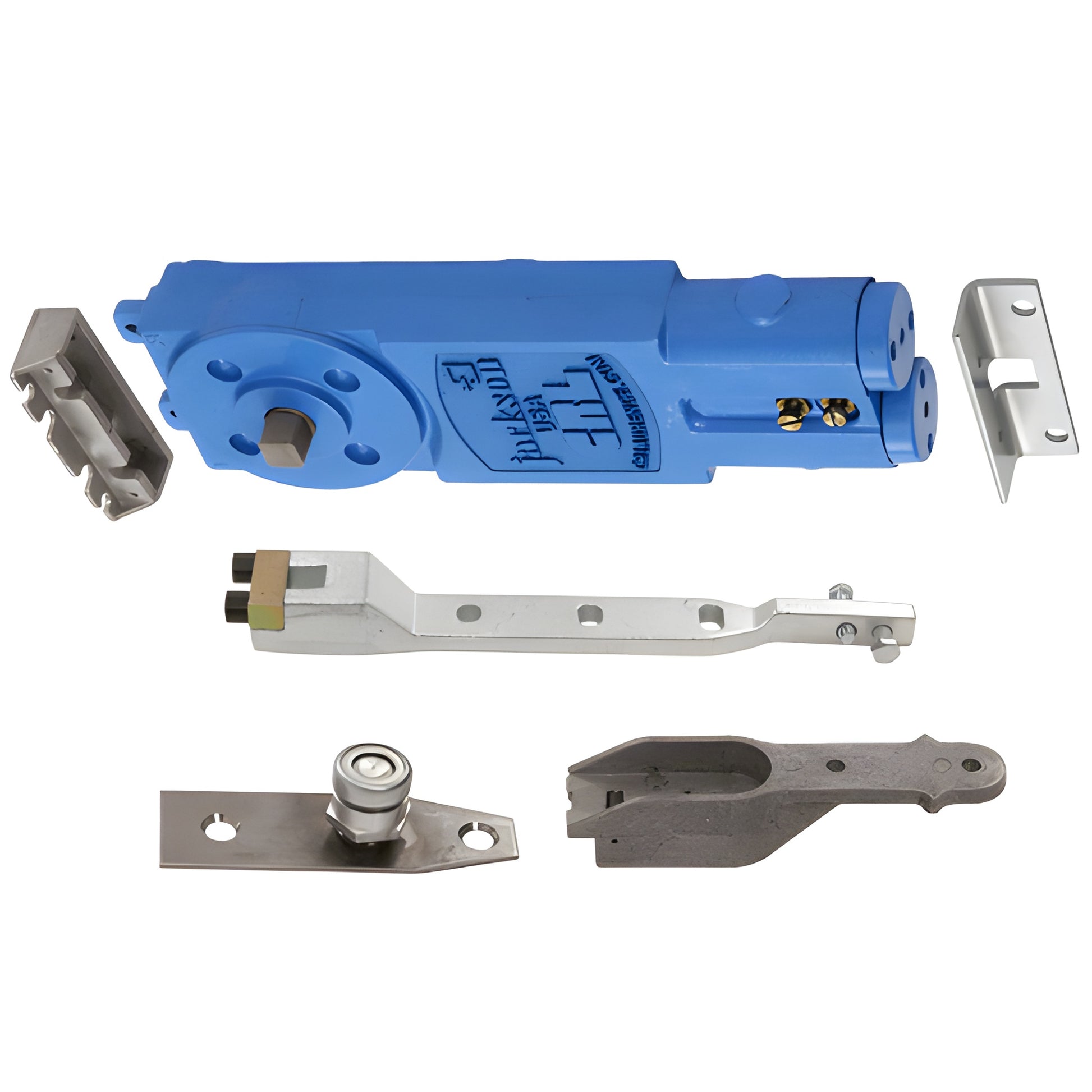

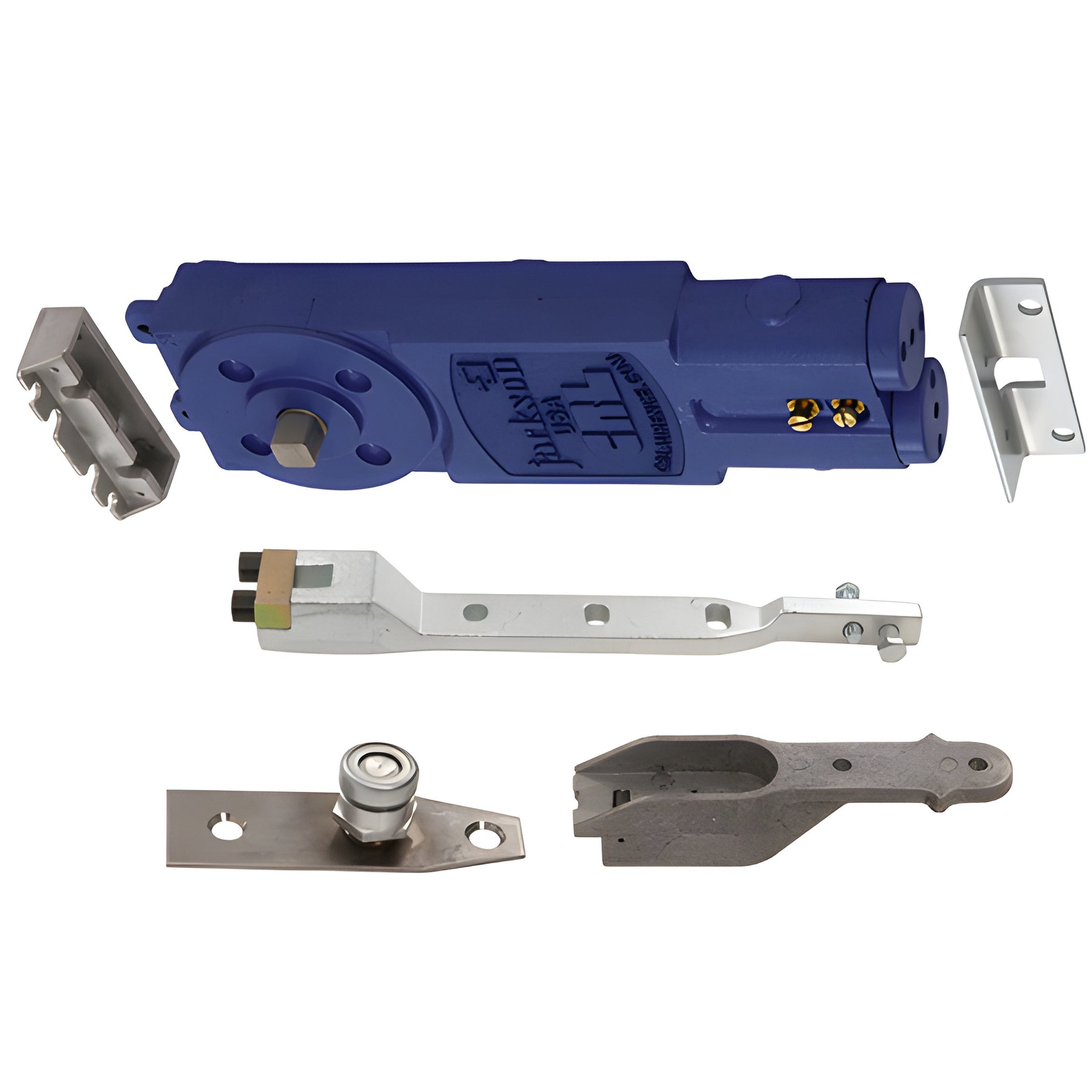

CRL Jackson® 105° Adjustable Concealed Door Closer, No Hold Open
CRL Jackson® 105° Adjustable Concealed Door Closer, No Hold Open
Regular price
$424.62 CAD
Regular price
Sale price
$424.62 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21101AP17
Shipping Weight: 11.11 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.11 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-9/16
Bottom Pivot Type
Floor Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
20101M17, 20219, 202000, 201060
Material
Aluminum
Maximum Door Weight
250
No Hold Open
105°
Package Type
End Load AP
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
ELB2, ELS1
Similar
CRL8772A, 21101A17
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide to meet A.D.A. opening force requirements
- Floor-mounted pivot for 1-9/16" (40 mm) deep bottom rail
- 5 Year Limited Warranty
- UL Listed
CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer (SKU: 21101AP17) — an adjustable, overhead concealed door closer designed for A.D.A. barrier-free applications. Adjustable from Size 1 (Barrier-Free) through Size 4 (Regular) so you can set spring power to meet A.D.A. opening-force limits while still providing reliable door control across a wide range of door types and sizes. Ideal when you need a versatile, ADA-compliant door closer that preserves aesthetics with a concealed design.
A.D.A. NOTE: While the spring power is adjustable to compensate for site conditions, adequate closing force may not be achievable in all installations when also meeting A.D.A. opening force requirements.
Installation NOTE: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of the maximum allowable door swing.
Product Warning: Closers set to comply with A.D.A. specified opening forces might not provide sufficient spring power to control and close the door under certain site conditions or with larger door sizes.
Choose this concealed overhead door closer for ADA-compliant, adjustable spring power and a clean, concealed appearance. Order SKU 21101AP17 or contact us for application assistance.
