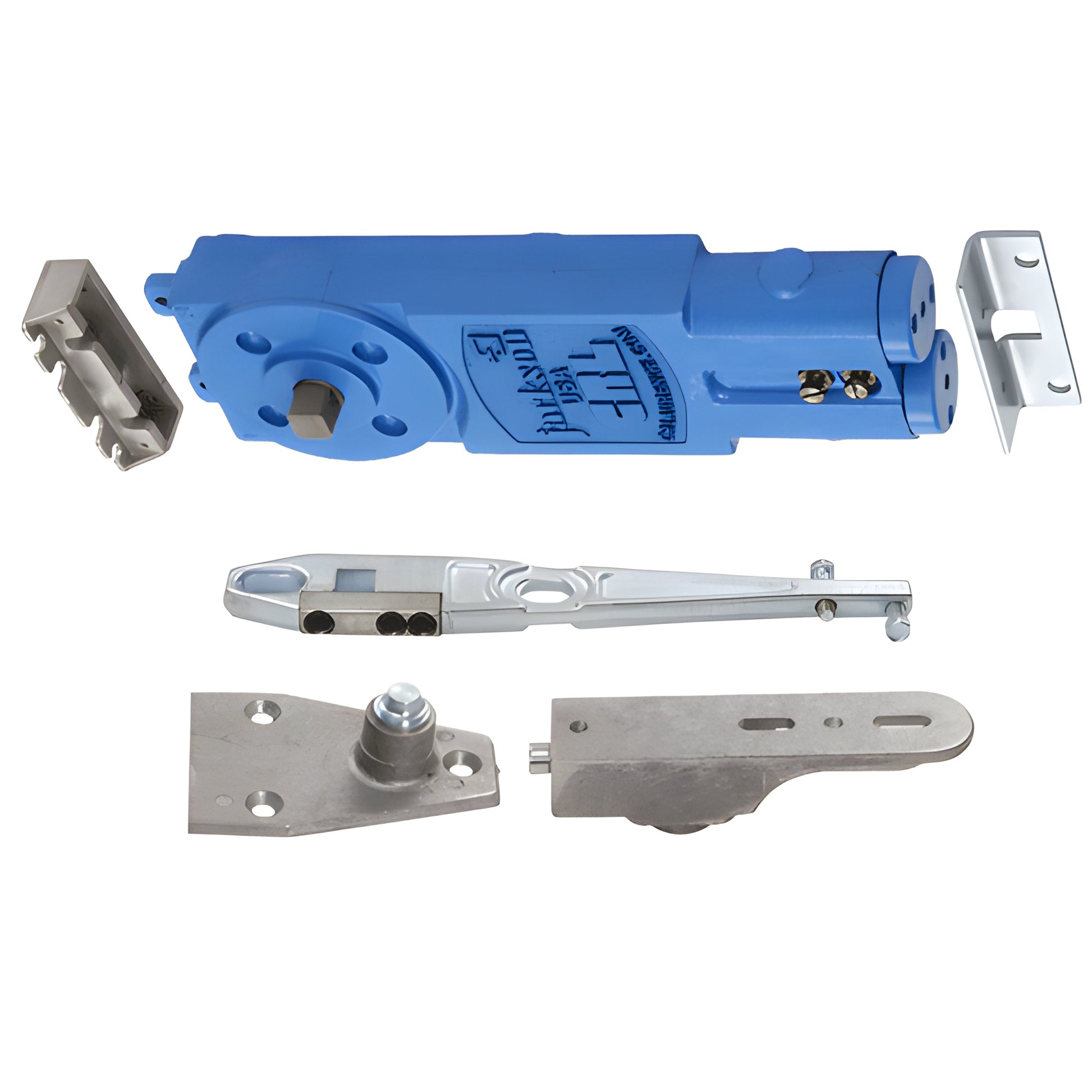

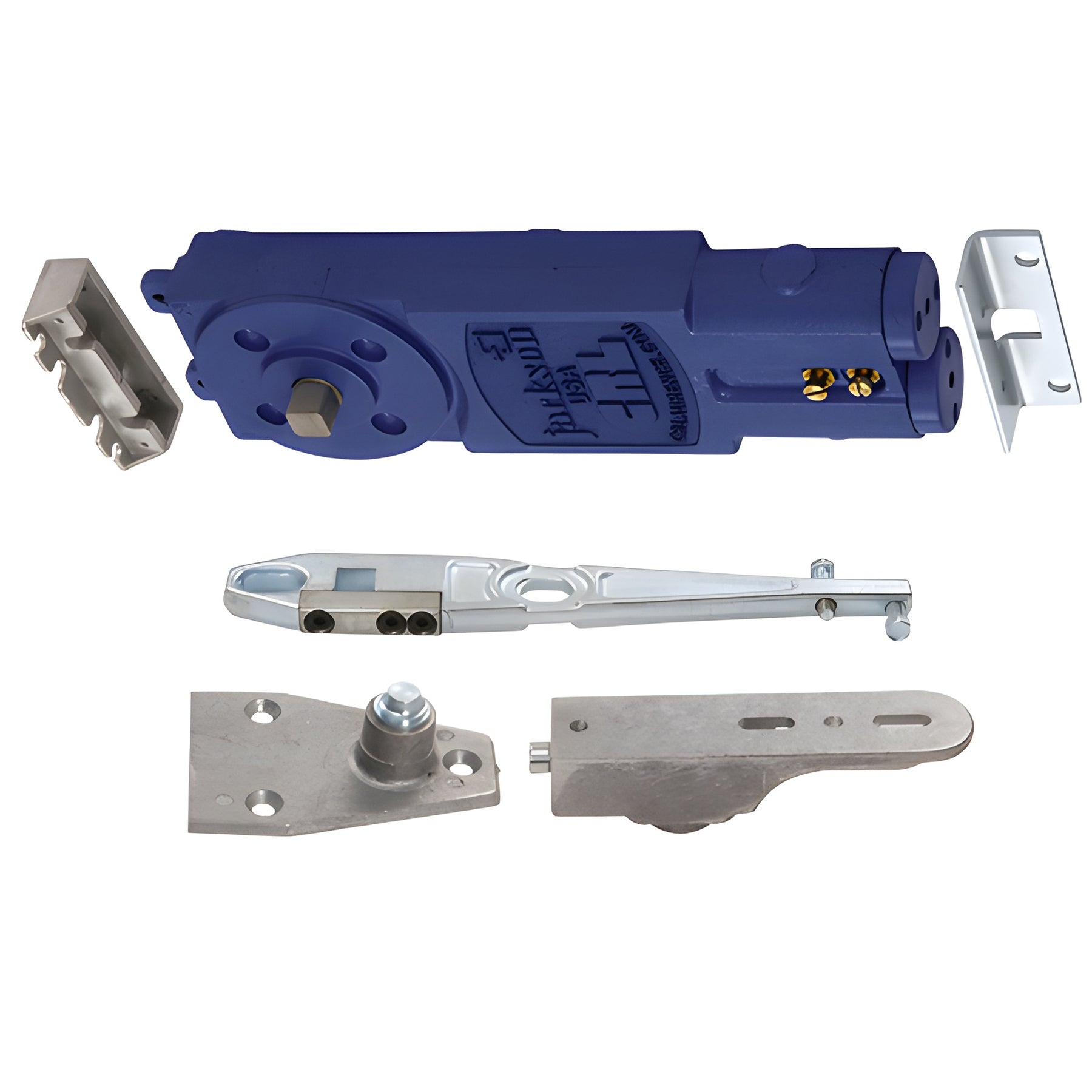

CRL Jackson® 105° Adjustable Overhead Concealed Door Closer — No Hold Open, S Hardware
CRL Jackson® 105° Adjustable Overhead Concealed Door Closer — No Hold Open, S Hardware
Regular price
$423.18 CAD
Regular price
Sale price
$423.18 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21101S17
Shipping Weight: 10.9 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.9 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Floor Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
20101M017, 20219, 20400B, 20902
Material
Aluminum
Maximum Door Weight
250
No Hold Open
105°
Package Type
Side Load S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20190628, 20190313, 20510, HMC035, DCHSAS, CRL8010SCP, SLB3, SLS1
Similar
21101GE17, 21101U17
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide to meet A.D.A. opening force requirements
- Floor-mounted pivot for 1-1/2" (38 mm) deep bottom rail
- 3/16" (5 mm) height adjustment
- UL Listed
- 5 Year Limited Warranty
CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer (SKU: 21101S17) is designed for A.D.A. barrier-free applications. This overhead concealed door closer features an adjustable spring range from Size 1 (Barrier-Free) through Size 4 (Regular), letting you set spring power to comply with A.D.A. opening force limits while providing reliable door control across a wide range of door types and sizes. Its floor-mounted pivot and compatibility with 1-1/2" deep bottom rails make it a versatile choice for retrofit and new-construction projects requiring an ADA door closer or concealed overhead closer.
A.D.A. NOTE: Although the adjustable spring power can be tuned for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage from over-extension of maximum allowable door swing.
Product Warning: Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
For assistance selecting the right ADA-compliant concealed overhead door closer for your project, contact CRL Customer Service or add SKU 21101S17 to your cart to check availability.
