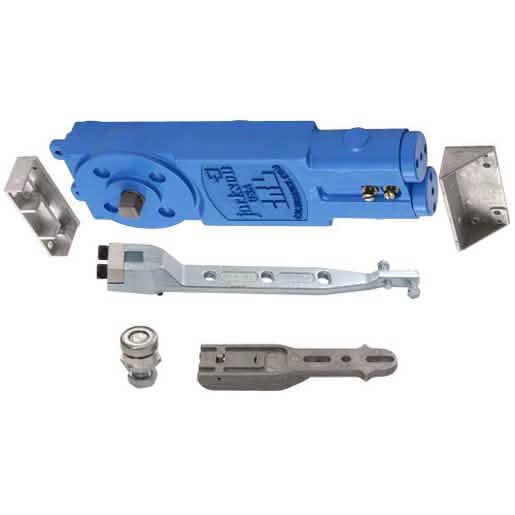

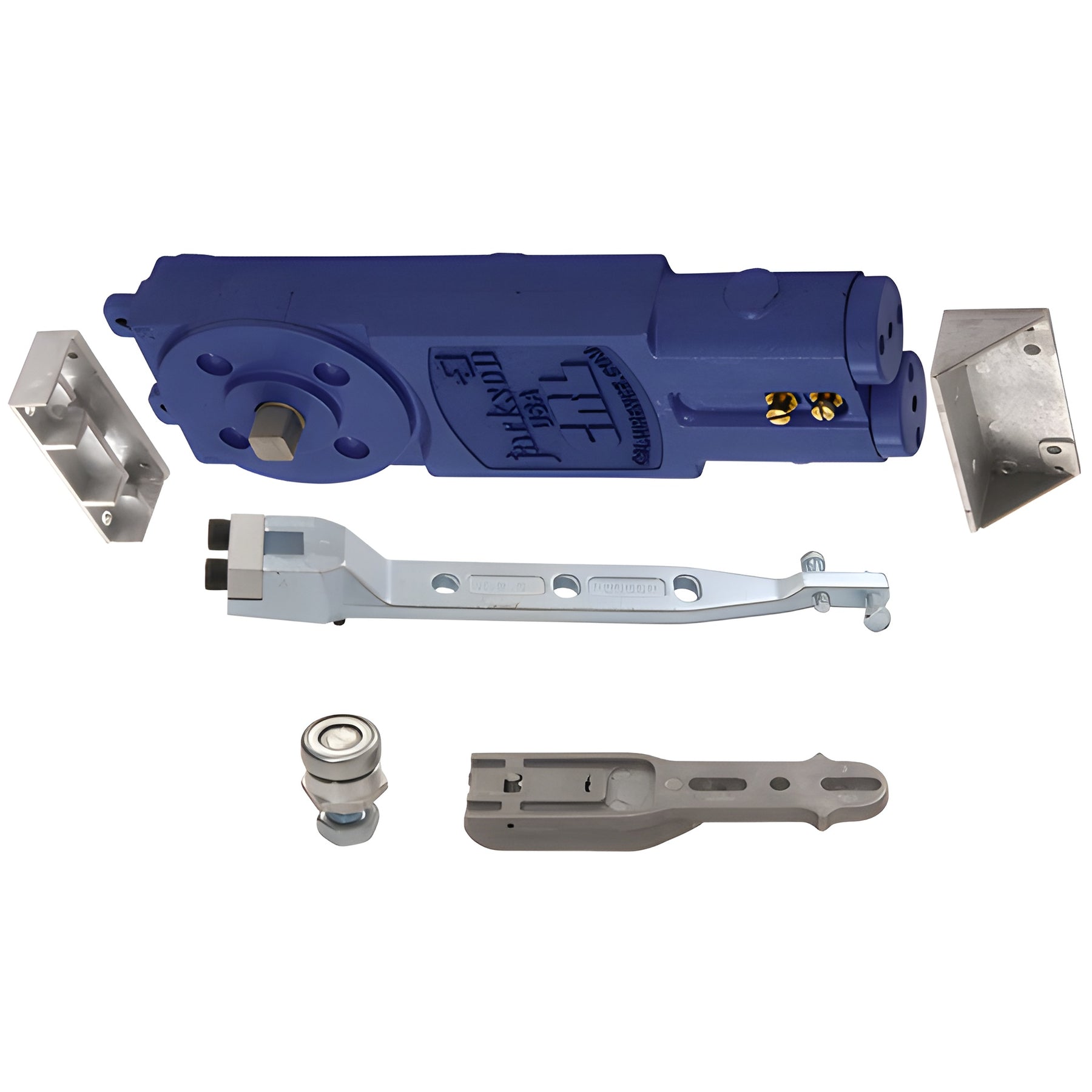

CRL Jackson® Adjustable 90° Hold-Open Concealed Closer for 1" Rail
CRL Jackson® Adjustable 90° Hold-Open Concealed Closer for 1" Rail
Regular price
$414.67 CAD
Regular price
Sale price
$414.67 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21101A20
Shipping Weight: 11.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Threshold Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
90°
Includes
20101M20, 20640, 202000, 20728
Material
Aluminum
Maximum Door Weight
250
Package Type
End Load A
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
ELB2, ELS1
Similar
CRL8760A
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide to meet A.D.A. opening force requirements
- Threshold-mounted pivot for 1" (25 mm) deep bottom rail
- 5 Year Limited Warranty
- UL Listed

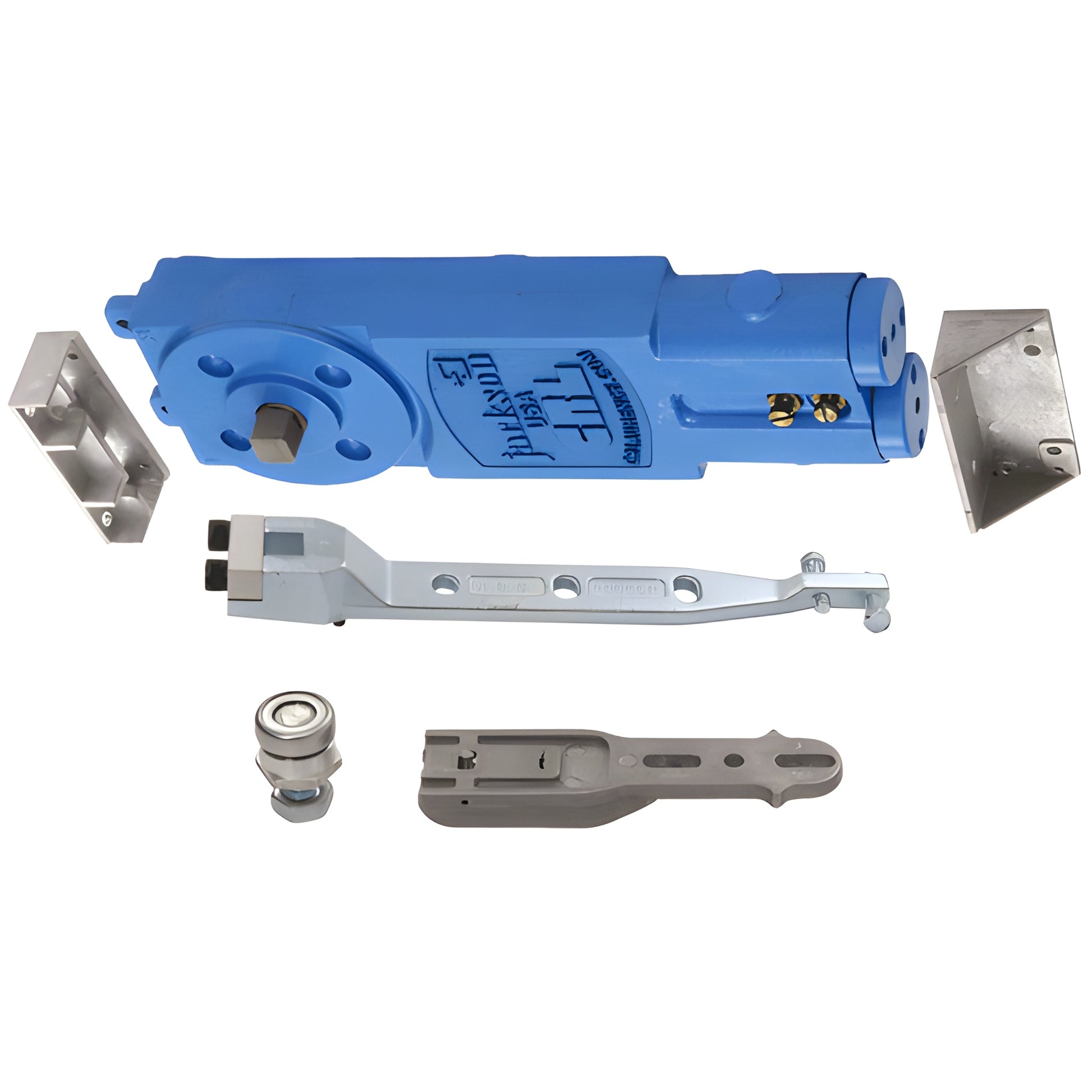

This CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer (SKU: 21101A20) is engineered for A.D.A. barrier-free applications and offers adjustable spring power settings from size 1 (barrier-free) through size 4 (regular). The adjustable range enables compliance with A.D.A. opening force limits while providing reliable door control across a wide range of commercial and institutional door types and sizes — making it a versatile choice for ADA-compliant entrances and retrofit projects.
A.D.A. NOTE: Although the adjustable spring power can be set to compensate for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.
NOTE: Install an auxiliary floor or overhead door stop to prevent possible damage to the door closer and entryway from over‑extension of maximum door swing.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Looking for reliable ADA-compliant concealed door closers? Order SKU 21101A20 or contact us for sizing and installation guidance.
