Product Details
- Suitable for Doors from 30" to 48" (762 mm to 1.22 m) Wide to Meet A.D.A. Opening Force Requirements
- Threshold Mounted Pivot for 1-1/2" (38 mm) Deep Bottom Rail
- 3/16" (5 mm) Height Adjustment
- UL Listed
- 5 Year Limited Warranty

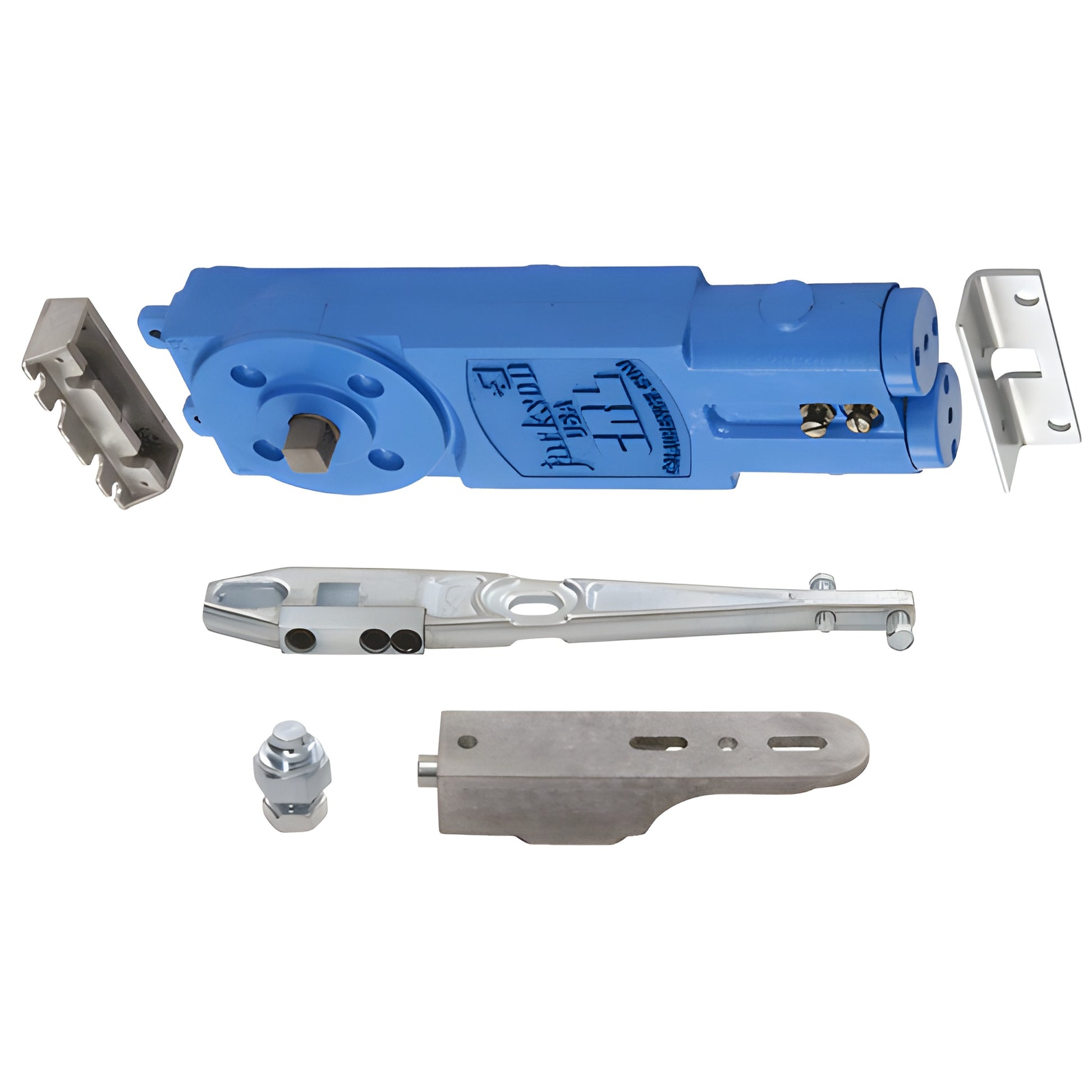

This CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer is available for A.D.A Barrier-Free applications. The Door Closer is adjustable in a range of Sizes from 1 (Barrier-Free) through 4 (Regular), allowing the spring power to be set for A.D.A. handicap barrier-free opening force requirements, as well as provide door control for a wide range of door types and sizes. This should make it your #1 choice for versatility and adaptability in a range of conditions.
A.D.A. NOTE: Although the Adjustable Spring Power Door Closer can be adjusted to compensate for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.

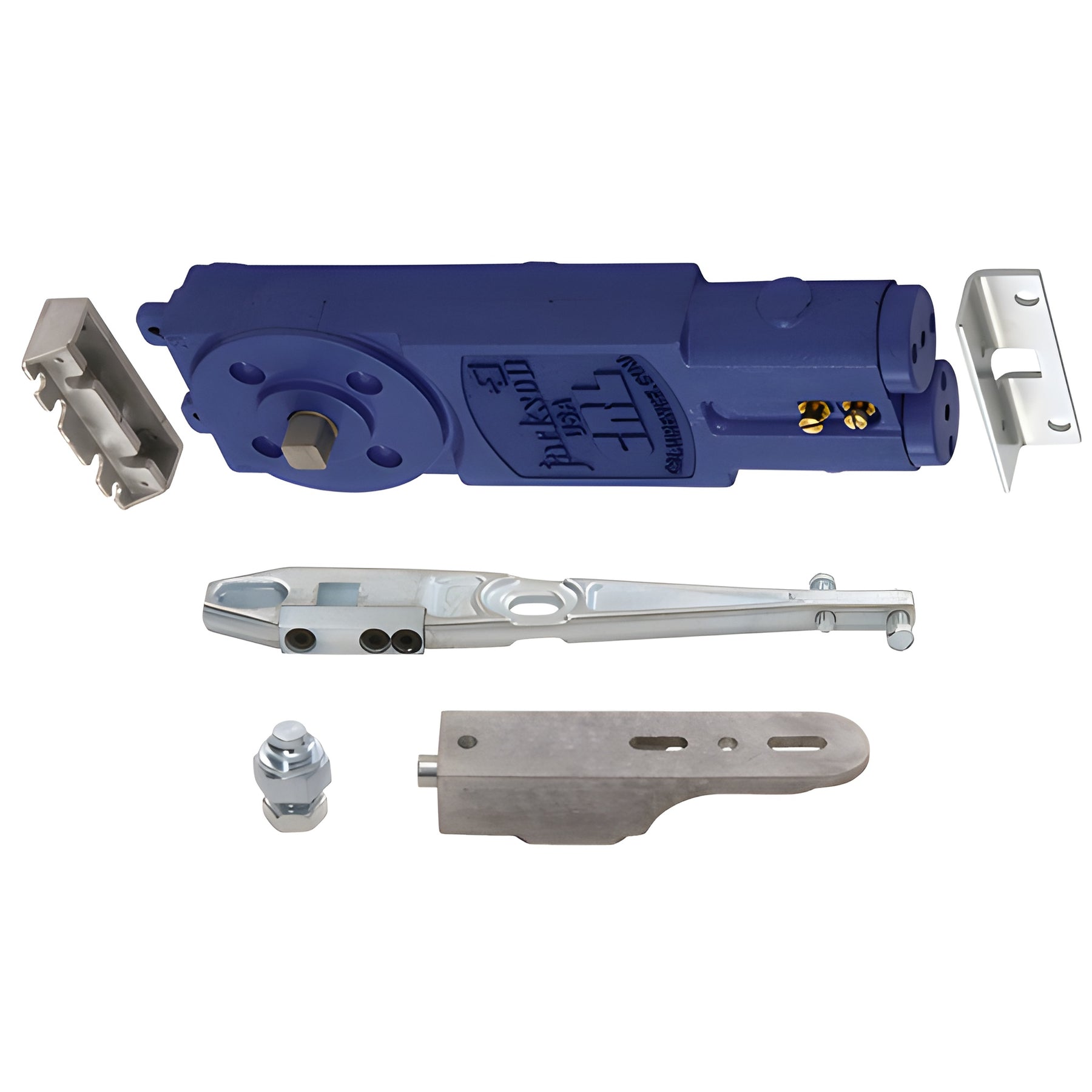

The "GE" Package, consisting of: CRL8010FS Standard Mounting Clips, CRL8010S Side Load Arm Assembly and CRL8010GE Bottom Pivot, is intended for new door installations with 1/2" (12.7 mm) deep top rail and side-load applications. This closer will also retrofit existing Jackson® and similar style fixed-size closer installations.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
