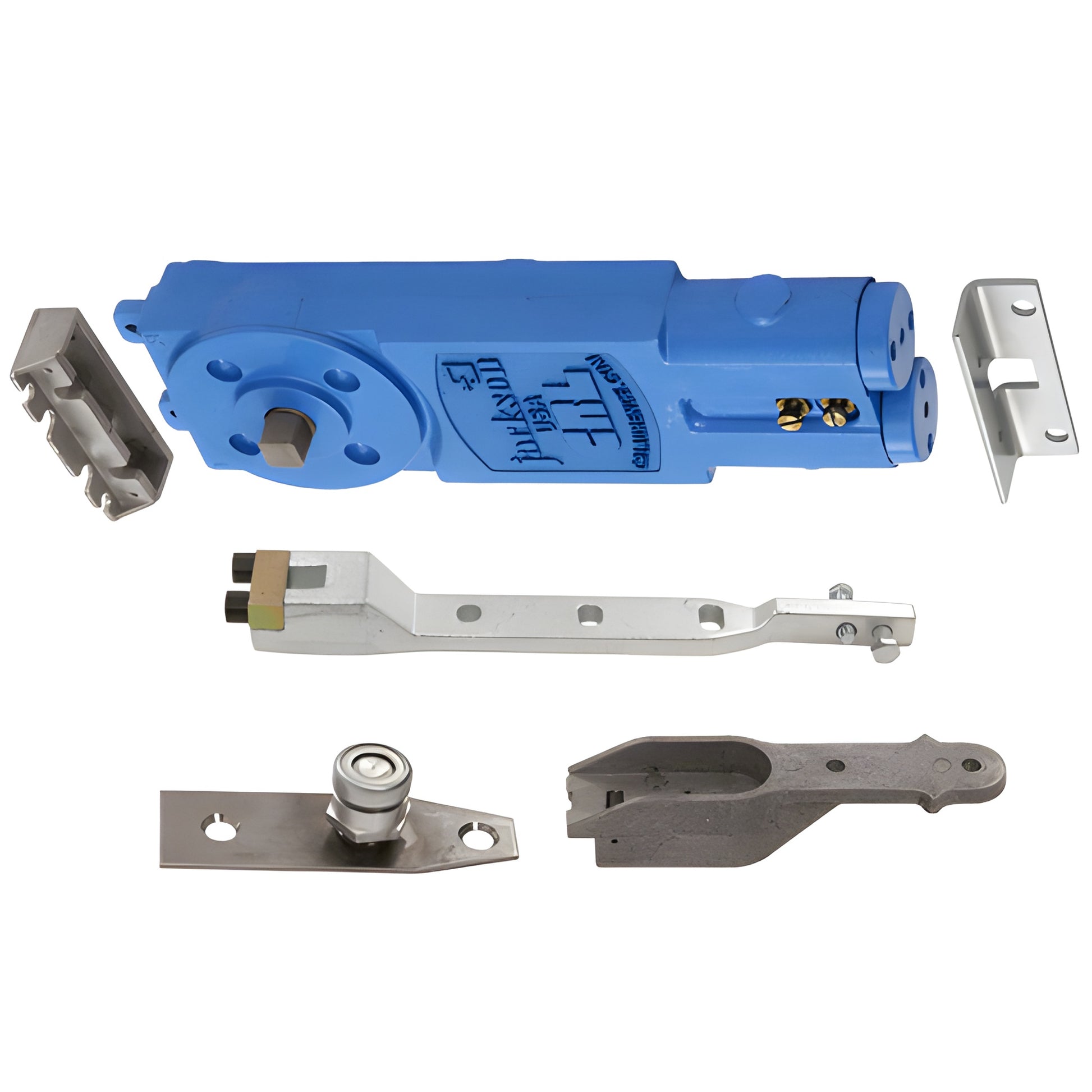

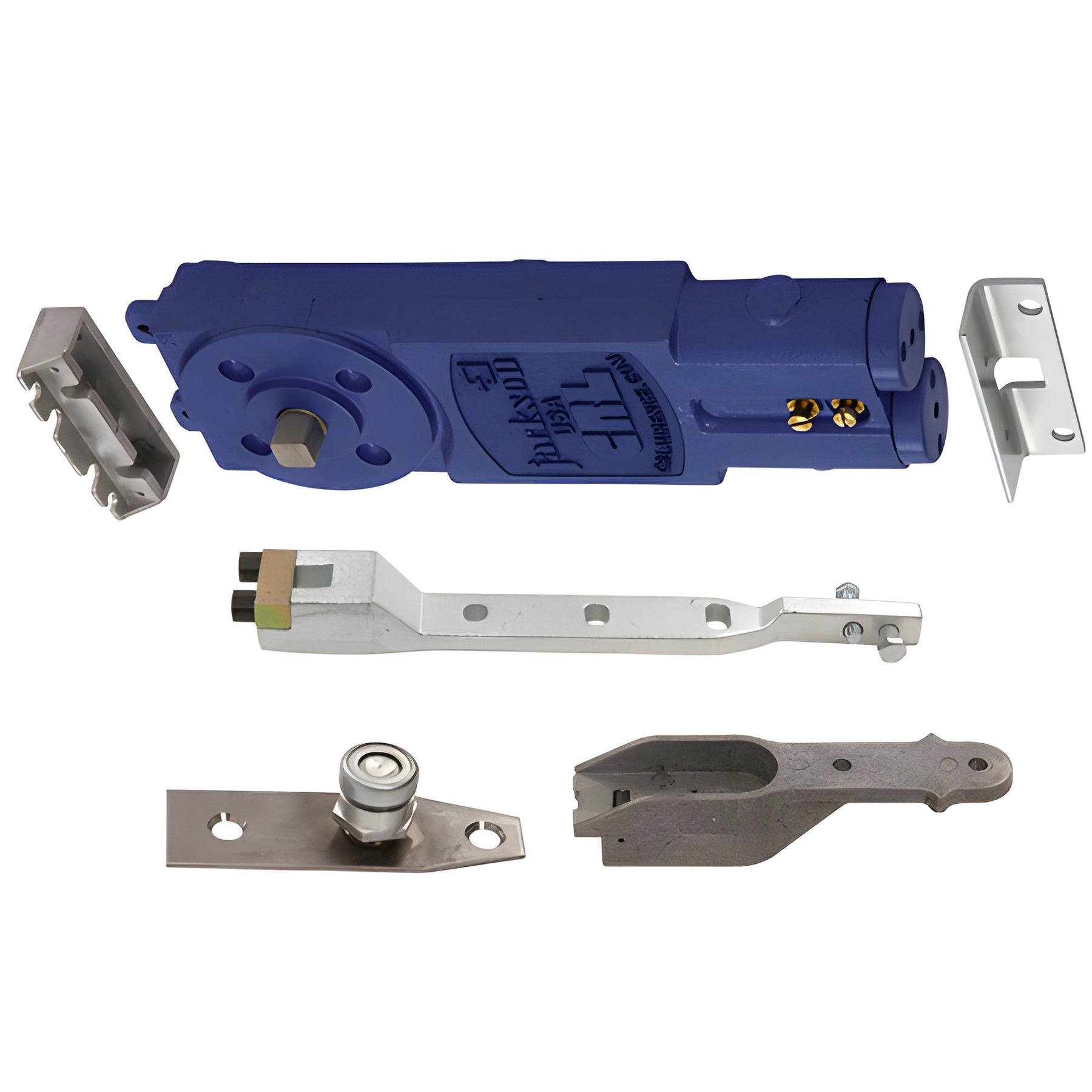

CRL Jackson 90° No-Hold-Open Concealed Overhead Closer AP pkg 1" Rail
CRL Jackson 90° No-Hold-Open Concealed Overhead Closer AP pkg 1" Rail
Regular price
$424.62 CAD
Regular price
Sale price
$424.62 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21101AP19
Shipping Weight: 9.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-9/16
Bottom Pivot Type
Floor Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
20101M19, 20219, 202000, 201060
Material
Aluminum
Maximum Door Weight
250
No Hold Open
90°
Package Type
End Load AP
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
ELB2, ELS1
Similar
CRL8762A, 21101A19
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide to meet A.D.A. opening force requirements
- Floor-mounted pivot for 1-9/16" (40 mm) deep bottom rail
- 5 Year Limited Warranty; UL Listed
CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer — a concealed overhead door closer designed for A.D.A. barrier-free applications. Adjustable from Size 1 (Barrier-Free) through Size 4 (Regular), the spring power is set to comply with A.D.A. opening force limits while providing reliable door control across a wide range of door types and sizes. Ideal when you need a versatile, adjustable ADA door closer and concealed overhead closer for commercial and institutional entrances.
A.D.A. NOTE: Although the adjustable spring power can be set to meet A.D.A. opening force requirements, adequate closing force may not be obtainable in every site condition.
NOTE: Use an auxiliary floor or overhead door stop to prevent over-extension of maximum allowable swing and protect the closer and entryway.
Product Warning: Closers adjusted to A.D.A. opening forces might not provide sufficient spring power to control and fully close the door depending on door size and site conditions.
SKU: 21101AP19
Need help selecting the right ADA concealed overhead door closer? Contact CRL or order SKU 21101AP19 today to ensure compliant, reliable door control.
