CRL Jackson® Adjustable 90° Concealed Overhead Closer No Hold-Open GE
CRL Jackson® Adjustable 90° Concealed Overhead Closer No Hold-Open GE
Regular price
$418.93 CAD
Regular price
Sale price
$418.93 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21101GE19
Shipping Weight: 11.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Threshold Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
20101M19, 20219, 20400B, 20944
Material
Aluminum
Maximum Door Weight
250
No Hold Open
90°
Package Type
Side Load GE
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20190628, 20190313, 20510, HMC035, DCHSAS, CRL8010SCP, SLB3, SLS1
Similar
21101U19, 21101S19
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide to meet A.D.A. opening force requirements
- Threshold-mounted pivot for 1-1/2" (38 mm) deep bottom rail
- 3/16" (5 mm) height adjustment
- UL Listed
- 5 Year Limited Warranty
CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer — adjustable from Size 1 (Barrier-Free) through Size 4 (Regular) to set spring power for A.D.A. handicap barrier-free opening force requirements. Ideal as an ADA compliant adjustable door closer and for installations needing a concealed overhead solution with threshold-mounted pivot control.
A.D.A. NOTE: Although the adjustable spring power closer can be set to compensate for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to the closer and entry due to over-extension of maximum allowable door swing.

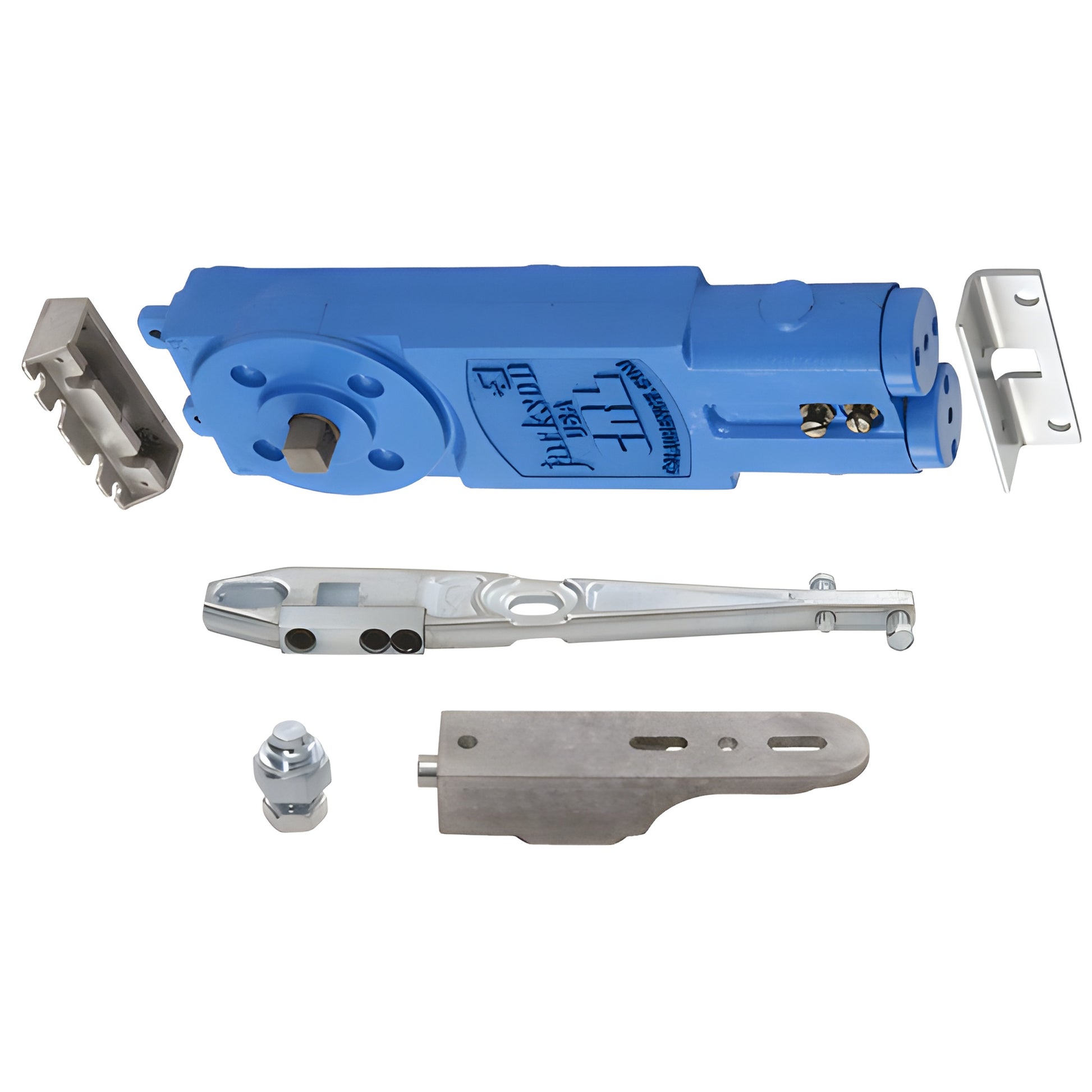

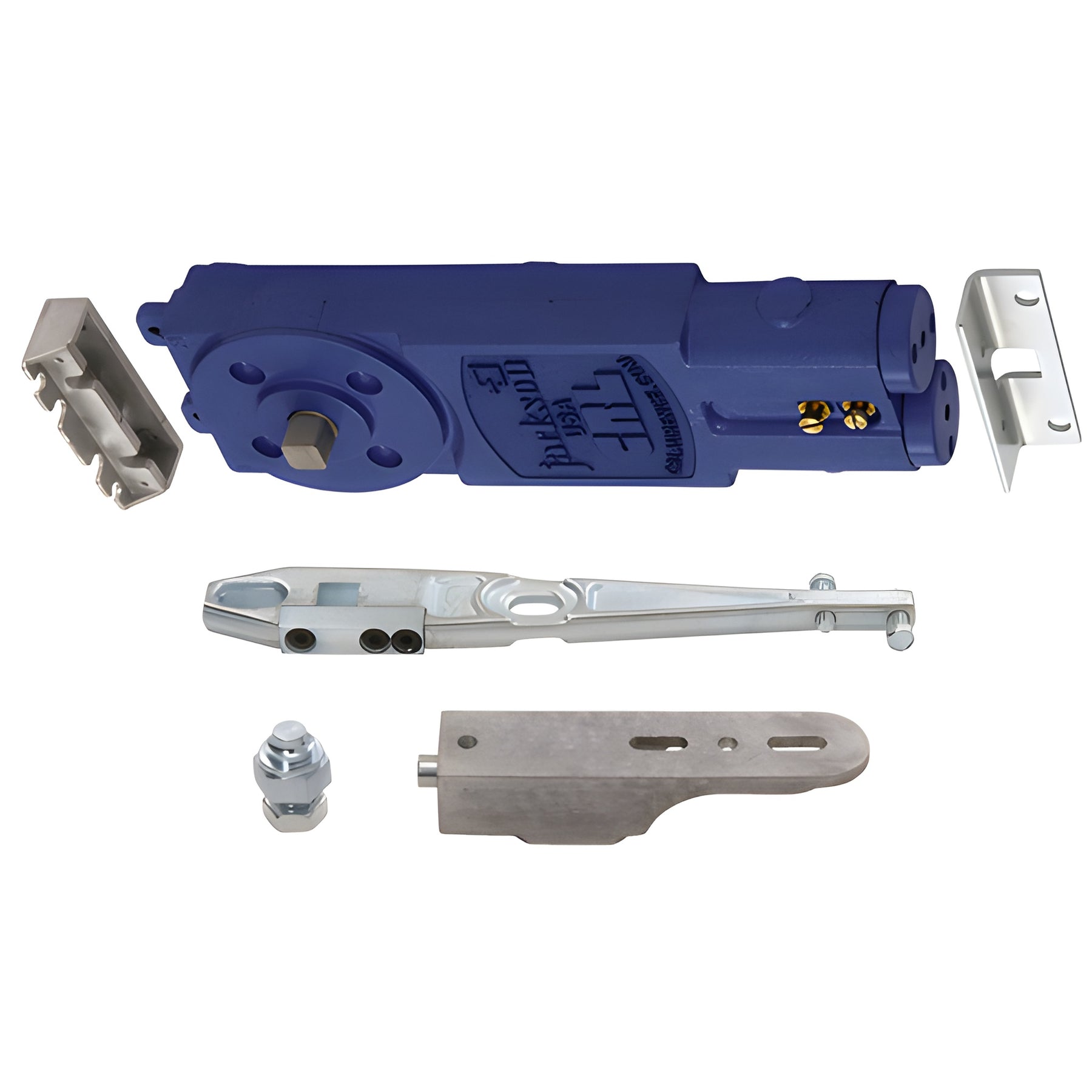

The "GE" Package for this model includes: CRL8010FS Standard Mounting Clips, CRL8010S Side Load Arm Assembly, and CRL8010GE Bottom Pivot. The GE package is intended for new door installations with 1/2" (12.7 mm) deep top rail and side-load applications and will retrofit existing Jackson® and similar fixed-size closer installations.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
SKU: 21101GE19
Need assistance selecting the right ADA-compliant overhead concealed door closer or the GE package for your door? Contact CRL or add SKU 21101GE19 to your cart to get started.
