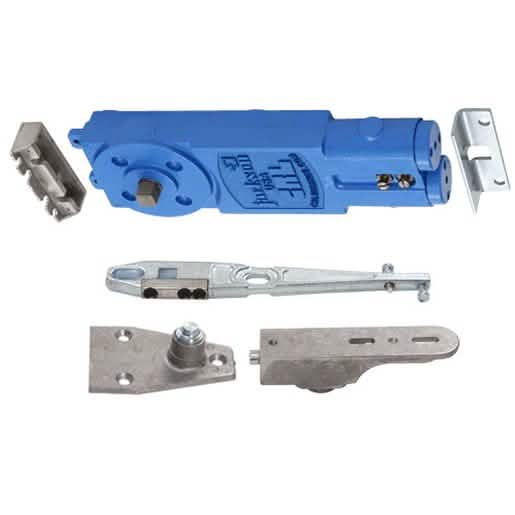

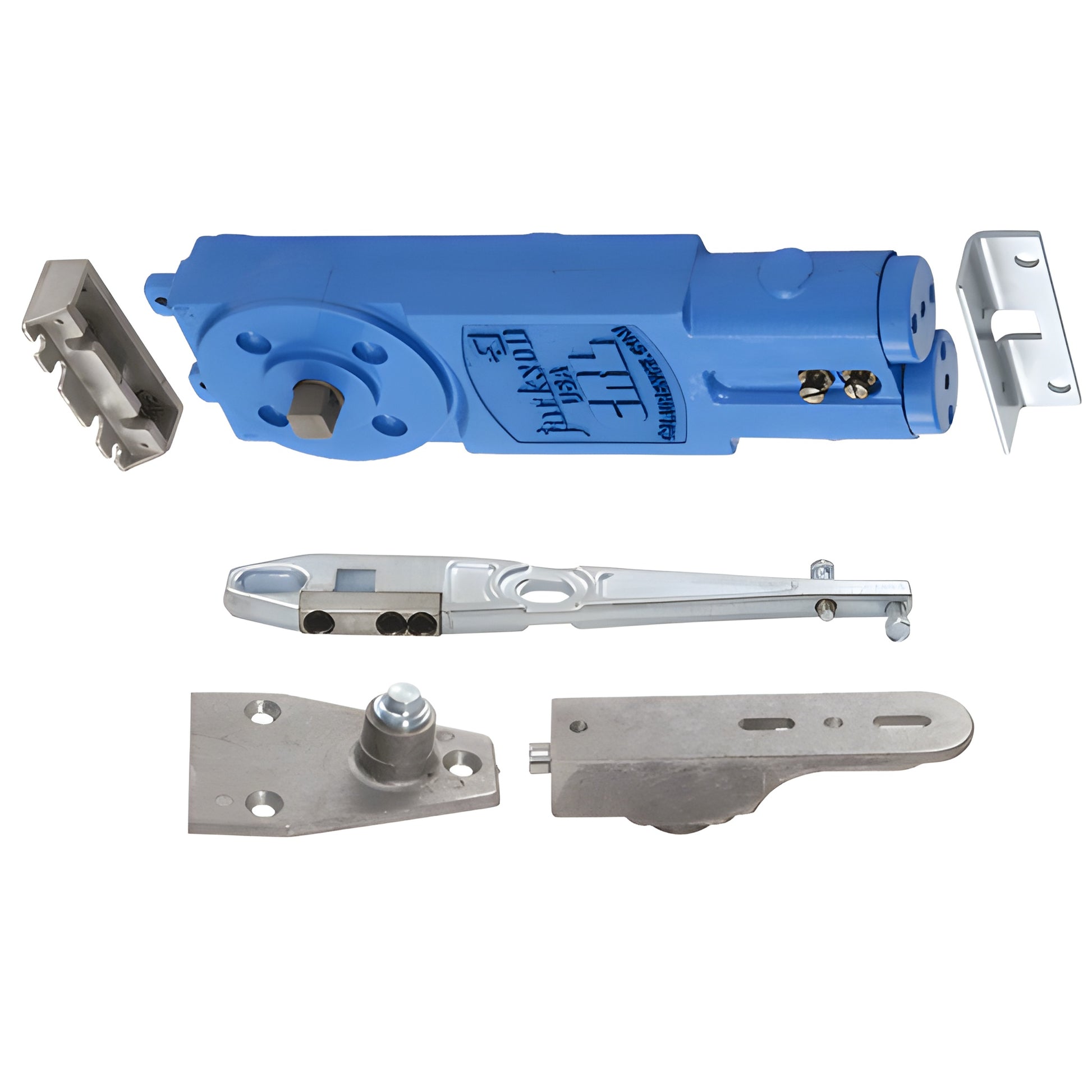

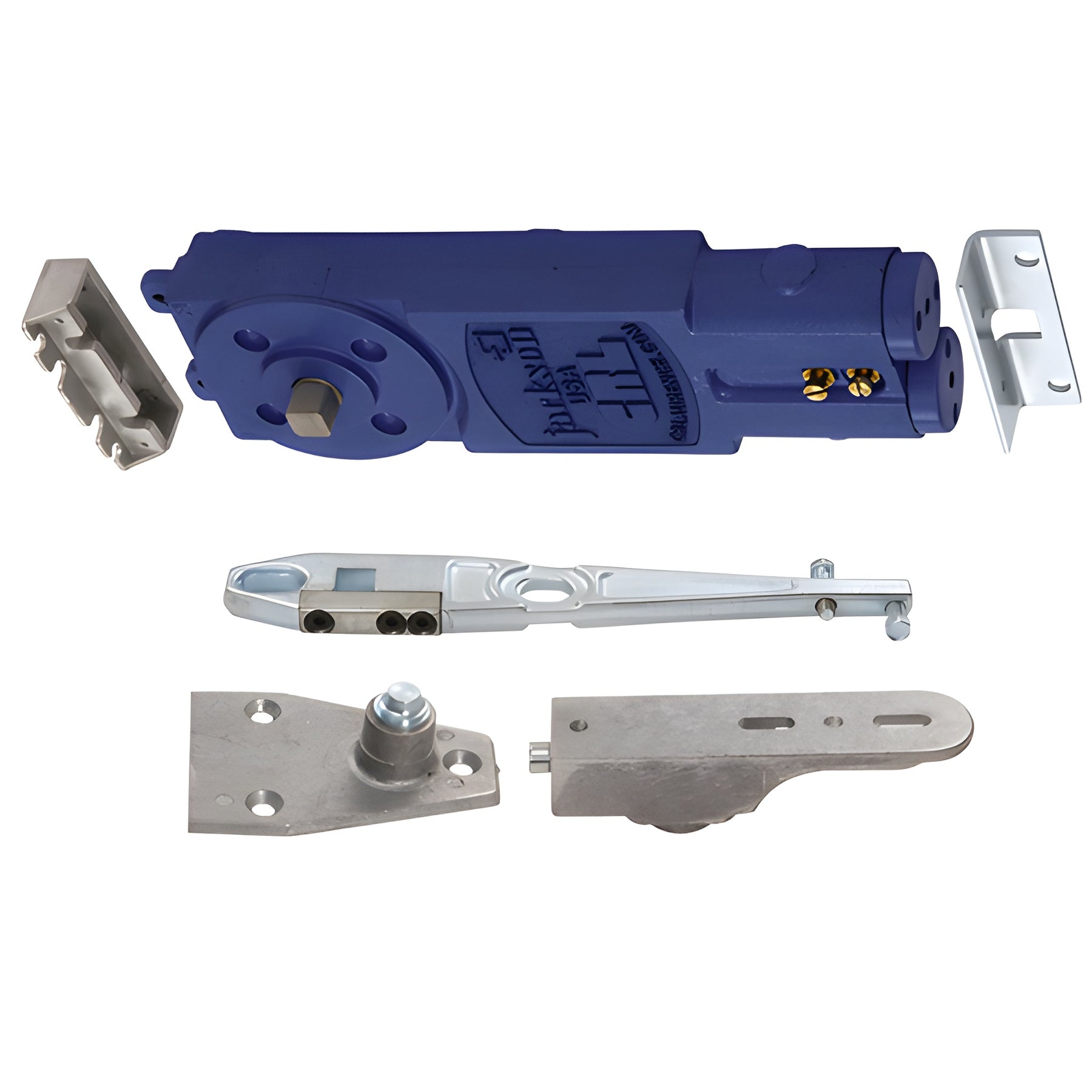

CRL Jackson® 90° Adjustable Concealed Overhead Closer w/ S Hardware
CRL Jackson® 90° Adjustable Concealed Overhead Closer w/ S Hardware
Regular price
$423.18 CAD
Regular price
Sale price
$423.18 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21101S19
Shipping Weight: 11.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Floor Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
20101M19, 20219, 20400B, 20902
Material
Aluminum
Maximum Door Weight
250
No Hold Open
90°
Package Type
Side Load S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20190628, 20190313, 20510, HMC035, DCHSAS, CRL8010SCP, SLB3, SLS1
Similar
21101GE19, 21101U19
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide to meet A.D.A. opening force requirements
- Floor-mounted pivot for 1-1/2" (38 mm) deep bottom rail
- 3/16" (5 mm) height adjustment
- UL Listed
- 5 Year Limited Warranty
This CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer (SKU 21101S19) is a concealed overhead door closer designed for A.D.A. barrier-free applications. The adjustable spring power spans Sizes 1 (Barrier-Free) through 4 (Regular), enabling compliance with A.D.A. opening force limits while providing reliable door control across a wide range of door types and sizes. Ideal for contractors and architects specifying an ADA adjustable spring door closer or a concealed overhead door closer with floor-mounted pivot for 1-1/2" bottom rails.
A.D.A. NOTE: While the spring power is adjustable to compensate for site conditions, adequate closing force might not be obtainable in all installations when complying with A.D.A. opening force requirements.
NOTE: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum door swing.
Product Warning:
Closers set to meet A.D.A. opening force limits may not provide sufficient spring power to control and close the door in all site conditions or with larger/heavier doors.
Order SKU 21101S19 or contact CRL Customer Service to confirm suitability for your project.
