crlaurence.ca

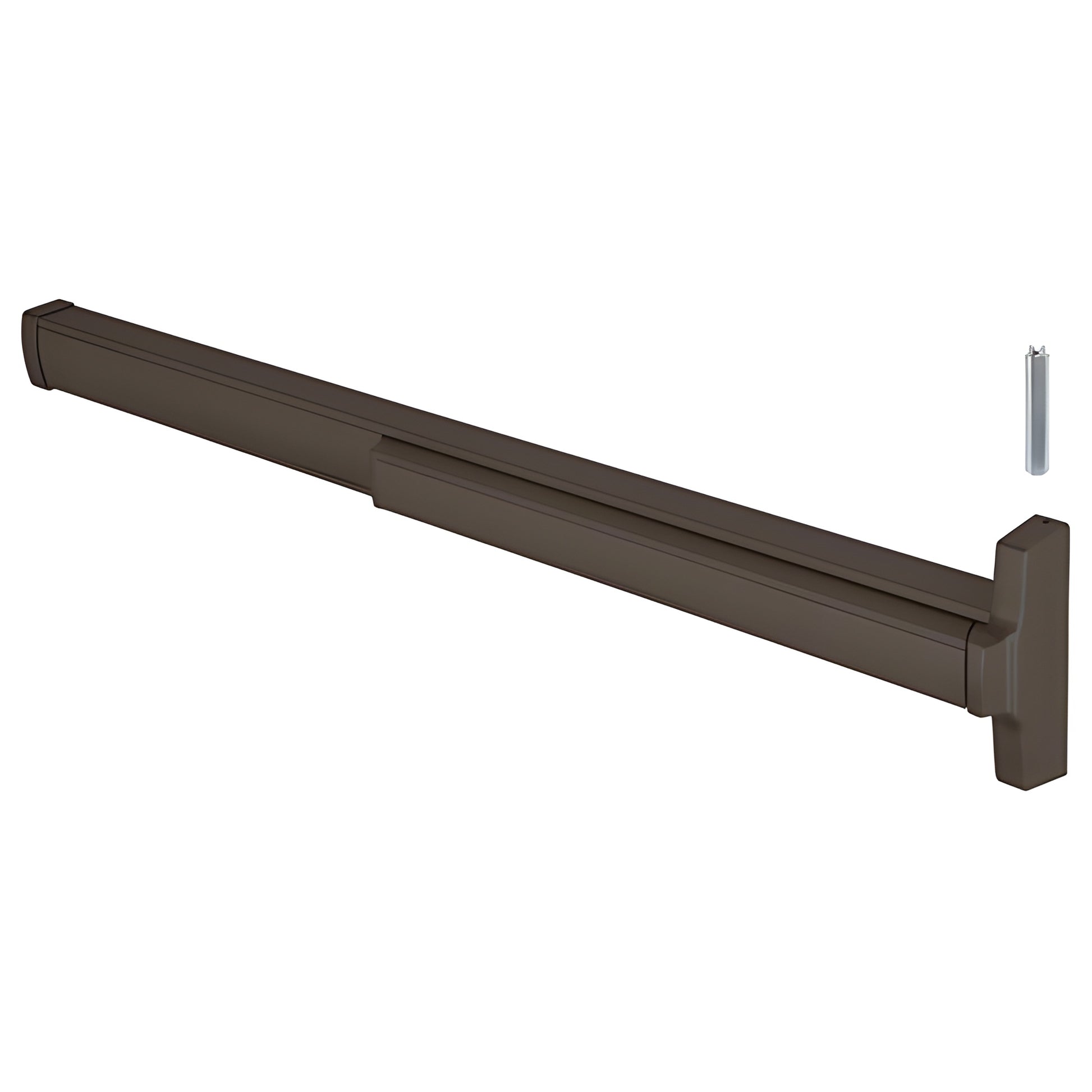

CRL JacksonĀ® Model 2086 with Impact Kit Concealed Vertical Rod Panic Exit Device Right Hand Reverse Bevel Fits 4/0 x 7/0 Door Dark Bronze Finish
CRL JacksonĀ® Model 2086 with Impact Kit Concealed Vertical Rod Panic Exit Device Right Hand Reverse Bevel Fits 4/0 x 7/0 Door Dark Bronze Finish
Regular price
$941.36 CAD
Regular price
Sale price
$941.36 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 3120861R47313
Shipping Weight: 13.15 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 13.15 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Height 84 in. | (2133.6 mm) |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 48 in. | (1219.2 mm) |
| Finish/Color | Dark Bronze |
| Handing | Right Hand Reverse Bevel (RHR) |
| Impact | Panic Hurricane Resistant Yes |
| Includes | Mounting Hardware |
| Material | - End Cap Aluminum |
| Material | - Housing Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 2086 |
| Panic Bar Base Height 2-7/8 in. | (73 mm) |
| Panic Bar Projection 3 in. | (76.2 mm) |
| Panic Bar Width Net 46-1/2 in. | (1181.1 mm) |
| Panic | Dogging Push Button |
| Panic Head Height 7-5/16 in. | (185.7 mm) |
| Panic | Type Concealed Vertical Rods Top Bolt |
| Push Pad Width 23-1/2 in. | (596.9 mm) |
| Recommended | Door Type Aluminum Narrow, Medium, Wide Stile, Hollow Metal |
| Series | 20 |
| Tall Door Extention Rods | 301347 |
| U | L Listed Yes |
Overview
The CRL JacksonĀ® Model 2086 with Impact Kit Concealed Vertical Rod Panic Exit Devices, UL Listed and ANSI 156.3 Grade 1 certified, offers unparalleled quality and durability.
Ideal for narrow, medium, and wide stile aluminum doors, these devices provide quiet, smooth, and reliable operation with easy concealed push-button dogging.
Available in Dark Bronze and Satin Aluminum finishes, they are designed for quick installation and come in standard lengths for 36" and 48" wide doors, with customization options available.
Enhance security with optional Cylinder Dogging and keyed access using JacksonĀ® Model 8500LV Outside Lever Trim.
For doors over 84", order the Top Rod Extender for optimal performance.
Ideal for narrow, medium, and wide stile aluminum doors, these devices provide quiet, smooth, and reliable operation with easy concealed push-button dogging.
Available in Dark Bronze and Satin Aluminum finishes, they are designed for quick installation and come in standard lengths for 36" and 48" wide doors, with customization options available.
Enhance security with optional Cylinder Dogging and keyed access using JacksonĀ® Model 8500LV Outside Lever Trim.
For doors over 84", order the Top Rod Extender for optimal performance.
