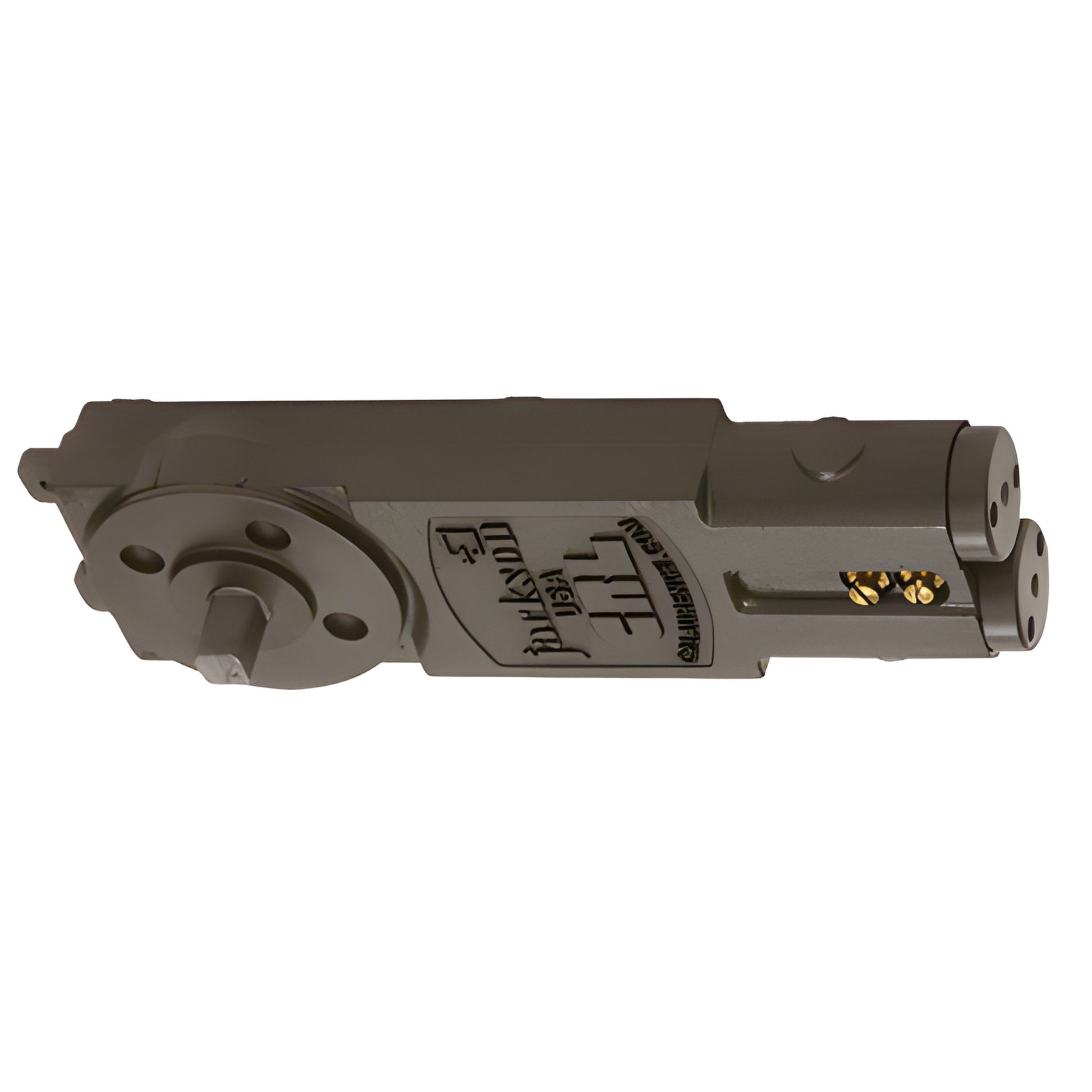

CRL Jackson® Regular Duty 7/8" Extended Spindle 105º Hold Open Overhead Concealed Closer Body
CRL Jackson® Regular Duty 7/8" Extended Spindle 105º Hold Open Overhead Concealed Closer Body
Regular price
$302.66 CAD
Regular price
Sale price
$302.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 20104M02
Shipping Weight: 4.08 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 4.08 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Body Height 1-11/16 in. | (42.9 mm) |
| Body Length 11-5/8 in. | (295.3 mm) |
| Body Width 3-11/16 in. | (93.7 mm) |
| Case Quantity | 4 |
| Closer | Type Overhead Concealed |
| Door Height 96 in. | (2438.4 mm) |
| Handing | Double Acting |
| Hold Open | 105° |
| Maximum Door Weight 250 lbs. | (113.4 kg) |
| Maximum Door Width - Exterior 42 in. | (1066.8 mm) |
| Maximum Door Width - Interior 36 in. | (914.4 mm) |
| Recommended | Door Type Aluminum, Hollow Metal |
| Spindle 7/8 in. | (22.2 mm) |
| Spring | Size Regular Duty |
| U | L Listed Yes |
Overview
This CRL Jackson® Regular Duty 7/8" Extended Spindle 105º Hold Open Overhead Concealed Closer Body is crafted with a 7/8" (22 mm) long spindle, making it ideal for use with Patch Fittings and Rail Hardware.
It features standard dual-action valves for precise control over closing and latching speeds and includes a 105º Hold Open with a fixed regular duty spring size.
Designed to fit seamlessly into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions, this closer is compatible with Jackson® and similar overhead concealed closers.
Please note that mounting clips are not included, and you may need to purchase the appropriate clip package separately.
For assistance, contact the Jackson® Technical Sales Department.
It features standard dual-action valves for precise control over closing and latching speeds and includes a 105º Hold Open with a fixed regular duty spring size.
Designed to fit seamlessly into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions, this closer is compatible with Jackson® and similar overhead concealed closers.
Please note that mounting clips are not included, and you may need to purchase the appropriate clip package separately.
For assistance, contact the Jackson® Technical Sales Department.
