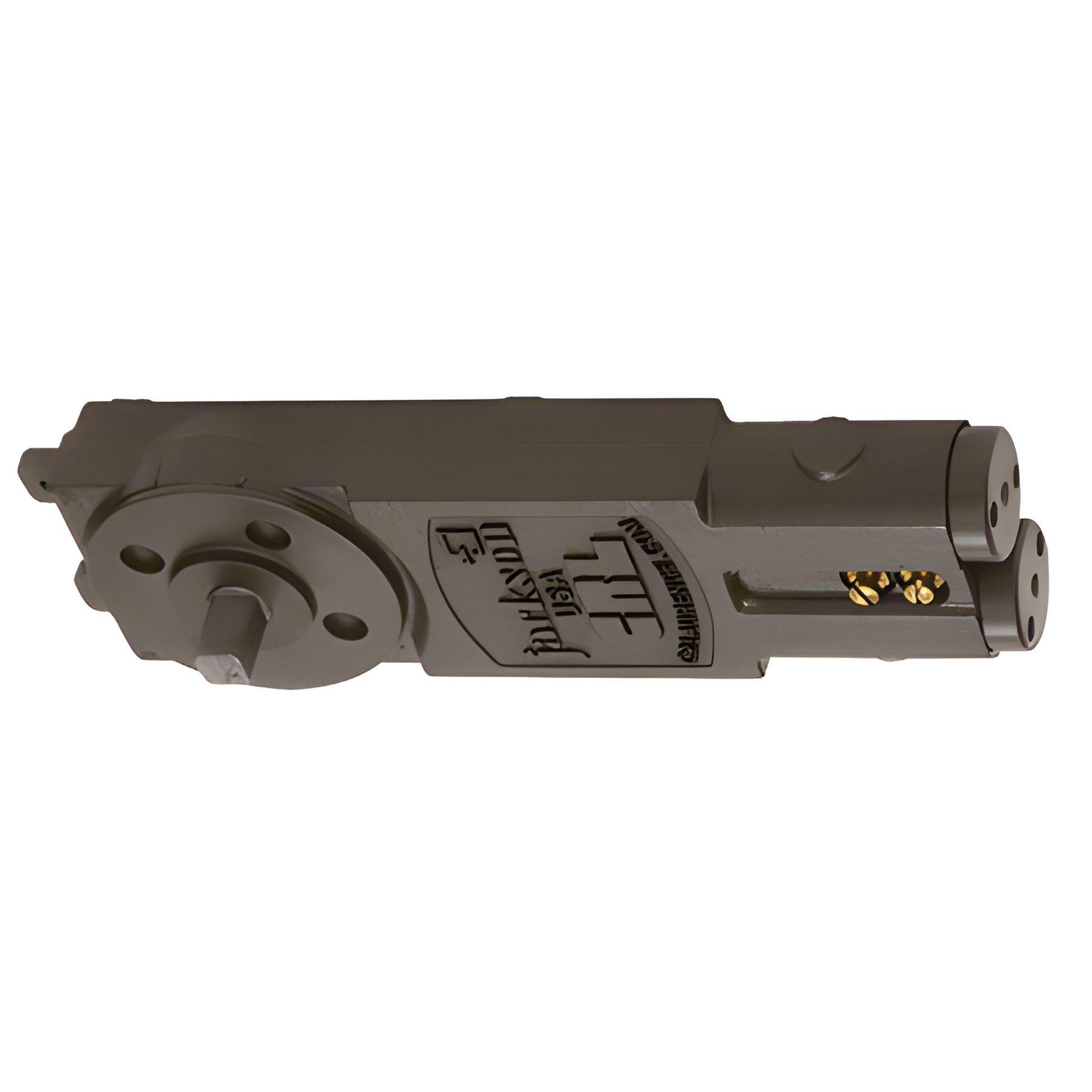

CRL Jackson 7/8" Ext Spindle 90° Hold-Open Concealed Door Closer
CRL Jackson 7/8" Ext Spindle 90° Hold-Open Concealed Door Closer
Regular price
$316.69 CAD
Regular price
Sale price
$316.69 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 20104M04
Shipping Weight: 4.04 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.04 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16 in. (42.9 mm)
Body Length
11-5/8 in. (295.3 mm)
Body Width
3-11/16 in. (93.7 mm)
Case Quantity
4
Closer Type
Overhead Concealed
Door Height
96 in. (2438.4 mm)
Handing
Double Acting
Hold Open
90°
Maximum Door Weight
250 lbs. (113.4 kg)
Maximum Door Width - Exterior
42 in. (1066.8 mm)
Maximum Door Width - Interior
36 in. (914.4 mm)
Recommended Door Type
Aluminum, Hollow Metal
Spindle
7/8 in. (22.2 mm)
Spring Size
Regular Duty
UL Listed
Yes
Overview
- Fixed Regular Spring Size
- Standard and Extended Spindle Models
- 5 Year Limited Warranty
CRL Jackson® Regular Duty 7/8" Extended Spindle 90º Hold Open Overhead Concealed Closer Body (SKU: 20104M04) — 7/8" (22 mm) extended spindle preferred for use with Patch Fittings and Rail Hardware. Features standard dual-action valves to adjust closing and latching speeds, 90º hold-open, and a fixed regular duty spring. Designed for overhead concealed installations and fits standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Interchangeable with other Jackson® and similar overhead concealed closers for easy replacement and upgrade.
Product Warning:
Mounting clips are not included. Unless reusing existing clips, purchase the correct clip package for your application. Contact Jackson® Technical Sales for help selecting the proper Mounting Clip Package.
Order the CRL Jackson® 7/8" Extended Spindle Overhead Concealed Closer Body (SKU: 20104M04) today to ensure compatibility with patch fittings and rail hardware — contact us for mounting clip options or technical support.
