CRL Jackson® Adjustable Satin Aluminum Concealed Overhead Door Closer
CRL Jackson® Adjustable Satin Aluminum Concealed Overhead Door Closer
Regular price
$518.33 CAD
Regular price
Sale price
$518.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21201P62820
Shipping Weight: 11.51 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.51 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Finish/Color
Aluminum
Handing
Non Handed
Hold Open
90°
Includes
20101M20, 201178, 201133628, 201129
Material
Aluminum
Maximum Door Weight
250
Package Type
Offset Arm P
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106628, 20190628, DCH4SAS, 201134LC628
Similar
21201A62820
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
5/8
UL Listed
Yes
Overview
- P Offset Slide-Arm Hardware Package for Doors with 5/8" Shallow Top Rails
- Spring Power Adjustable Closer Suitable for Doors From 30" to 42" (762 mm to 1.07 m) Wide
- Five Year Limited Warranty — U.L. Listed

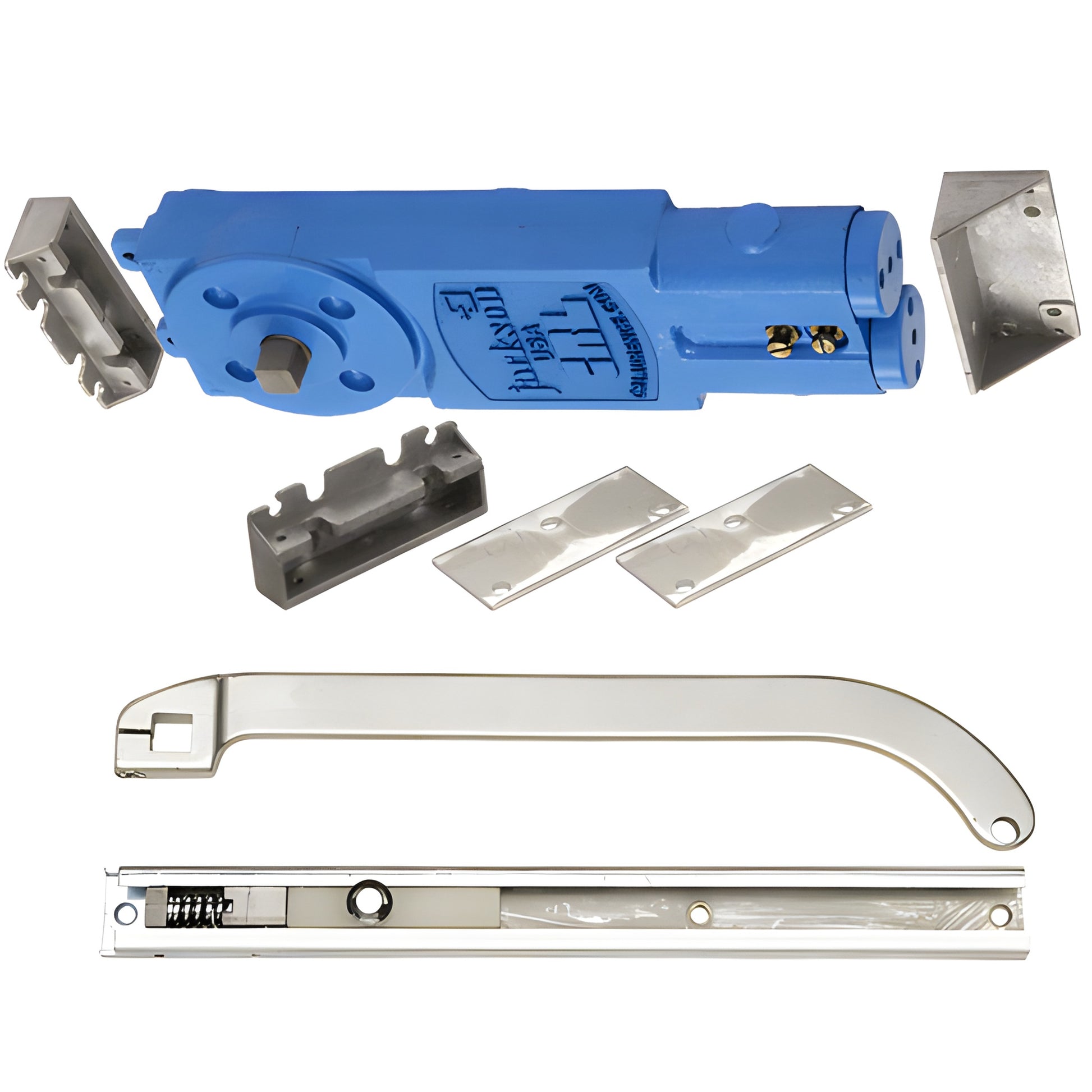

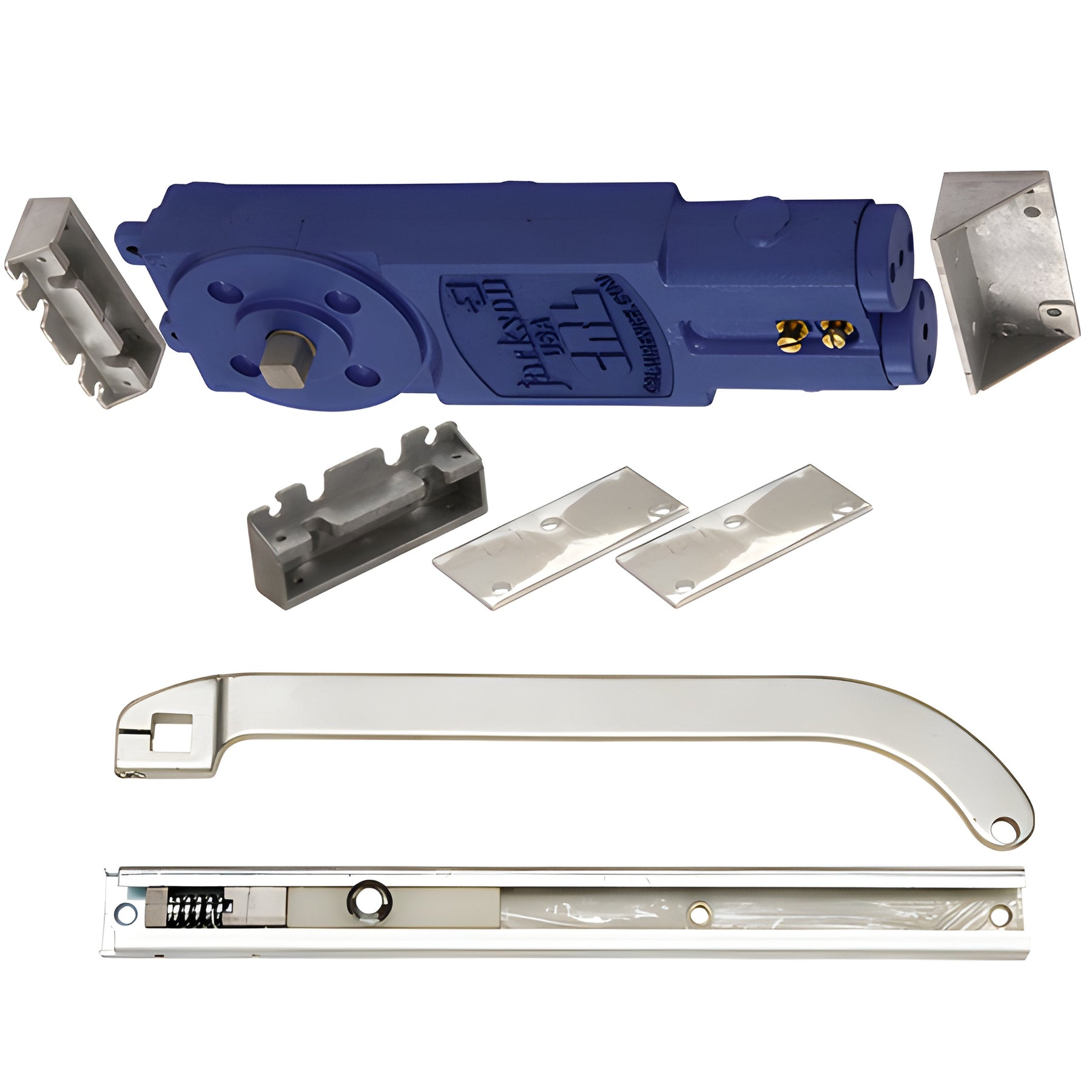

The CRL Jackson® 21201 Series Overhead Concealed Closer with "P" Offset Slide-Arm Hardware Package (SKU: 21201P62820) is an overhead concealed door closer engineered for headers with 5/8" shallow top rails. This spring power adjustable closer includes Cat. No. 20118 mounting clips, 201133 offset arm package, 201129 slide channel, and complete installation instructions. With dual independent valves for closing and latching speeds and 90º hold-open, the unit provides reliable, adjustable performance across door widths from 30" to 42" (762 mm to 1.07 m) depending on spring size and function selection. Designed to fit standard 1-3/4" x 4" (or larger) header extrusions, it is UL listed and backed by a five year limited warranty—ideal when you need a dependable overhead concealed door closer and P offset slide-arm hardware package for shallow-header installations.
