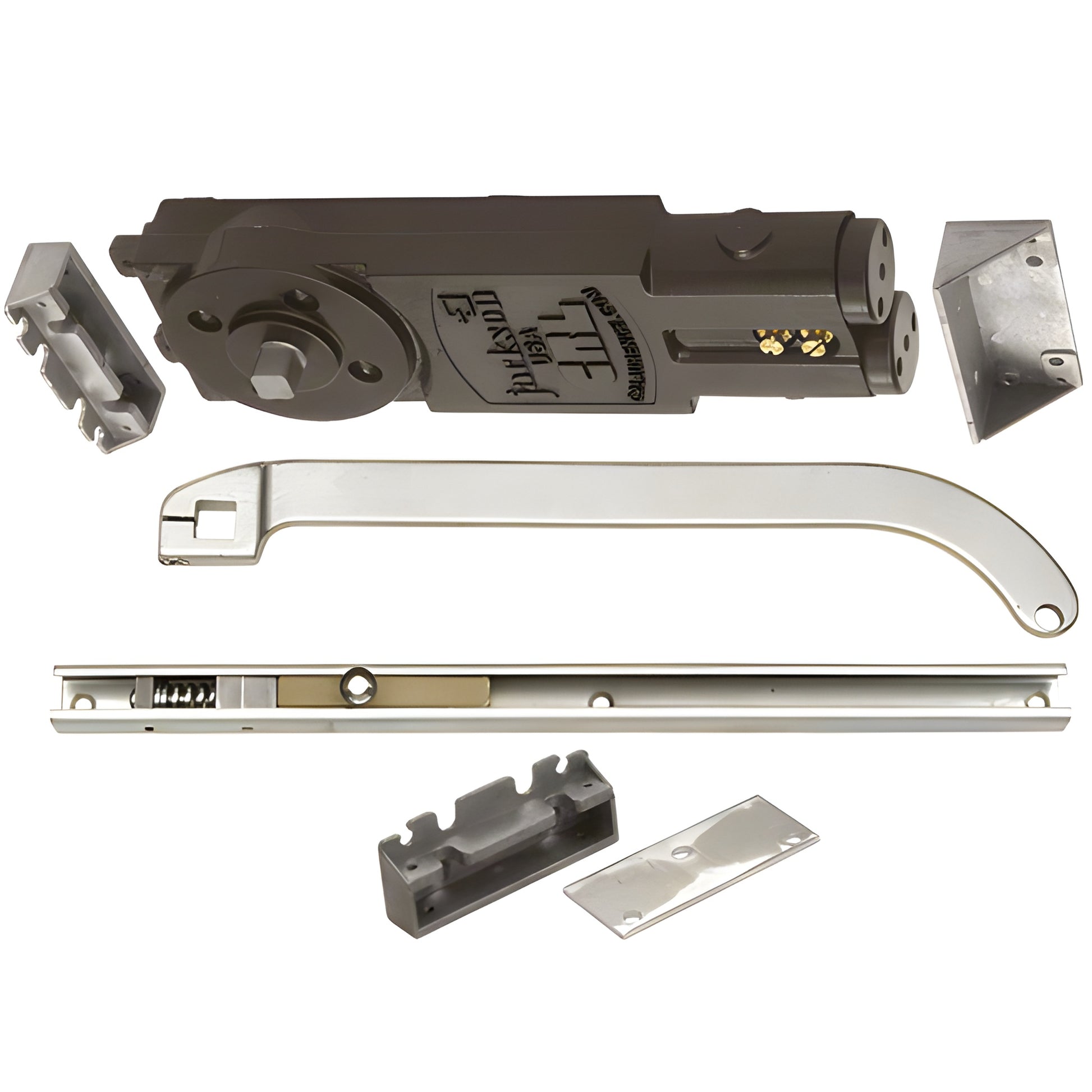

• Aluminum overhead concealed door closer kit with U offset slide arm, parts displayed - SKU 21201U62804
1 1

CRL

CRL Jackson® Overhead Concealed Closer Satin Aluminum 90° Hold-Open

CRL Jackson® Overhead Concealed Closer Satin Aluminum 90° Hold-Open

$408.98 CAD
$408.98 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 21201U62804
Shipping Weight: 11.38 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Arm Type
'U' Offset Slide-Arm
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Finish/Color
Aluminum
Handing
Non Handed
Hold Open
90°
Includes
20101M04, 201381, 20942628, 20368
Material
Aluminum
Maximum Door Weight
250
Package Type
Offset Arm U
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106628, 20190628, DCH4SAS, 20900LC628
Similar
21201S62819
Spindle
1/2
Spring Size
Regular
Top Rail Depth
7/8
UL Listed
Yes

Overview

  • 'U' Offset Slide-Arm Hardware Package for doors with 7/8" (22.2 mm) shallow top rails — overhead concealed closer for narrow header extrusions
  • Suitable for doors 30" to 48" (762 mm to 1.22 m) wide — ideal for commercial and residential interior doors
  • Ten Year Limited Warranty — U.L. Listed for safety and reliability

The CRL Jackson® 21201 Series Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package (SKU: 21201U62804) is a compact, overhead concealed door closer engineered for 7/8" shallow top rails. Packaged complete with Cat. No. 201387 mounting clips, 20942 offset arm package, 20368 slide channel, and installation instructions, this concealed closer installs into standard 1-3/4" x 4" (or larger) header extrusions.

Key performance features include dual independent valves for precise closing and latching speeds, and a 90° hold-open with fixed regular-duty spring size. The design provides a clean, low-profile appearance while delivering reliable control for doors within the specified 30"–48" width range.
