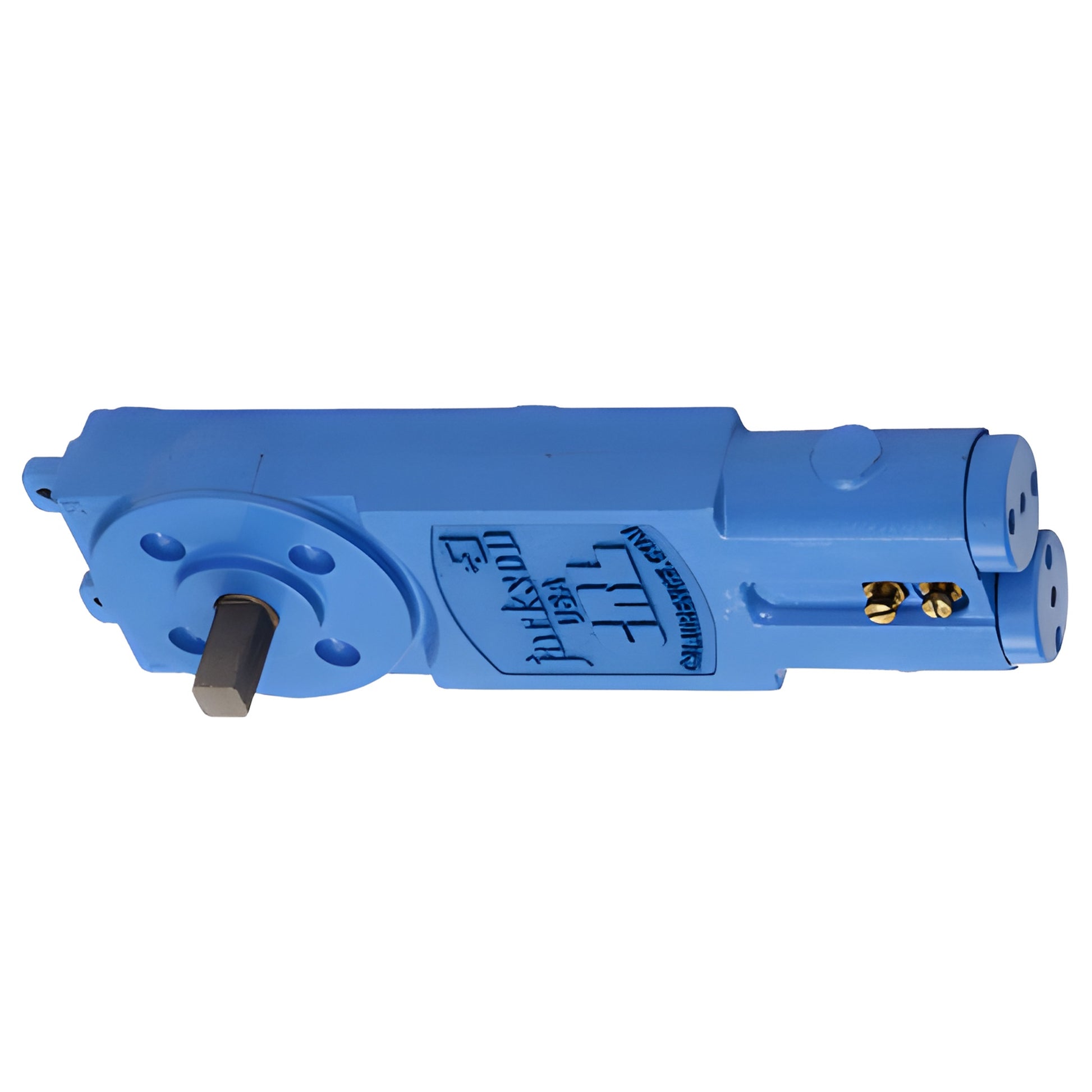

CRL Jackson® Concealed Overhead Door Closer 90° Hold-Open, 1-13/64in
CRL Jackson® Concealed Overhead Door Closer 90° Hold-Open, 1-13/64in
Regular price
$355.02 CAD
Regular price
Sale price
$355.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 20106M20
Shipping Weight: 11.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16 in. (42.9 mm)
Body Length
11-5/8 in. (295.3 mm)
Body Width
3-11/16 in. (93.7 mm)
Case Quantity
4
Closer Type
Overhead Concealed
Door Height
96 in. (2438.4 mm)
Handing
Double Acting
Hold Open
90°
Maximum Door Weight
250 lbs. (113.4 kg)
Maximum Door Width - Exterior
42 in. (1066.8 mm)
Maximum Door Width - Interior
36 in. (914.4 mm)
Recommended Door Type
Aluminum, Hollow Metal
Spindle
1-13/64 in. (30.6 mm)
Spring Size
Adjustable
UL Listed
Yes
Overview
- Maximum adjustability for ADA requirements versus stack pressure
- Patented Dual Compression Technology — adjustable spring power sizes 2–4
- Designed for ADA barrier-free applications and glass door installations
- Extra-long 1-13/64" spindle for use with patch fittings and rail hardware; 90° hold-open
- U.L. Listed with a Five Year Limited Warranty

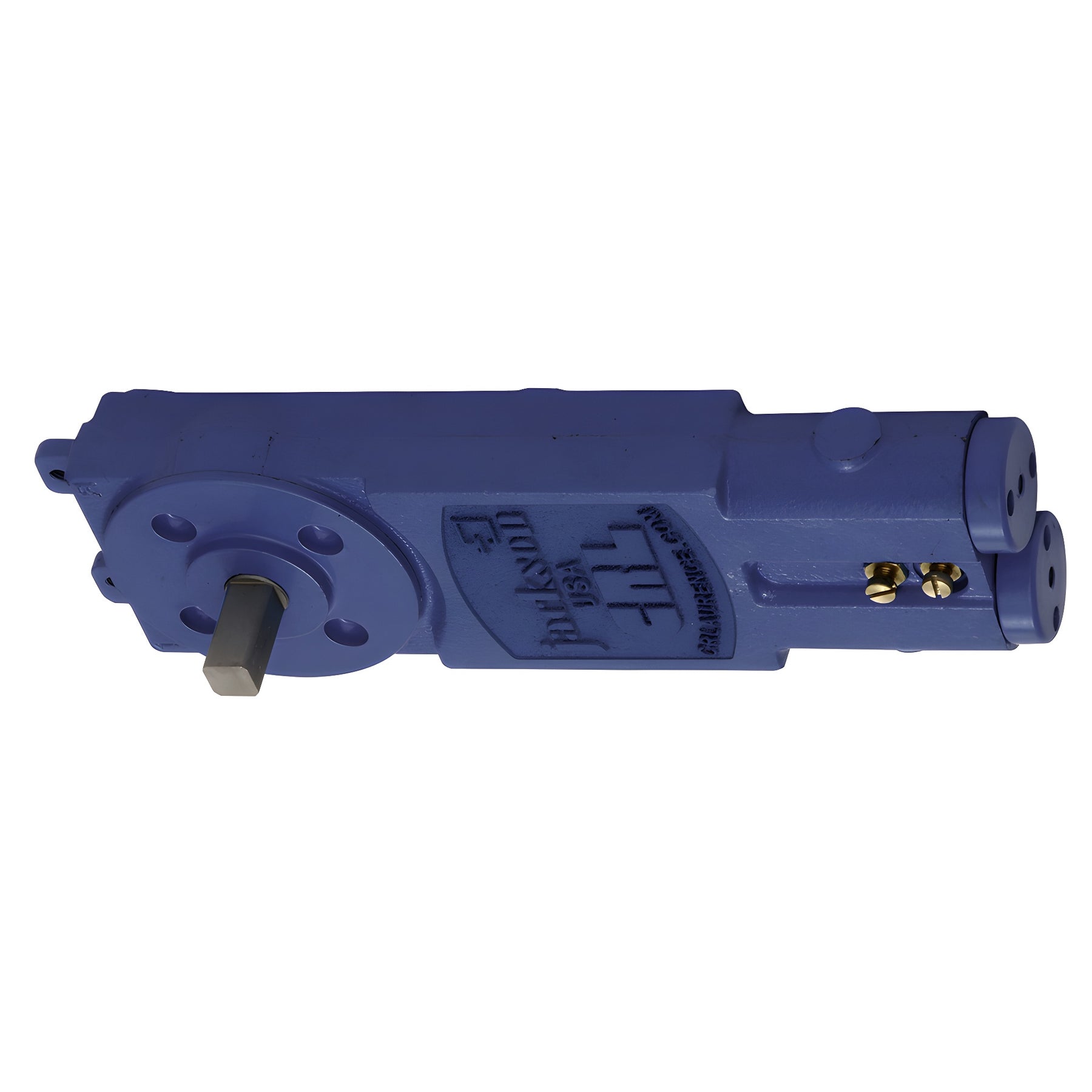

CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body (SKU: 20106M20) is engineered for ADA-compliant glass door and commercial storefront applications. The extra-long 1-13/64" spindle provides additional engagement for patch fittings and rail hardware. Patented Dual Compression Technology delivers finer spring tension adjustment (sizes 2–4) for improved spring efficiency, while fully independent valves offer precise control to balance building codes, stack pressure and reliable door closing.
Key differentiators: patented dual-compression adjustment, independent valves for maximum tuneability, retrofit compatibility with most fixed-spring overhead concealed closers, and commercial-grade U.L. listing with a five-year limited warranty.
Product Warning: Closers set to comply with ADA specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Mounting clips are not included; if existing clips are not reused you must purchase the appropriate Mounting Clip Package. Contact Jackson® Technical Sales for assistance selecting the correct mounting clip package.
Need help selecting the right closer or mounting clip for your ADA glass door? Contact CRL Customer Service to order SKU 20106M20 today.
