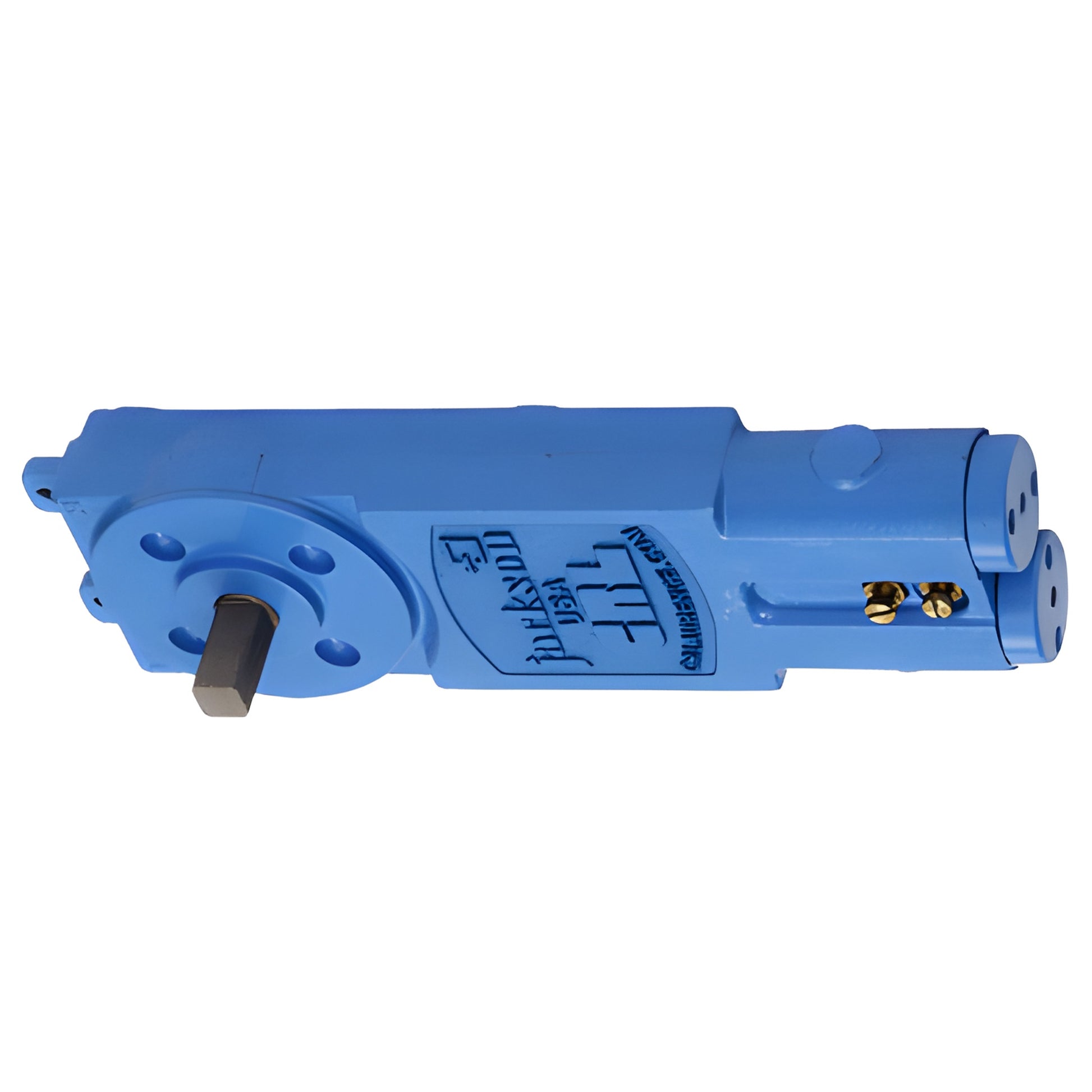

CRL Jackson® 90° Adjustable Concealed Door Closer No Hold, XL Spindle
CRL Jackson® 90° Adjustable Concealed Door Closer No Hold, XL Spindle
Regular price
$355.02 CAD
Regular price
Sale price
$355.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 20106M19
Shipping Weight: 11.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16 in. (42.9 mm)
Body Length
11-5/8 in. (295.3 mm)
Body Width
3-11/16 in. (93.7 mm)
Case Quantity
4
Closer Type
Overhead Concealed
Door Height
96 in. (2438.4 mm)
Handing
Double Acting
Maximum Door Weight
250 lbs. (113.4 kg)
Maximum Door Width - Exterior
42 in. (1066.8 mm)
Maximum Door Width - Interior
36 in. (914.4 mm)
No Hold Open
90°
Recommended Door Type
Aluminum, Hollow Metal
Spindle
1-13/64 in. (30.6 mm)
Spring Size
Adjustable
UL Listed
Yes
Overview
- Maximum adjustability to meet ADA requirements while compensating for stack pressure
- Patented Dual Compression Technology — adjustable spring power Sizes 2–4 for precise tension control
- Designed for ADA barrier-free applications
- Extra-long 1-13/64" spindle for secure engagement with patch fittings and rail hardware
- 90º no-hold function
- U.L. Listed with a Five Year Limited Warranty

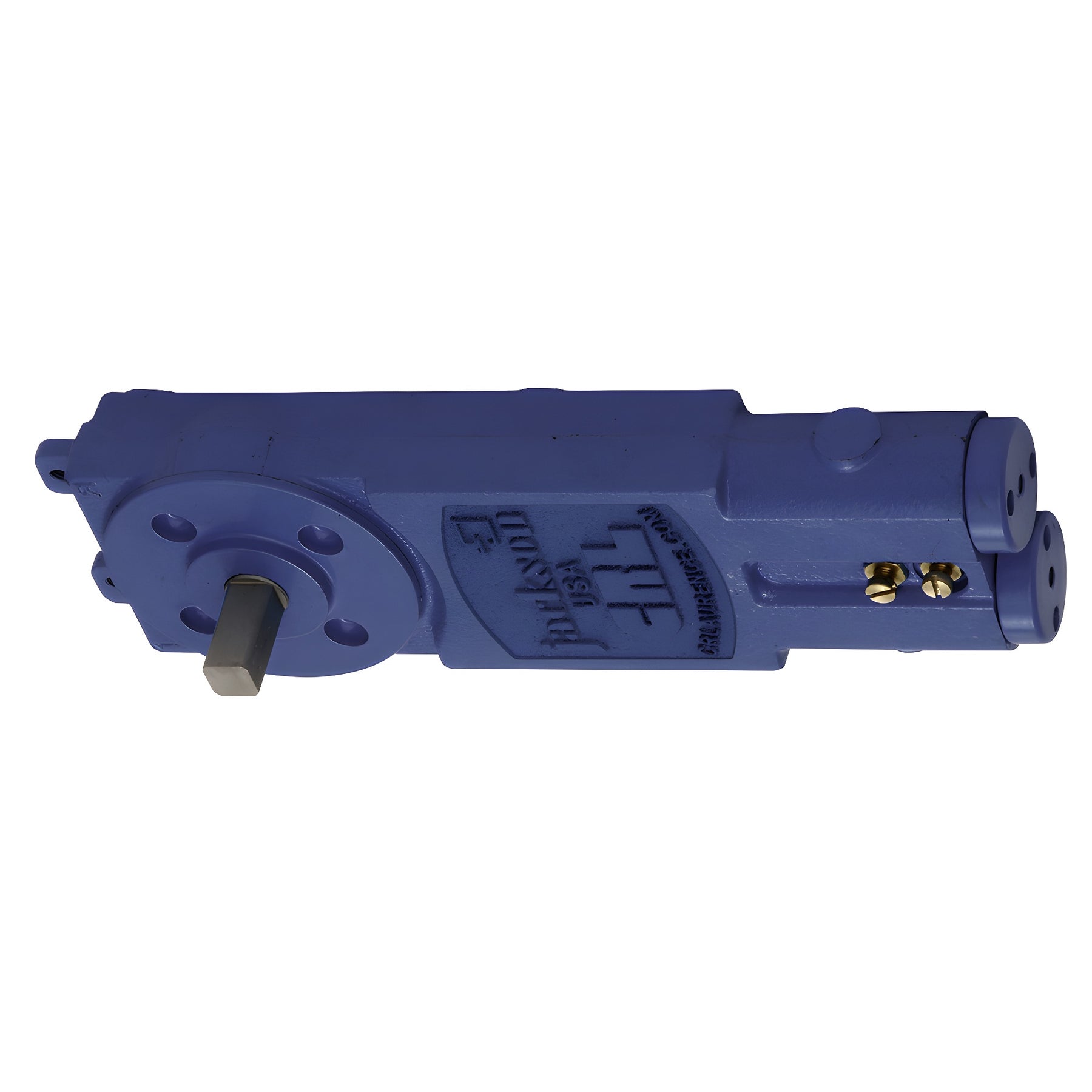

This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body (SKU: 20106M19) is engineered for ADA-compliant, barrier-free glass doors. The extra-long 1-13/64" spindle provides additional "bite" when used with patch fittings or rail hardware, and the Patented Dual Compression Technology allows fine adjustment across spring power sizes 2–4 for improved efficiency and control. Independent hydraulic valves enable precise speed and latching adjustments to balance building codes, stack pressure, and reliable door closure. Easily retrofits most fixed-spring overhead concealed closers—preferred by professionals for glass door installations.
Product Warning:
Closers set to comply with ADA specified opening forces may not provide adequate spring power to control and close the door under all site conditions or door sizes. Mounting clips are not included. If existing clips are not reused, purchase the appropriate mounting clip package for your application. Contact Jackson® Technical Sales for assistance selecting the correct mounting clip package.
Key applications: ADA overhead concealed closer for glass doors, patch fitting and rail hardware installations, retrofit of fixed-spring closer bodies.
Need help selecting clips or confirming compatibility? Contact Jackson® Technical Sales or order now.
