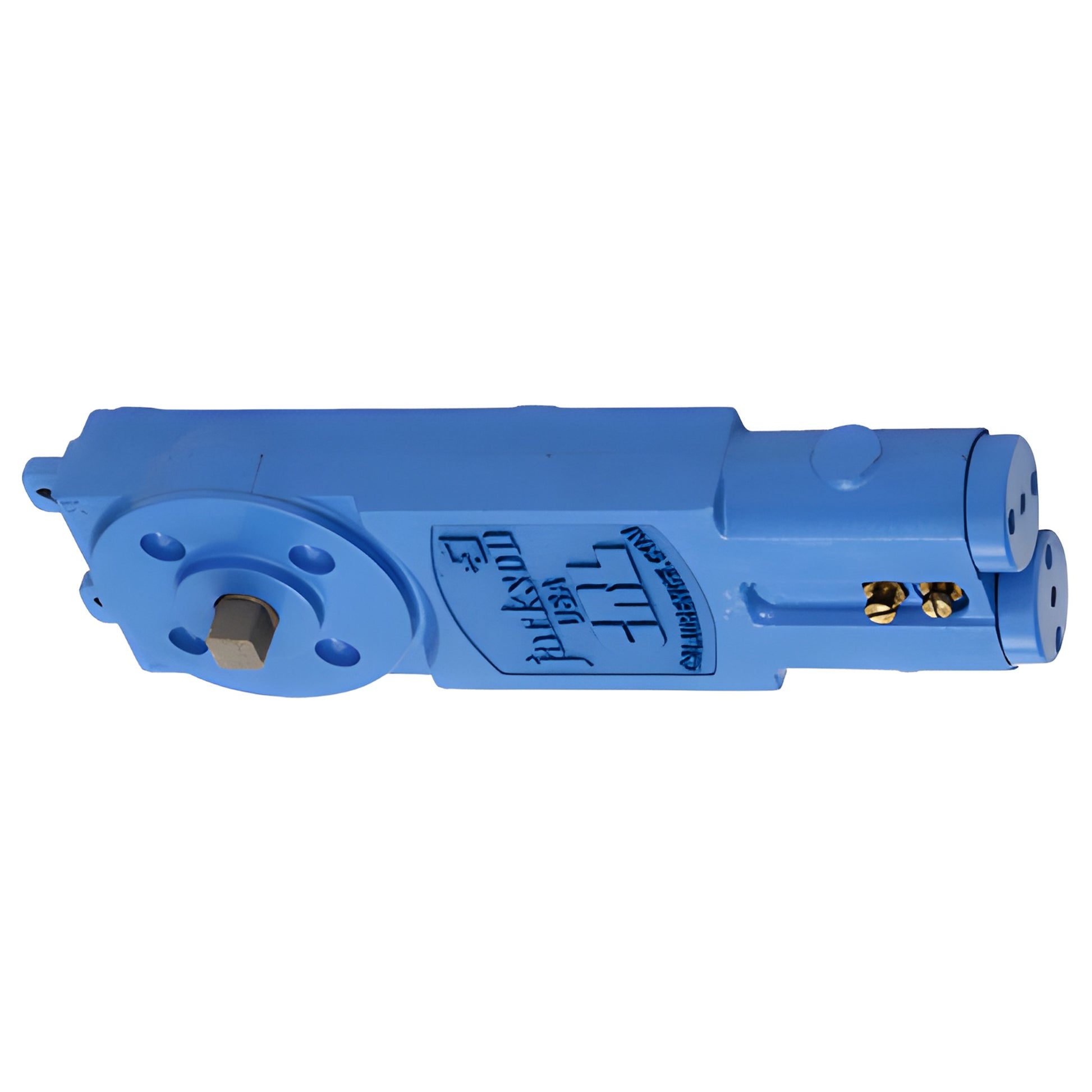

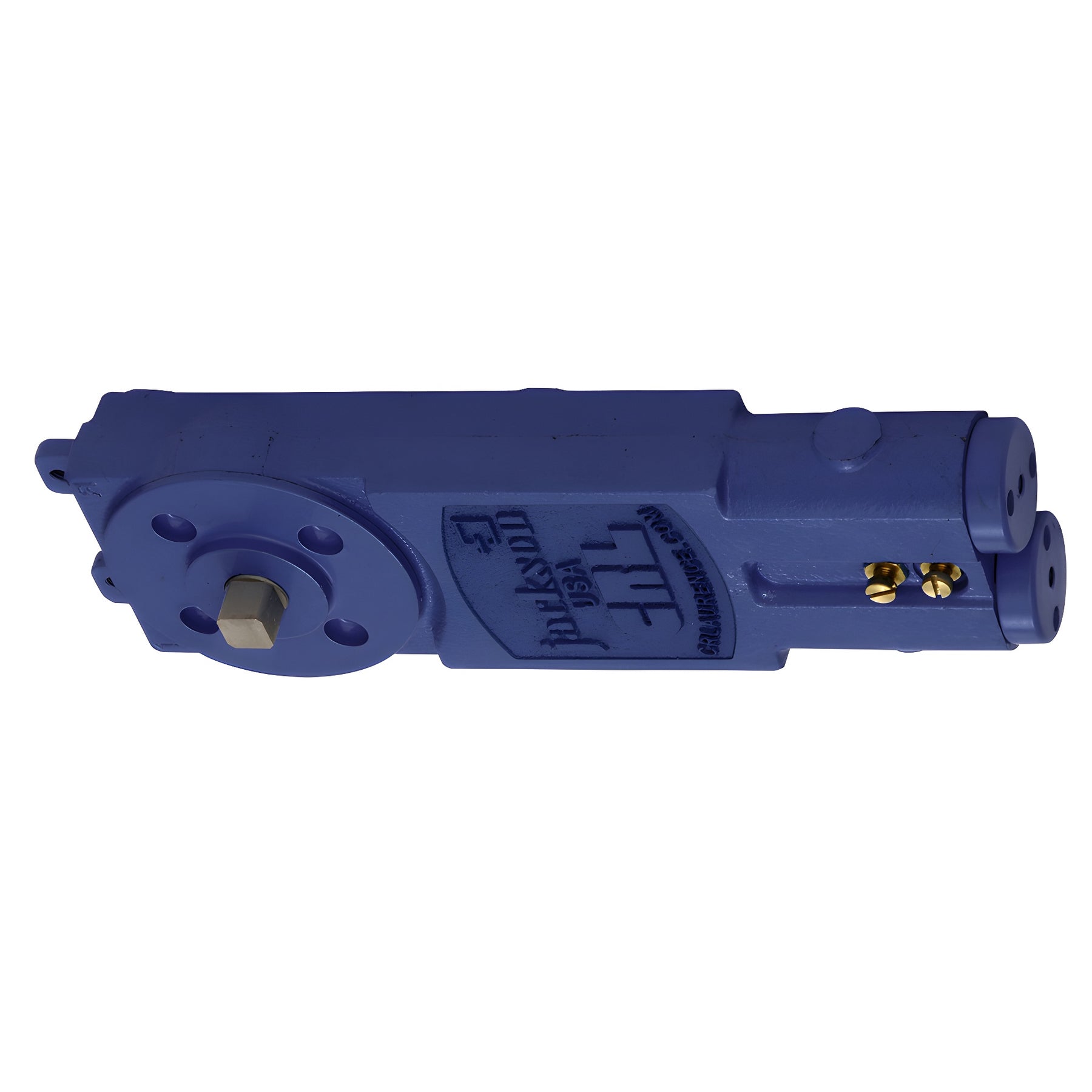

CRL Jackson® Adjustable Spring Power Multi Size 90º No Hold Open Overhead Concealed Closer Body
CRL Jackson® Adjustable Spring Power Multi Size 90º No Hold Open Overhead Concealed Closer Body
Regular price
$326.98 CAD
Regular price
Sale price
$326.98 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 20101M19
Shipping Weight: 9.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 9.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Americans with | Disabilities Act Yes |
| Body Height 1-11/16 in. | (42.9 mm) |
| Body Length 11-5/8 in. | (295.3 mm) |
| Body Width 3-11/16 in. | (93.7 mm) |
| Case Quantity | 4 |
| Closer | Type Overhead Concealed |
| Door Height 96 in. | (2438.4 mm) |
| Handing | Double Acting |
| Maximum Door Weight 250 lbs. | (113.4 kg) |
| Maximum Door Width - Exterior 42 in. | (1066.8 mm) |
| Maximum Door Width - Interior 36 in. | (914.4 mm) |
| No Hold Open | 90° |
| Recommended | Door Type Aluminum, Hollow Metal |
| Spindle 1/2 in. | (12.7 mm) |
| Spring | Size Adjustable |
| U | L Listed Yes |
Overview
The CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body is a versatile solution for doors ranging from 30" to 42" wide.
This door closer offers adjustable spring power from size 1 (Barrier-Free) to size 4 (Regular) and can retrofit existing fixed spring closers.
It features dual action valves for precise control over closing and latching speeds, making it compatible with standard and extended spindle models.
With a 5-year limited warranty, it's interchangeable with all Jackson® and similar overhead concealed closers, though it may not always meet A.D.A.
opening force requirements.
Ensure proper installation by contacting Jackson® Technical Sales for the correct mounting clip package.
Note: Colors may vary based on your monitor settings.
This door closer offers adjustable spring power from size 1 (Barrier-Free) to size 4 (Regular) and can retrofit existing fixed spring closers.
It features dual action valves for precise control over closing and latching speeds, making it compatible with standard and extended spindle models.
With a 5-year limited warranty, it's interchangeable with all Jackson® and similar overhead concealed closers, though it may not always meet A.D.A.
opening force requirements.
Ensure proper installation by contacting Jackson® Technical Sales for the correct mounting clip package.
Note: Colors may vary based on your monitor settings.
