CRL Jackson® Dark Bronze Concealed Overhead Closer 90° Hold-Open
CRL Jackson® Dark Bronze Concealed Overhead Closer 90° Hold-Open
Regular price
$465.79 CAD
Regular price
Sale price
$465.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21201U31320
Shipping Weight: 11.58 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.58 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Finish/Color
Dark Bronze
Handing
Non Handed
Hold Open
90°
Includes
20101M20, 201381, 20942313, 20368
Material
Aluminum
Maximum Door Weight
250
Package Type
Offset Arm U
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106313, 20117313, DCU4DUS, 20900LC313
Similar
21201S31318
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
7/8
UL Listed
Yes
Overview
- 'U' Offset Slide-Arm Hardware Package for Doors with 7/8" (22.2 mm) shallow top rails
- Spring power adjustable concealed closer for doors 30" to 42" (762 mm to 1.07 m) wide
- UL Listed, Ten Year Limited Warranty

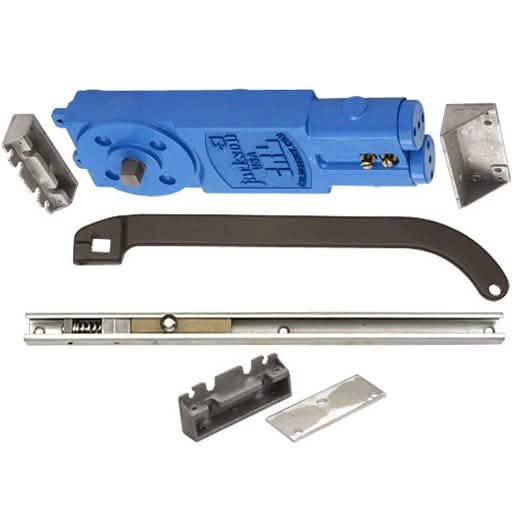

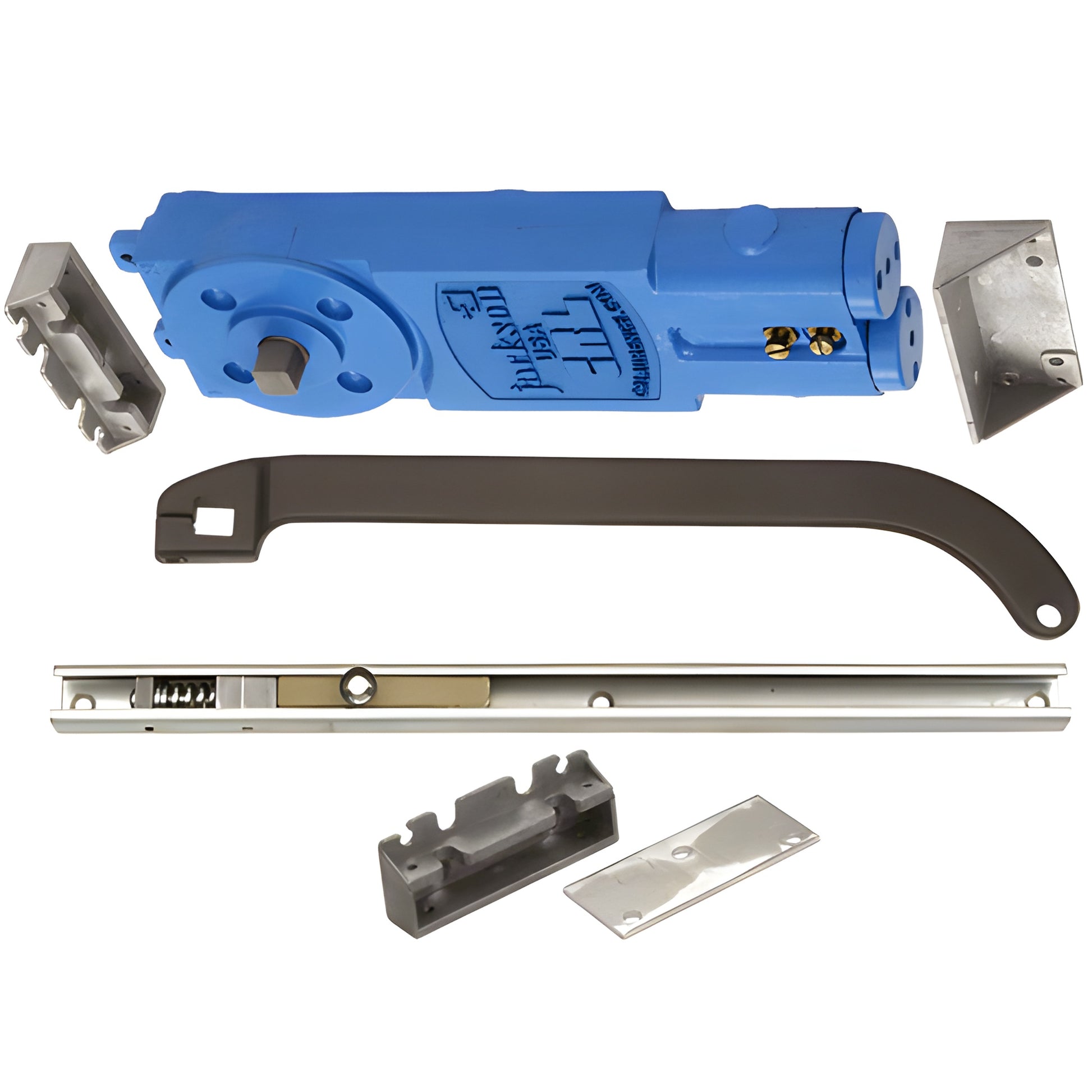

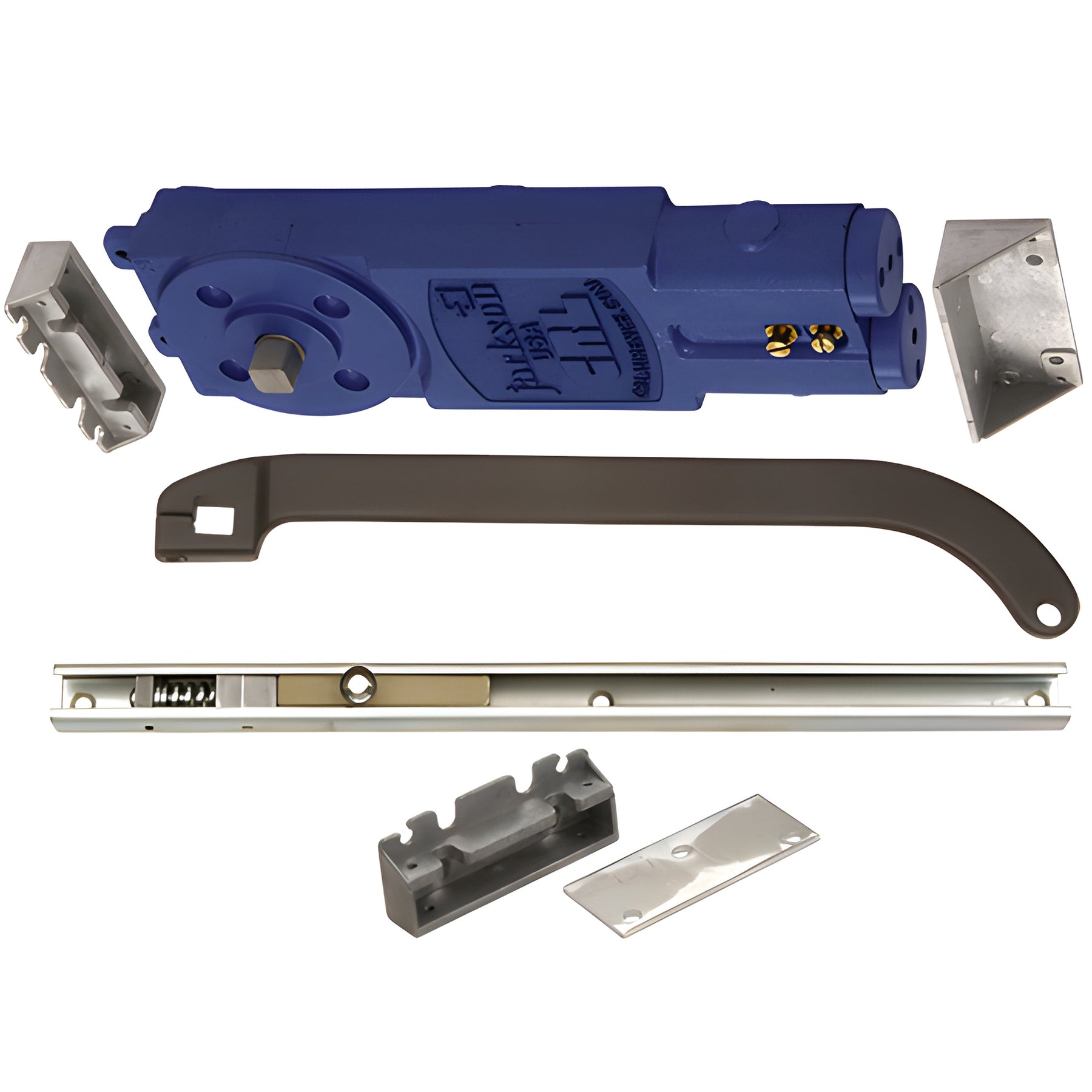

The CRL Jackson® 21201 Series Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package (SKU: 21201U31320) is a concealed overhead closer engineered for frameless and framed glass doors with 7/8" shallow top rails. Packaged complete with Cat. No. 201387 mounting clips, 20942 offset arm package, 20368 slide channel, and full installation instructions, this overhead concealed closer features dual independent valves for precise closing and latching speeds and a 90º hold-open capability. Spring power is adjustable (select spring size and function to suit door widths from 30" to 42"), and units install into standard 1-3/4" x 4" (or larger) header extrusions.
