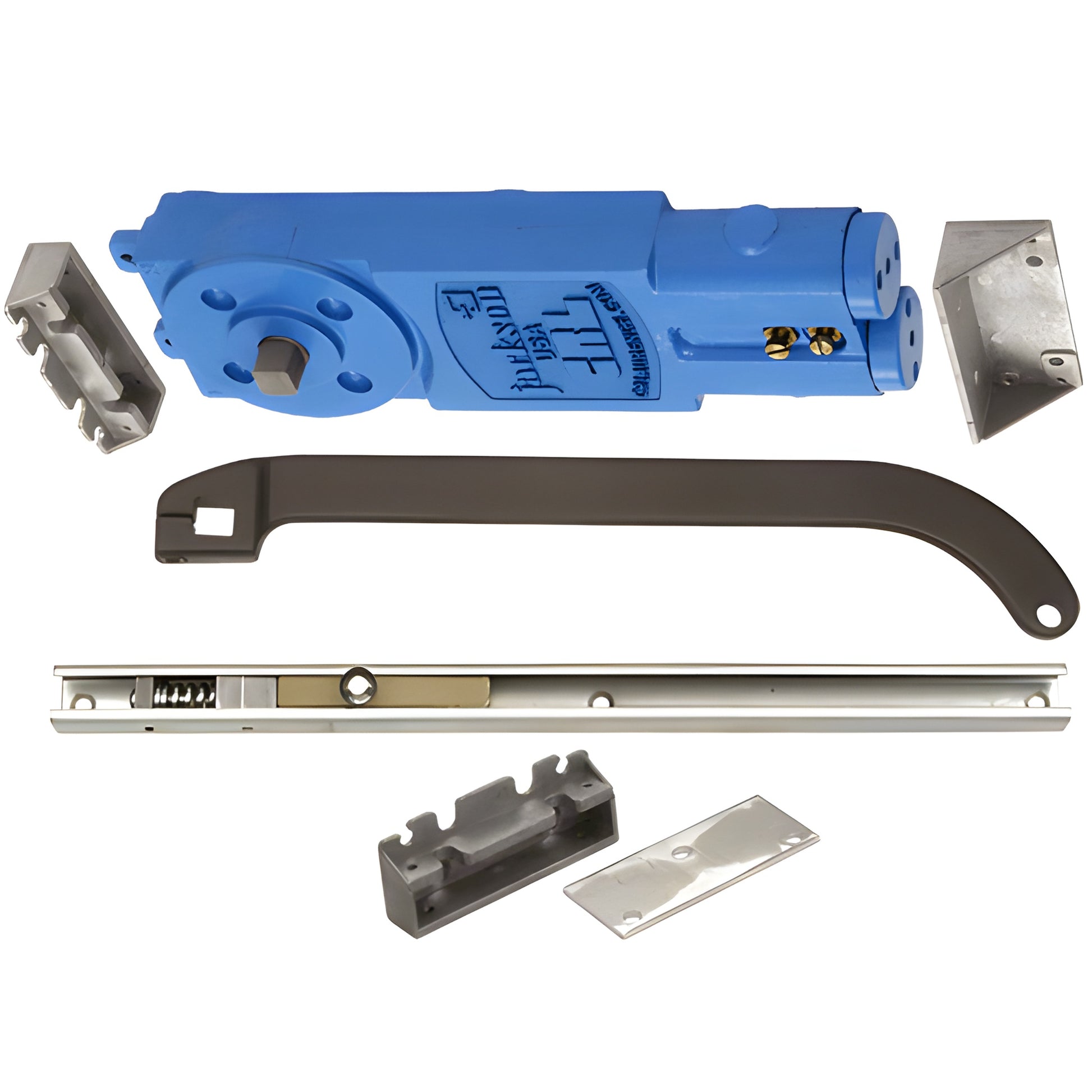

• Overhead concealed door closer kit (SKU 21201U31319) blue closer body, dark bronze U-arm, slide channel and brackets.
1 1

CRL

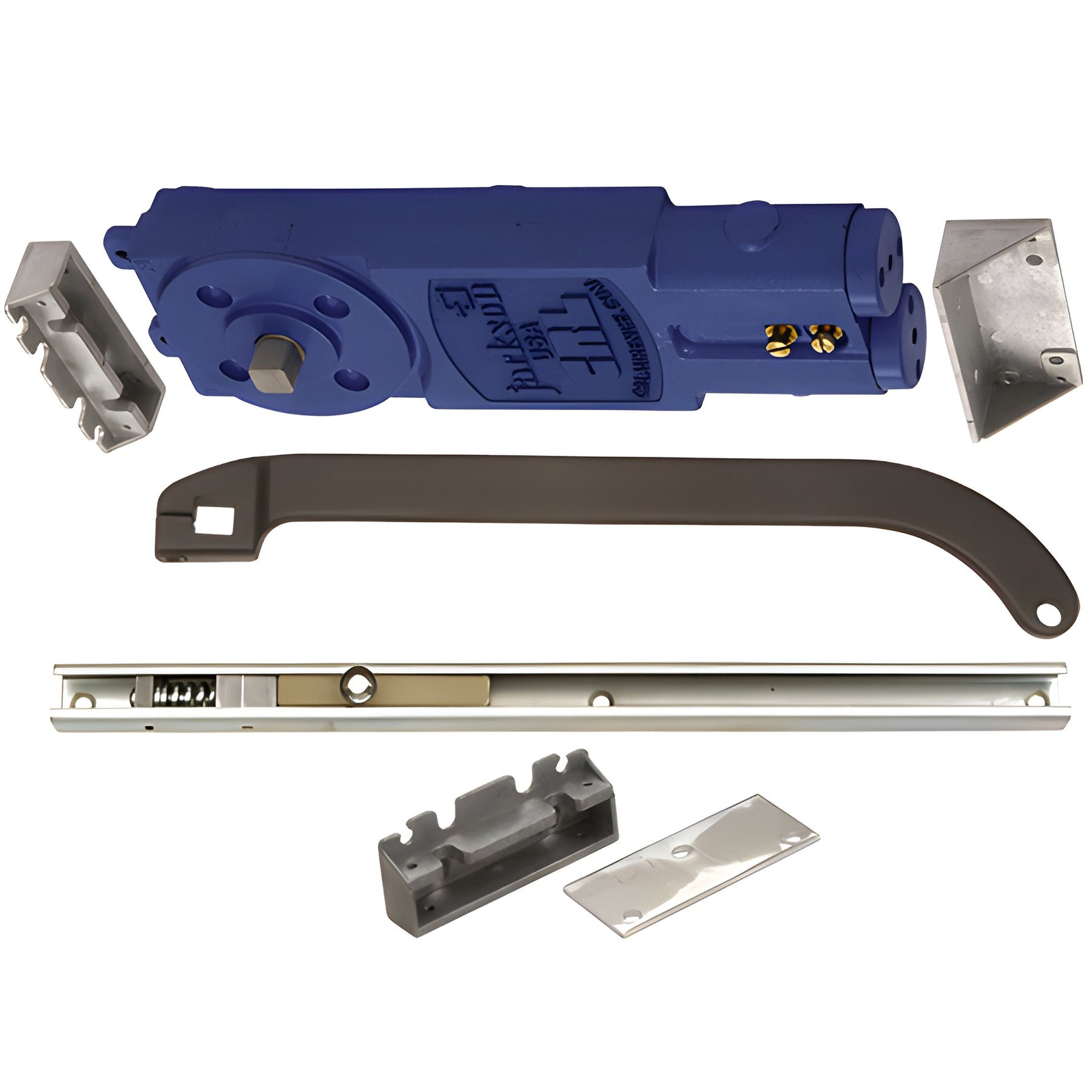

CRL Jackson® Dark Bronze Concealed 90° Door Closer, U-Offset Kit

CRL Jackson® Dark Bronze Concealed 90° Door Closer, U-Offset Kit

$465.79 CAD
$465.79 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 21201U31319
Shipping Weight: 11.58 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Finish/Color
Dark Bronze
Handing
Non Handed
Includes
20101M19, 201381, 20942313, 20368
Material
Aluminum
Maximum Door Weight
250
No Hold Open
90°
Package Type
Offset Arm U
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106313, 20117313, DCU4DUS, 20900LC313
Similar
21201S31317
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
7/8
UL Listed
Yes

Overview

  • 'U' Offset Slide-Arm Hardware Package for doors with 7/8" (22.2 mm) shallow top rails — ideal for retrofit and narrow-header applications
  • Spring power adjustable concealed closer for doors 30" to 42" (762 mm to 1.07 m) wide
  • U.L. listed with Ten Year Limited Warranty — durable, tested performance

The CRL Jackson® 21201 Series Overhead Concealed Closer (SKU: 21201U31319) combines a spring power adjustable closer mechanism with a 'U' offset slide-arm hardware package for reliable, low-profile operation in shallow top rails. Packaged complete with Cat. No. 201387 mounting clips, 20942 offset arm package, 20368 slide channel, and full installation instructions, this overhead concealed door closer features dual independent valves to fine-tune closing and latching speeds and a 90° no-hold-open function with fixed, adjustable spring power.


Designed to fit standard 1-3/4" x 4" (or larger) header extrusions. Most shipping weights are approximate; contact CRL Customer Service for exact weight or shipping cost details. Product images are representative; actual colors may vary with monitor settings.


Order the CRL Jackson 21201 overhead concealed door closer for dependable, low-profile closing—contact us to buy or request a quote.
