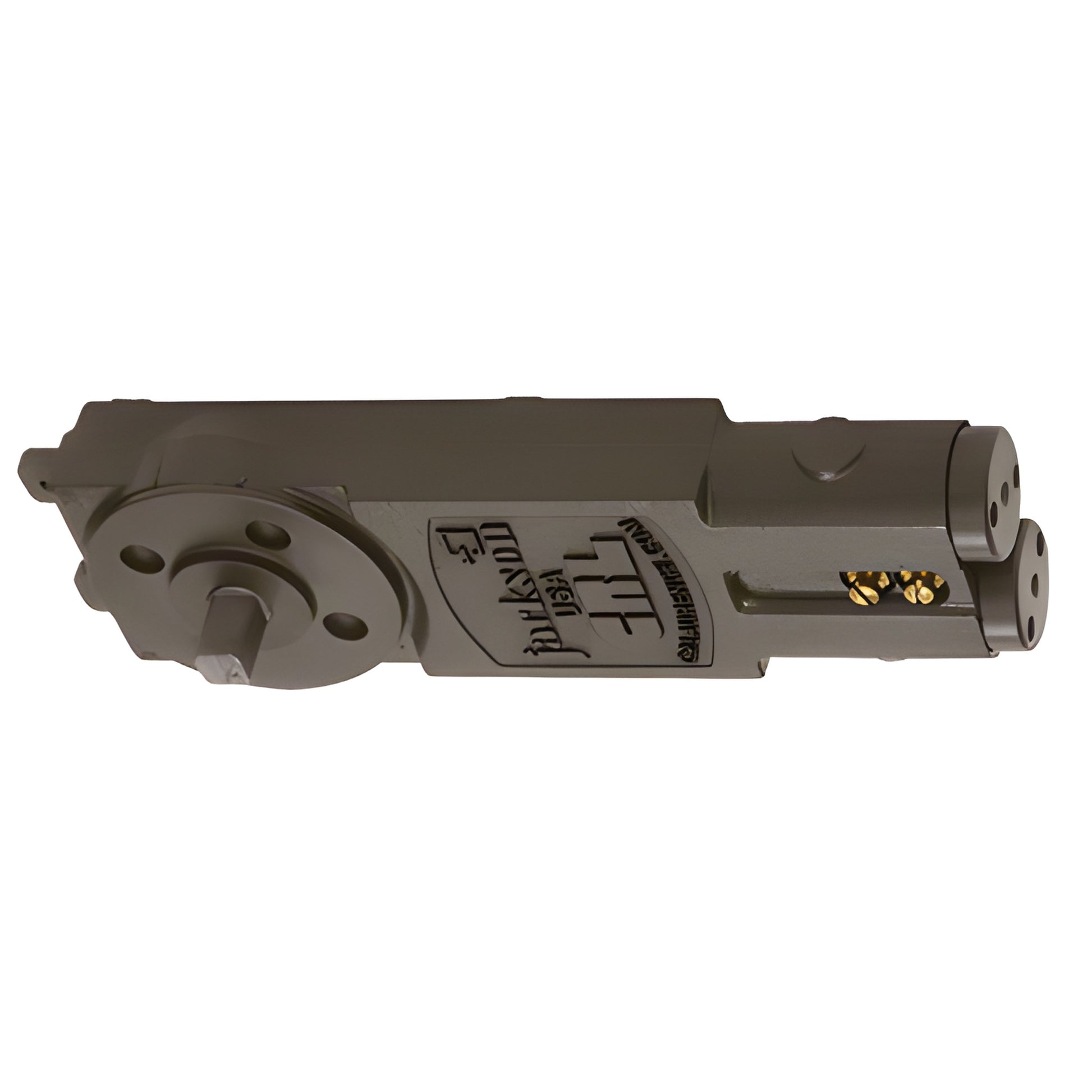

CRL Jackson® 7/8" Ext Spindle 105° No-Hold-Open Concealed Door Closer

CRL Jackson® 7/8" Ext Spindle 105° No-Hold-Open Concealed Door Closer

$316.69 CAD
$316.69 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 20104M09
Shipping Weight: 9.09 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Body Height
1-11/16 in. (42.9 mm)
Body Length
11-5/8 in. (295.3 mm)
Body Width
3-11/16 in. (93.7 mm)
Case Quantity
4
Closer Type
Overhead Concealed
Door Height
96 in. (2438.4 mm)
Handing
Double Acting
Maximum Door Weight
250 lbs. (113.4 kg)
Maximum Door Width - Exterior
48 in. (1219.2 mm)
Maximum Door Width - Interior
42 in. (1066.8 mm)
No Hold Open
105°
Recommended Door Type
Aluminum, Hollow Metal
Spindle
7/8 in. (22.2 mm)
Spring Size
Heavy Duty
UL Listed
Yes

Overview

  • Fits doors 36" to 48" (914–1219 mm) wide — ideal for commercial glass and aluminum doors
  • 7/8" (22 mm) extended spindle required for use with patch fittings and rail hardware

This CRL Jackson® Heavy-Duty 7/8" Extended Spindle 105º No Hold Open Overhead Concealed Closer Body (SKU 20104M09) is an overhead concealed door closer designed for commercial and architectural applications. Features include a 7/8" long spindle—preferred for compatibility with patch fittings and rail hardware—standard dual-action valves to adjust closing and latching speeds, and a fixed heavy-duty spring providing a 105° no-hold-open function. Designed to fit standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Interchangeable with Jackson® and similar overhead concealed closers for straightforward replacements and retrofits.



Product Warning:

Mounting clips are not included. If you do not reuse existing clips, purchase the appropriate mounting clip package for your header extrusion. Contact Jackson® Technical Sales for help selecting the correct clip package for your application.
