CRL Jackson® 7/8" Ext Spindle 90° Hold Open Overhead Concealed Closer
CRL Jackson® 7/8" Ext Spindle 90° Hold Open Overhead Concealed Closer
Regular price
$316.69 CAD
Regular price
Sale price
$316.69 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 20104M12
Shipping Weight: 9.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16 in. (42.9 mm)
Body Length
11-5/8 in. (295.3 mm)
Body Width
3-11/16 in. (93.7 mm)
Case Quantity
4
Closer Type
Overhead Concealed
Door Height
96 in. (2438.4 mm)
Handing
Double Acting
Hold Open
90°
Maximum Door Weight
250 lbs. (113.4 kg)
Maximum Door Width - Exterior
48 in. (1219.2 mm)
Maximum Door Width - Interior
42 in. (1066.8 mm)
Recommended Door Type
Aluminum, Hollow Metal
Spindle
7/8 in. (22.2 mm)
Spring Size
Heavy Duty
UL Listed
Yes
Overview
- Suitable for doors 36" to 48" (914 to 1219 mm) wide
- Requires longer 7/8" (22 mm) spindle when used with patch fittings and rail hardware

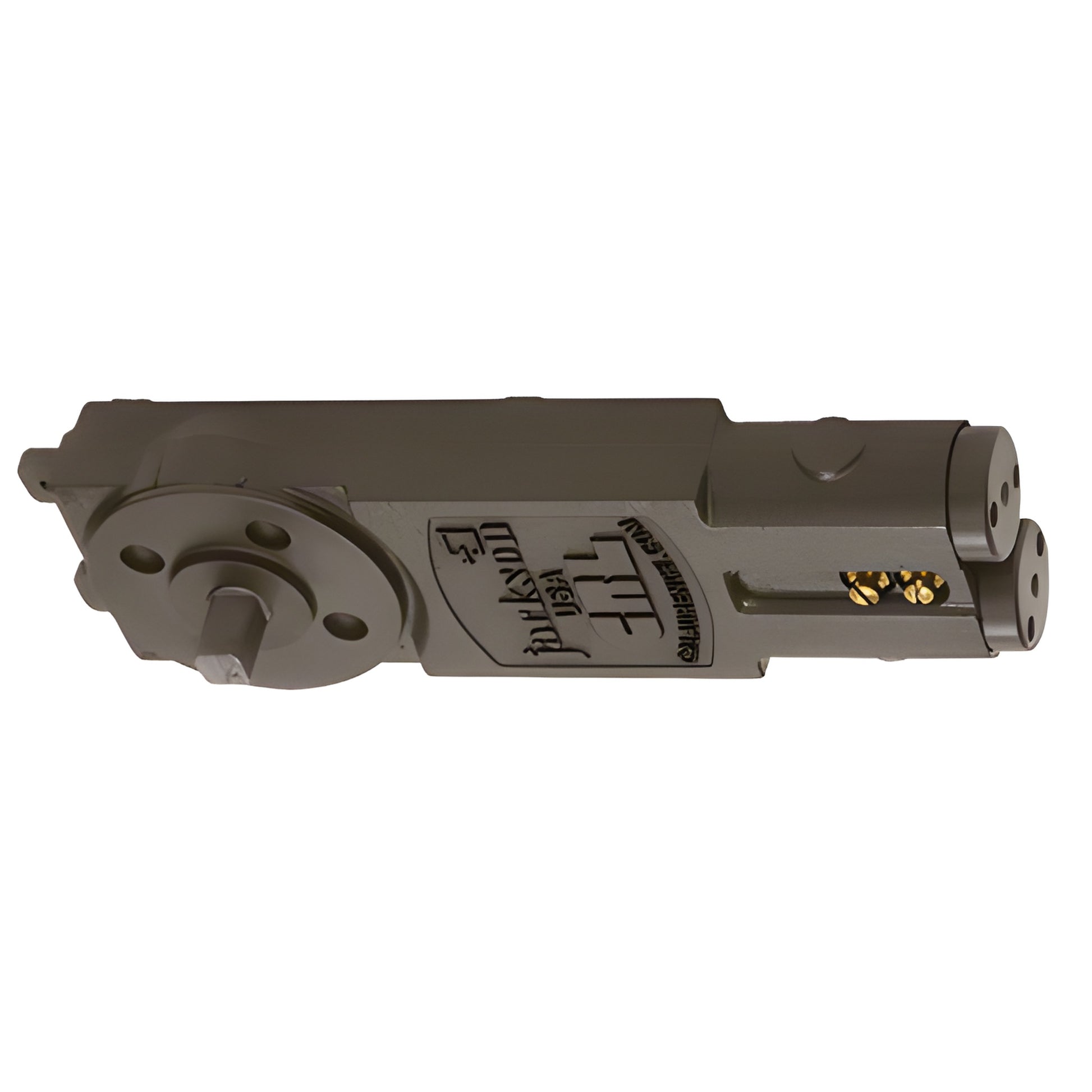

CRL Jackson® Heavy-Duty 7/8" Extended Spindle 90º Hold Open Overhead Concealed Closer Body — SKU: 20104M12
Heavy-duty concealed door closer body with a 7/8" (22 mm) extended spindle — ideal for use with patch fittings and rail hardware. Features standard dual-action valves to adjust closing and latching speeds and a 90º hold-open function with a fixed heavy-duty spring. Designed to fit into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Interchangeable with Jackson® and similar overhead concealed closers.
Product Warning
Mounting clips are not included. If existing mounting clips are not reused, purchase the appropriate clip package for your application. Contact Jackson® Technical Sales Department for assistance selecting the correct mounting clip package.
Benefits: Heavy-duty construction, extended 7/8" spindle for patch and rail hardware compatibility, 90º hold-open for controlled access — perfect for commercial doors 36"–48".
Order SKU 20104M12 today or contact CRL for technical assistance and clip package options.
