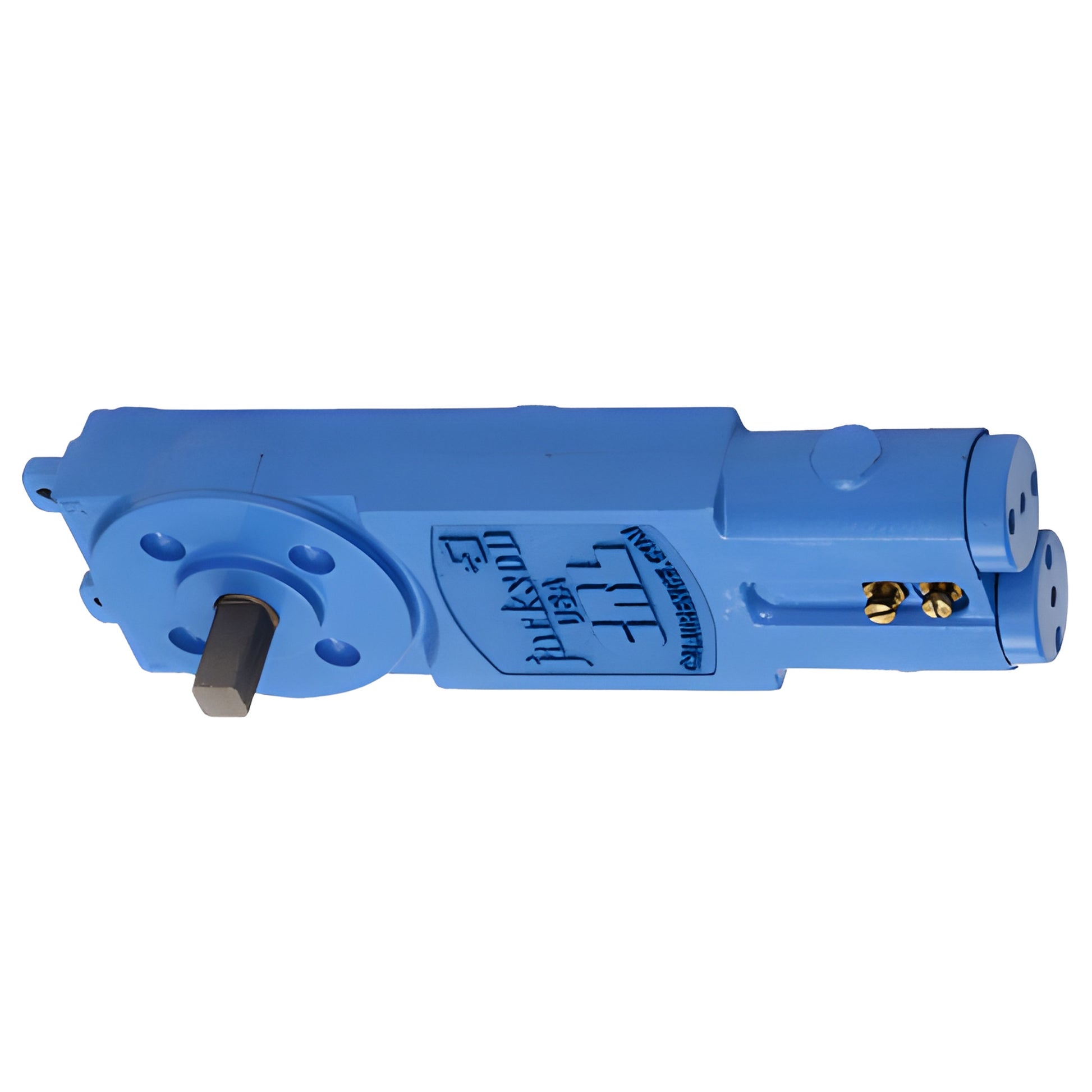

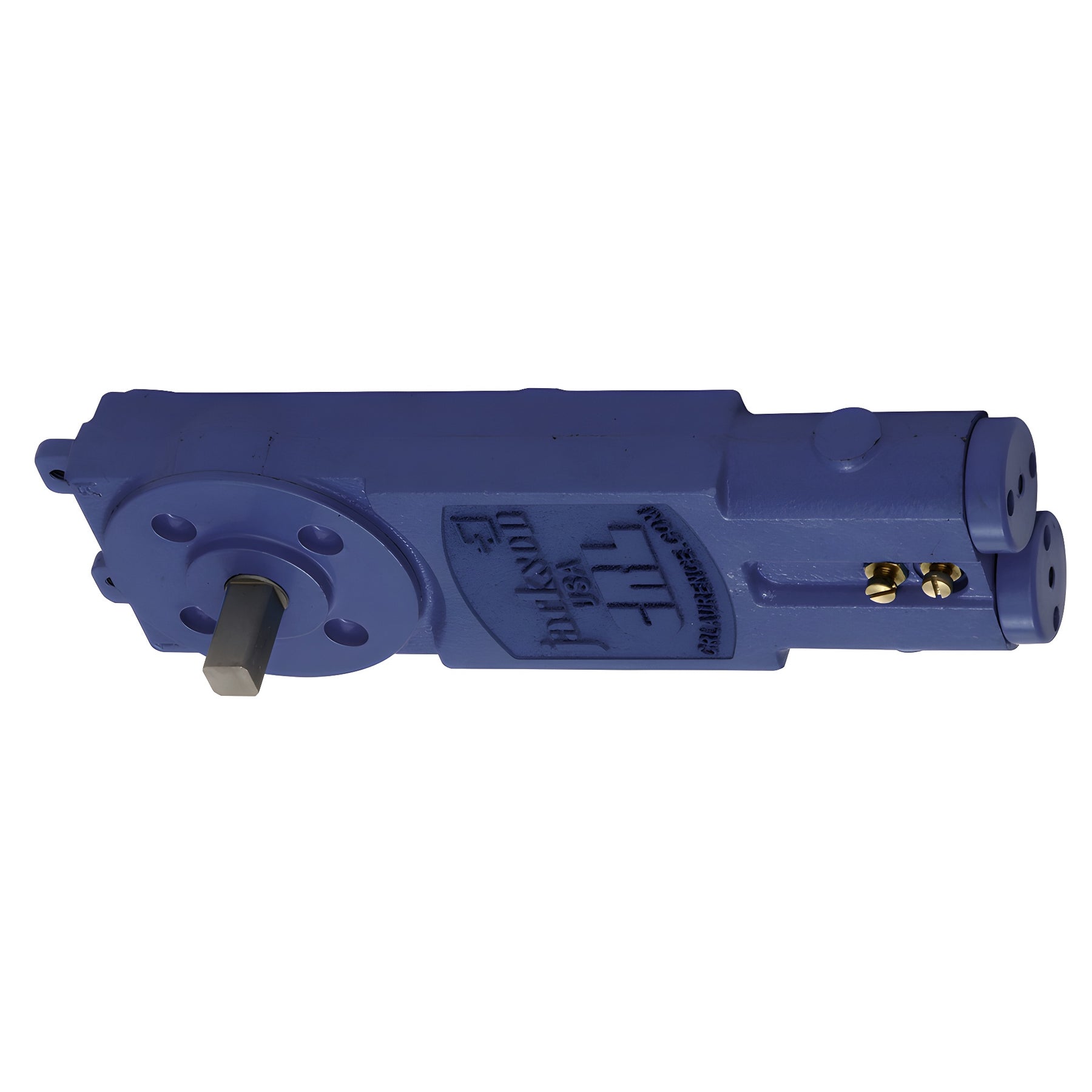

CRL Jackson Adjustable 90° Overhead Concealed Door Closer Body - No Hold Open
CRL Jackson Adjustable 90° Overhead Concealed Door Closer Body - No Hold Open
Shipping calculated at checkout.
Quantity
Increments of 24Minimum of 24
Couldn't load pickup availability
Item# 20106M19S
Shipping Weight: 5.872 Ounces
Shipping Limitations: None
Minimum Order Quantity: 24
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.872 Ounces
Shipping Limitations: None
Minimum Order Quantity: 24
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16 in. (42.9 mm)
Body Length
11-5/8 in. (295.3 mm)
Body Width
3-11/16 in. (93.7 mm)
Closer Type
Overhead Concealed
Customer Specific
Yes
Door Height
96 in. (2438.4 mm)
Handing
Double Acting
Maximum Door Weight
250 lbs. (113.4 kg)
Maximum Door Width - Exterior
42 in. (1066.8 mm)
Maximum Door Width - Interior
36 in. (914.4 mm)
No Hold Open
90°
Recommended Door Type
Aluminum, Hollow Metal
Spindle
1-13/64 in. (30.6 mm)
Spring Size
Adjustable
UL Listed
Yes
Overview
- Maximum adjustability for ADA requirements versus stack pressure
- Patented Dual Compression Technology — adjustable spring power sizes 2–4
- For ADA barrier-free applications
- Extra long 1-13/64" spindle for patch fittings and rail hardware — 90º no-hold
- U.L. Listed with a Five Year Limited Warranty
This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body (SKU: 20106M19S) is engineered for A.D.A. barrier-free applications and glass door installations. The extra long 1-13/64" spindle provides additional engagement when used with patch fittings or rail hardware. Spring power is adjustable from size 2 through 4 using Patented Dual Compression Technology for finer tension control and improved spring efficiency. Independent valves give maximum adjustability to balance building codes, variable stack pressure, and door closing requirements. This closer easily retrofits most fixed-spring overhead concealed closers and is widely used by professionals for ADA-compliant, overhead concealed closer solutions for glass doors.
Product Warning
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Mounting clips are not included. Unless existing mounting clips are reused, purchase the appropriate clip package for your application. Contact Jackson® Technical Sales Department for assistance selecting the correct Mounting Clip Package.
Order the CRL Jackson overhead concealed closer body (SKU: 20106M19S) today for reliable, adjustable ADA-compliant closing performance.
