Product Details
- Narrow Inset Multi-Lite Frame with Shelf and Deal Tray Designed for Windows Joined Together for Multiple Position Workstations
- Drawings and Specifications are Available Online
- Kynar Painted, You Specify Color

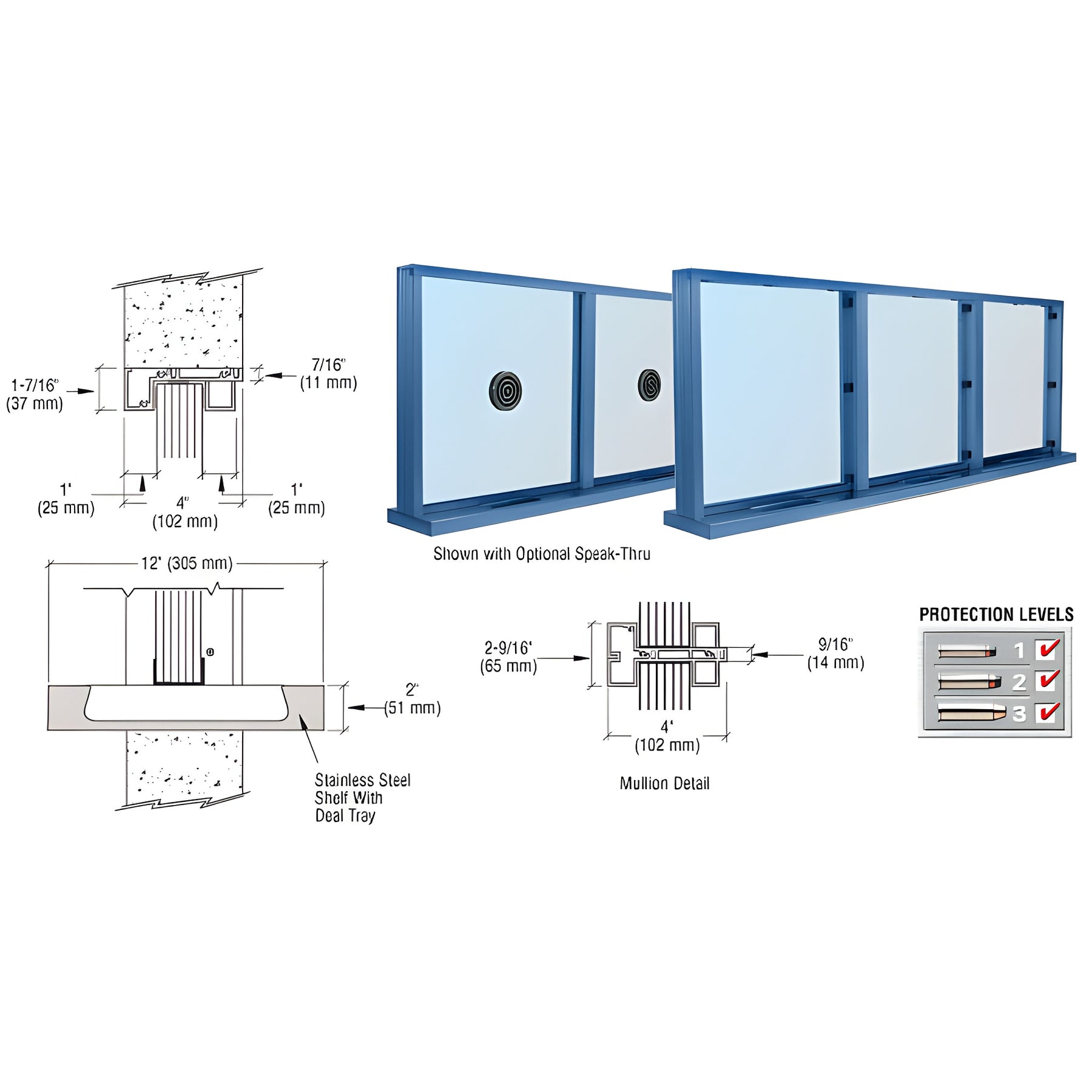

CRL Multi-Lite Narrow Inset Frame Windows are commonly used for installations with multiple workstations, such as those found in walk-up ticket offices in arenas, stadiums, movie theatres, and museums. Window options include speak-thrus, deal trays, shelves, drop downs, returns, and more. Narrow Inset Frame is designed for installation into walls at least 4" (102 mm) thick. For additional information, contact CRL Technical Sales Department.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection
Instructions Included
