Product Details
- Narrow Inset Frame with Stainless Steel Shelf and Built-in Non-Ricochet Bullet Resistant Deal Tray

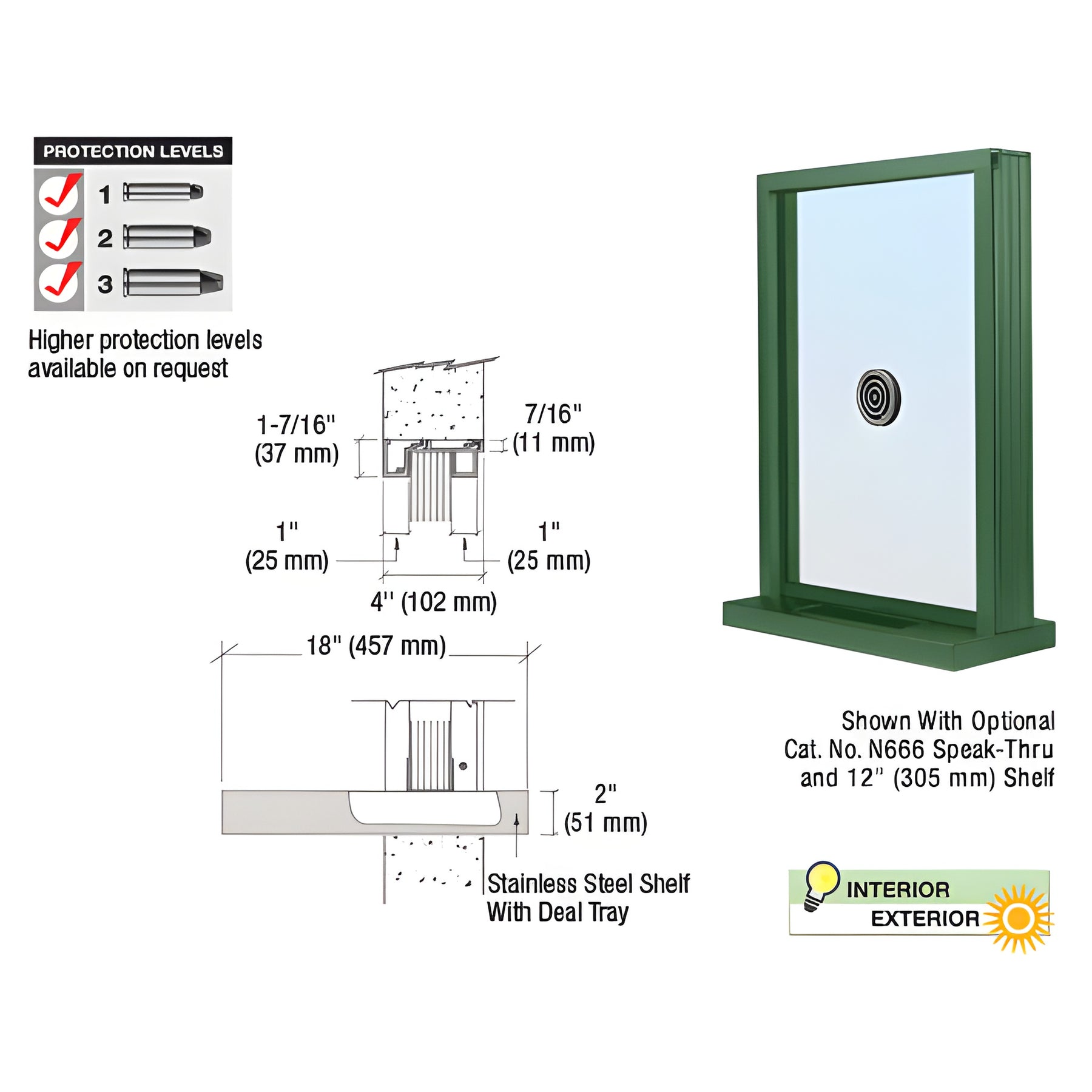

The Exterior Glazed Narrow Inset Frame Windows have a Stainless Steel Shelf with Non-Ricochet Bullet Resistant Deal Tray for passing currency, credit cards, tickets, and small articles. The extruded aluminum frame is designed for installation into walls at least 4" (102 mm) thick. The shelf is typically made in depths of 12" (305 mm) or 18" (457 mm). Added depth of the 18" (457 mm) shelf provides a convenient writing surface on the customer's side. The installer mounts the frame and shelf, then permanently seals the glazing material with the provided glazing tape.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" Level 1 Lexgard® (19 mm); 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection, Weather Flap/Drain Hole Options Available
Instructions included
