CRL Kynar® Painted Aluminum Clamp-On Exterior Glazed Vision Window

• Clamp-On Frame Vision Window typically used above built-in exchange drawers in walk-up installations
• Drawings and specifications available online
• Custom anodizing and KYNAR®/RAL powder coat color options available

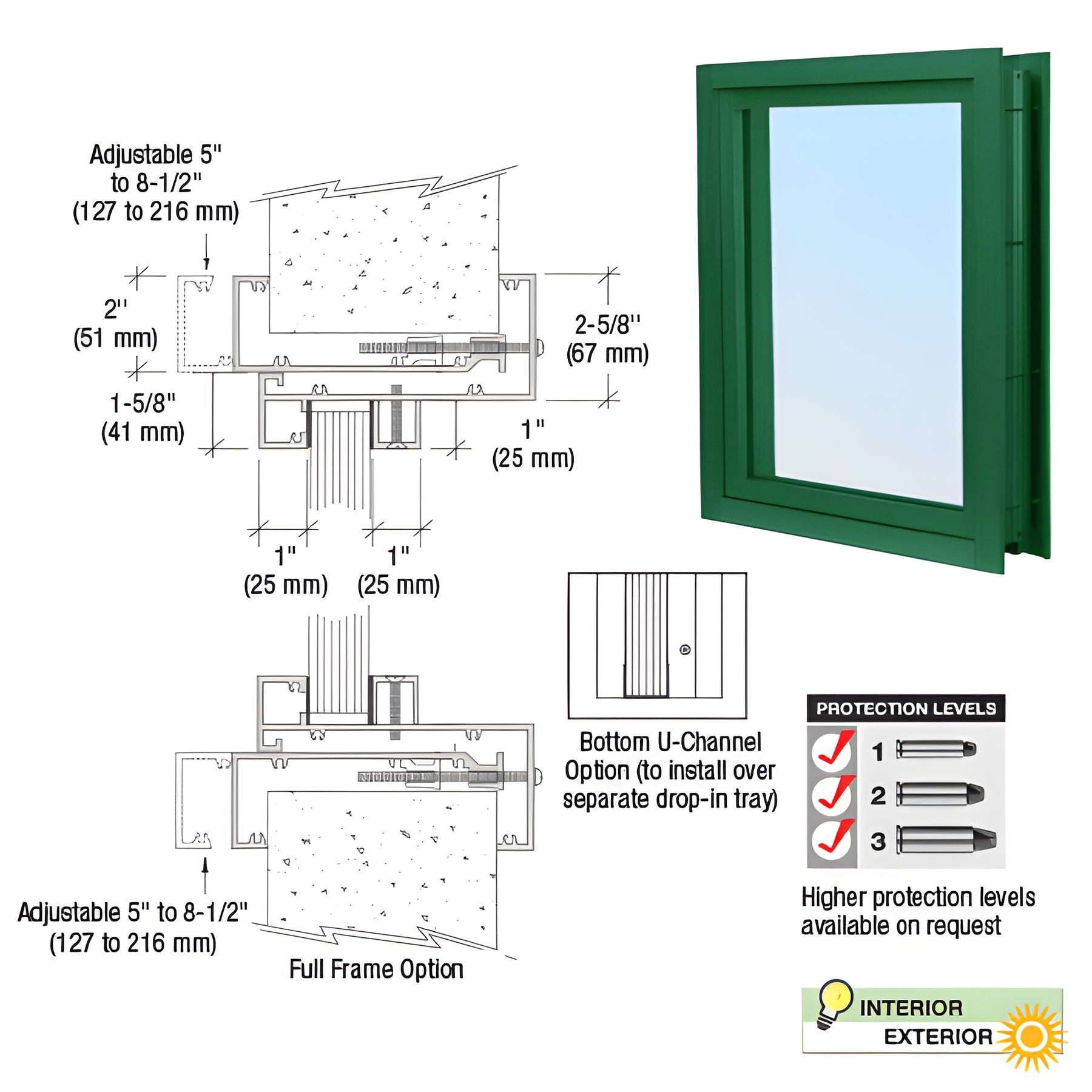

CRL Clamp-On Frame Vision Windows (SKU: C0VEK) are engineered for walk-up and teller applications where a secure, weather-tight vision window is required above transaction drawers or package receivers. The uniform four-sided aluminum frame clamps into wall openings 5" to 8-1/2" (127 to 216 mm) thick; interior tightening screws secure the unit. Choose from multiple glazing options for burglary and ballistic resistance, or order with a U-channel under the glazing to enable access to drop-in deal trays. Customers specify overall width and height when ordering.

Key differentiators:

• Clamp-on installation for retrofit and new-construction walk-up windows
• Wide range of glazing choices including Level 1–3 glass, Lexgard®, and glass-clad polycarbonate for enhanced security
• Custom finishes: satin anodized, Duranodic bronze, RAL powder coat or KYNAR® paint
• Optional U-channel for drop-in deal trays and easy transaction access

SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors
Instructions Included
