Product Details
- For 1-1/16" (25.52 mm) Laminated Tempered Glass (12 x 1.52 x 12 mm)
- Typically Used as the Base Channel for Glass Railing Systems or Windscreens
- Works with LTL10X TAPER-LOC® Taper Sets
- Engineering Reports Available
- CRL Recommends Consulting with the Glass Fabricator Prior to Wet Setting Laminated Tempered Glass
- CRL Glass Railing Systems Meets NBC Load Requirements When Installed in Accordance to ICC-3842

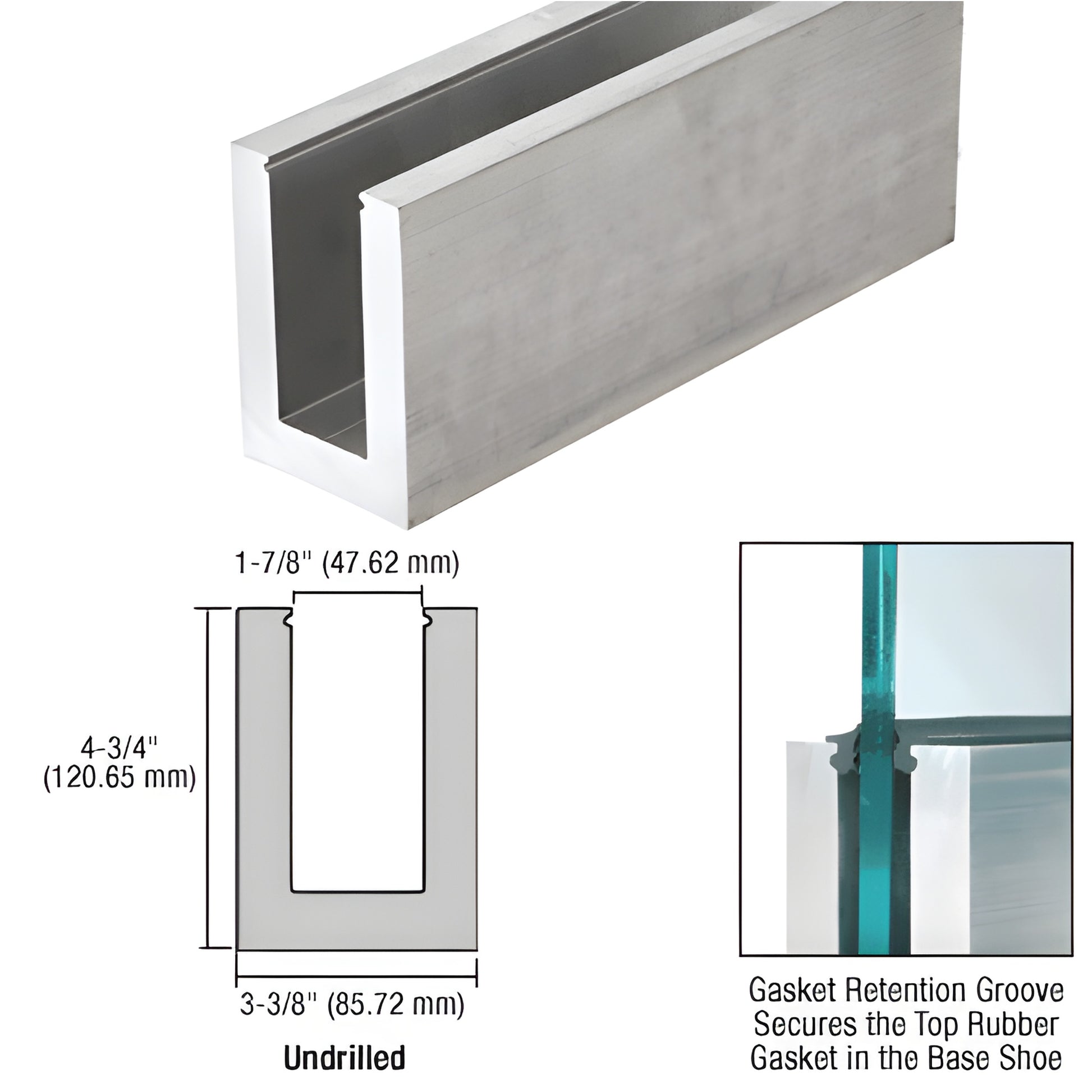

The CRL L25S Series Laminated Square Base Shoe is used as the base channel for glass railing systems. It can be clad in four choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
GLASS SPECIFICATIONS
For use with 1-1/16" (25.52 mm) Laminated Tempered Glass 1/2" x .060 x 1/2" (12 mm x 1.52 mm x 12 mm)
Thickness Range: 0.960" to 1.060" (24.40 to 26.92 mm) Will work with ASTM 1" (25.4 mm) Monolithic Tempered Glass Will not accommodate the full ASTM thickness range for 1-1/16" (27 mm) glass
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
