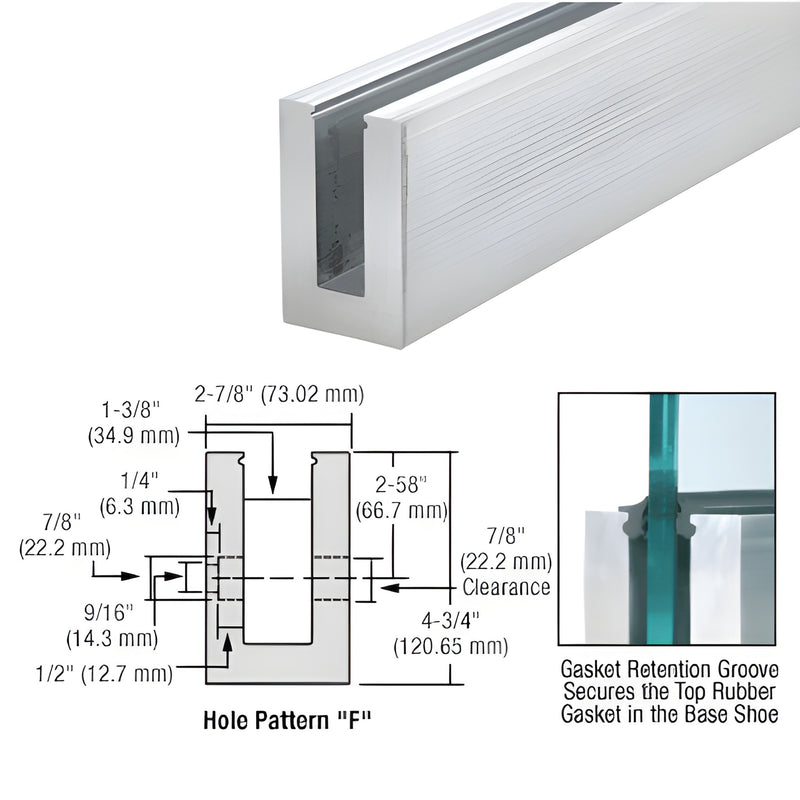

CRL L56S 10' Aluminum Base Shoe, Drilled Pattern F for 9/16" Glass

• For 9/16" (13.52 mm) laminated tempered glass (6 x 1.52 x 6 mm)
• Drilled and counter-bored 6" (152 mm) center-to-center; custom drilling to your specifications available
• Typically used as the base channel for glass railing systems or windscreens
• Compatible with LTL96X TAPER-LOC® taper sets
• Custom cutting and mitering service available
• CRL recommends consulting with the glass fabricator prior to wet setting laminated tempered glass
• CRL glass railing systems meet NBC load requirements when installed in accordance with ICC-3842

The CRL L56S Series Laminated Square Base Shoe (SKU: L56S10F6) is a heavy-duty base channel engineered for laminated tempered glass railing systems. Available in four architectural cladding finishes, this base shoe emphasizes secure substrate attachment with proven drilling patterns and fastener combinations. Ideal differentiators include factory pre-drilling with custom-drill options, compatibility with TAPER-LOC® systems, and compliance to ICC-3842 for code-conscious glass railing projects. A printed brochure with installation instructions, cleaning and refinishing techniques, and installation hints is available.

GLASS SPECIFICATIONS:
For use with 9/16" (13.52 mm) laminated tempered glass (6 x 1.52 x 6 mm)
Thickness range: 0.497" (12.62 mm) to 0.549" (13.94 mm)

Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder-coated cladding applied over the base shoe is the recommended finish method.

All pre-drilled CRL base shoes have a +1/8" (3 mm)/-1/16" (1.5 mm) tolerance between each hole. Before drilling installation holes in the concrete or steel substrate, place the base shoe in its planned final position and mark hole locations on the substrate.


Contact CRL Customer Service to request the brochure, custom drilling, or a quote.
