- Supports Sliding Door
- Includes Two LS104CAP End Caps
- Minimum Panel Width: 37-13/16" (960 mm)
- Maximum Panel Width: 53-9/16" (1.36 m)
- Maximum Panel Weight: 220 Lbs. (100 kg)
- The panel height should never exceed 2.5 times the width of the panel.
- Maximum available length of the top track is 104" (2.64 m). Please contact our Technical Sales Department if any of these limitations cannot be met. Product Warning: STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures. NOTE: These fittings are not to be used with laminated glass. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted. Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
This

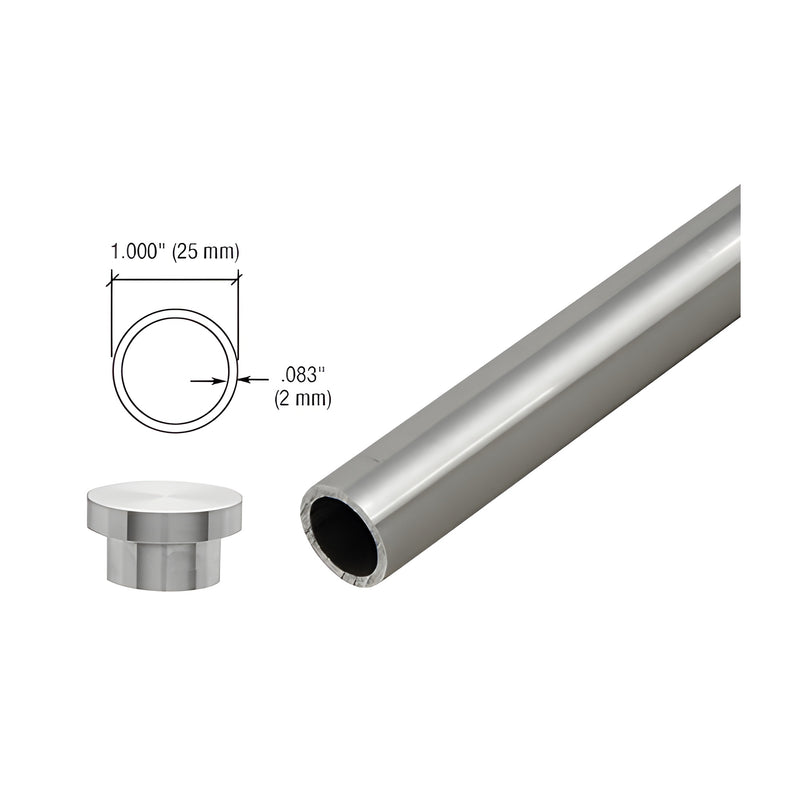

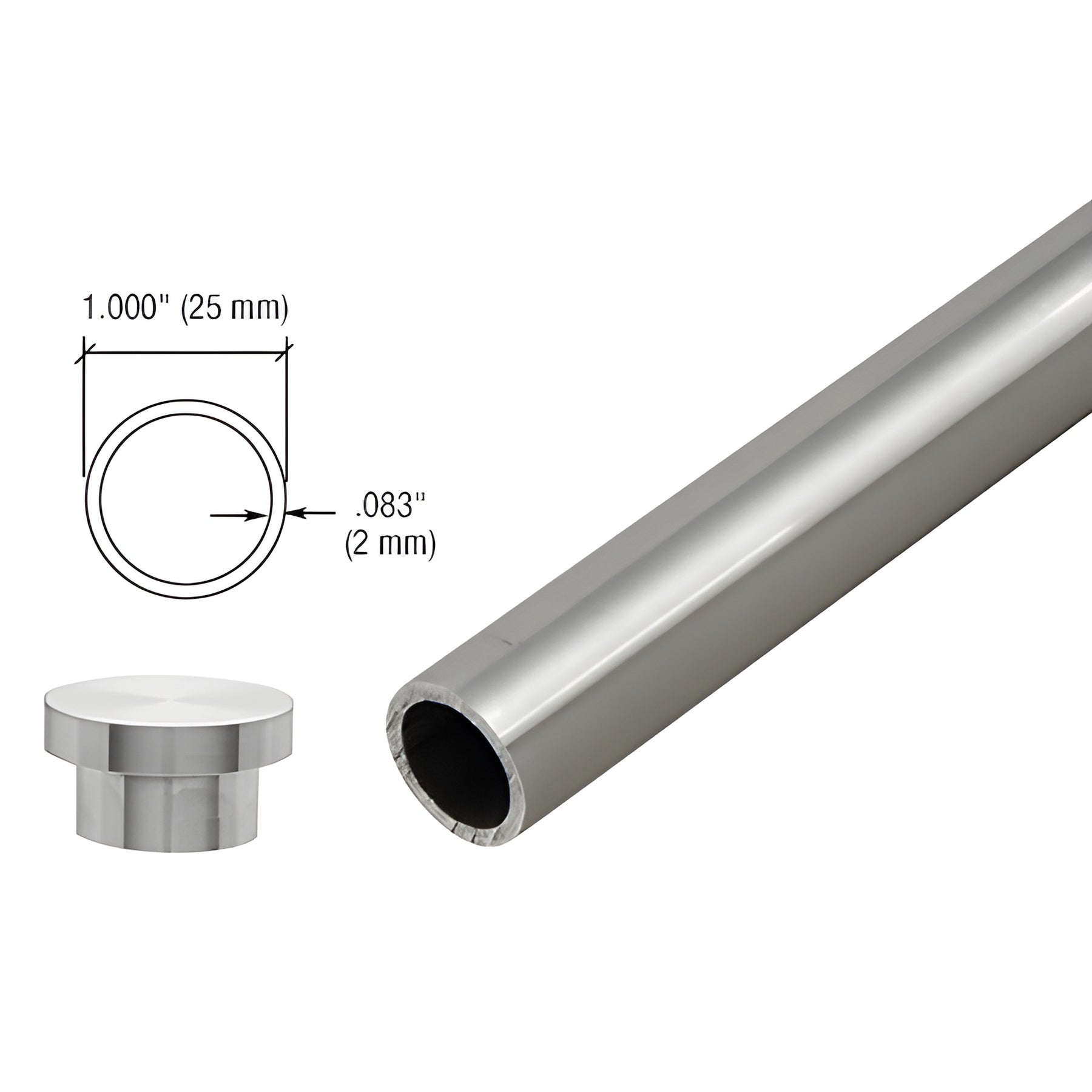

CRL Top Sliding Tube
provides support for the sliding door when properly attached to walls using Cat. No. LS302BS Top Sliding Tube Wall Mount Clamps, or to glass panels when using Cat. No. LS303BS Top Sliding Tube Glass Mount Clamp Fittings.
SYSTEM LIMITATIONS
The following are recommended limitations for this system:
Minimum Panel Width: 37-13/16" (960 mm)
Maximum Panel Width: 53-9/16" (1.36 m)
Maximum Panel Weight: 220 Lbs. (100 kg)
The panel height should never exceed 2.5 times the width of the panel.
Maximum available length of the top track is 104" (2.64 m).
Please contact our Technical Sales Department if any of these limitations cannot be met.
Product Warning
STRUCTURAL DISCLAIMER
- All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
NOTE
These fittings are not to be used with laminated glass.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
