CRL Large Stainless Steel Glass-to-Glass UV Swing Hinge for Shower
Item# UV6261
Shipping Weight: 4.96 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.96 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2
Height
31/32 in. (25 mm)
Material
Stainless Steel
Maximum Weight Capacity
44 lbs.(20 kg)
Width
19/32 in. (15 mm)
Wrist Circumference
1/2 in. (12 mm)
- Designed for inset glass doors (Inset Doors)
- Fabricated from stainless steel with a brushed finish
- Not available in Europe (10 kg)
- Not available for sale in Germany

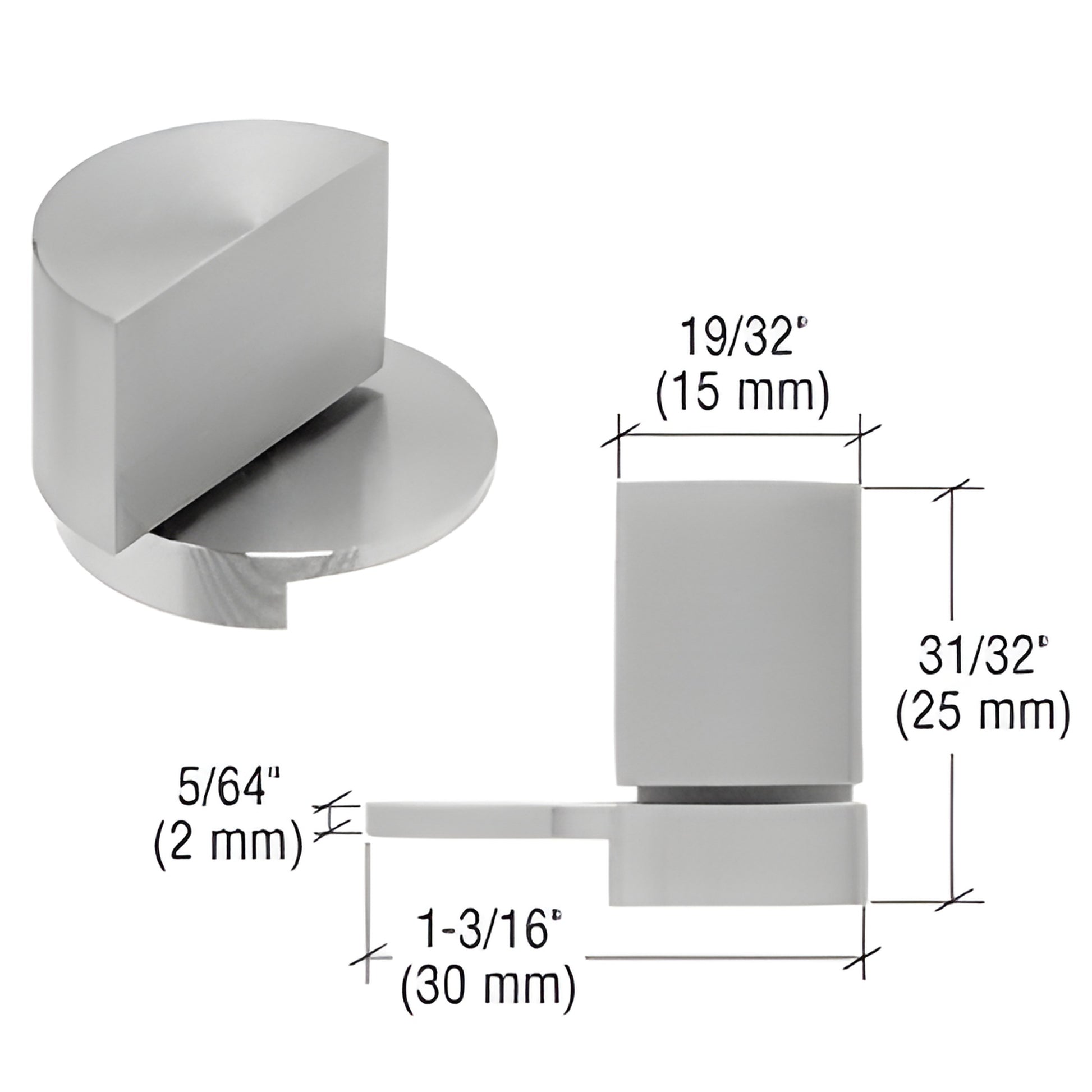

CRL's UV Glass-to-Glass Hinges (SKU: UV6261) are engineered for all-glass showcase and display applications. This two-part top-and-bottom hinge set is fabricated from stainless steel in a brushed finish and bonds to inset glass doors up to 1/2" (12 mm) thick. The bottom hinge includes a threaded pin for quick door installation or removal after bonding. Minimum order: one pair (top and bottom). These glass-to-glass hinges are an ideal long-tail solution for inset glass door hardware, museum cases, commercial showcases, and retail display cabinets.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section below.
Order UV6261 glass-to-glass hinges today to outfit inset glass doors for showcases and displays—contact CRL Customer Service to confirm availability and shipping.
