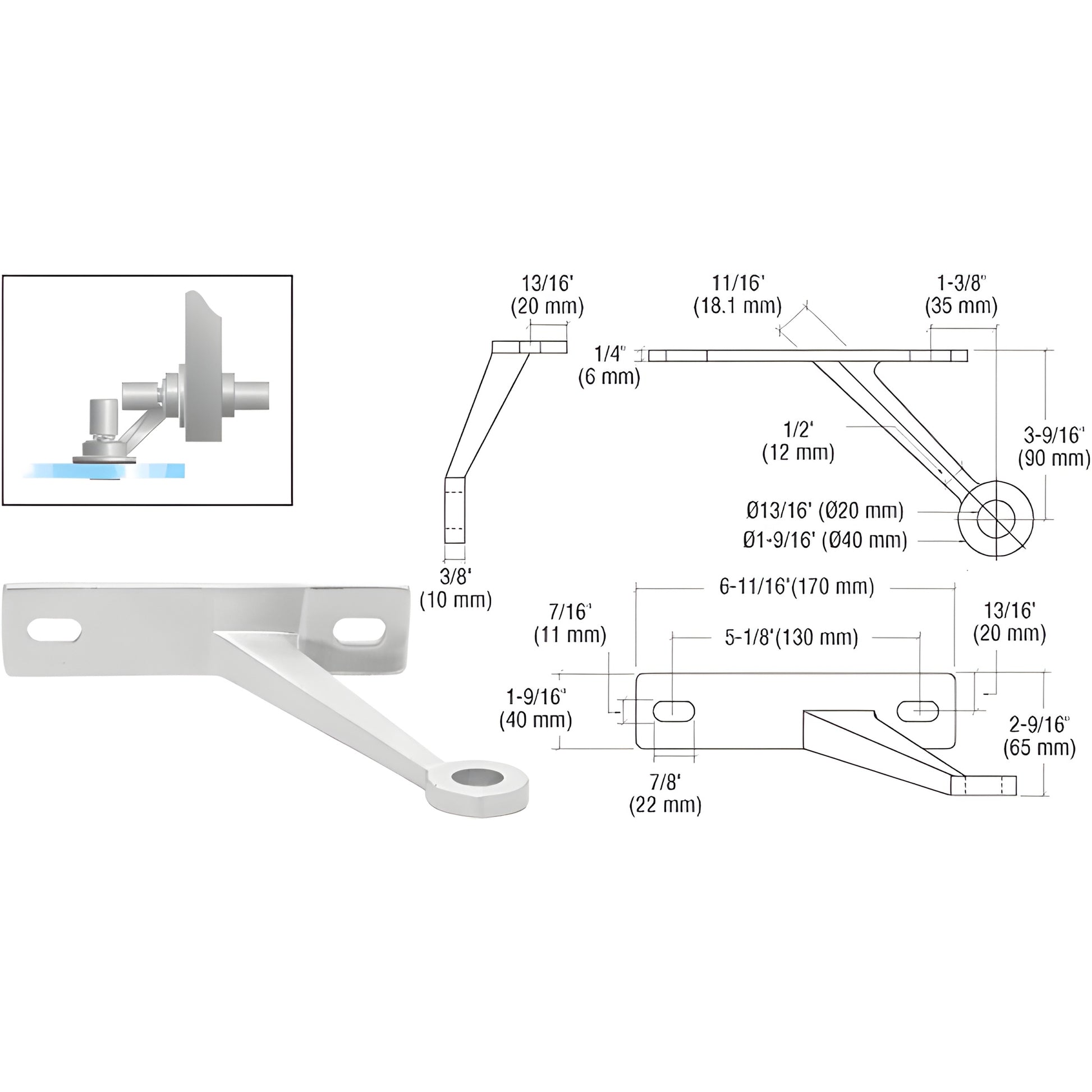

• Stainless steel glass-to-wall standoff bracket SKU FMR1LHPS - angled arm, circular stud hole, mounting plate, drawing.
1 1

CRL

CRL Left-Hand Stainless Steel Spider Fitting Single-Arm Wall Mount

CRL Left-Hand Stainless Steel Spider Fitting Single-Arm Wall Mount

$126.98 CAD
$126.98 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# FMR1LHPS
Shipping Weight: 15.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Overview

  • For use with 3/8" or 1/2" (10 or 12 mm) tempered glass, or 9/16" (13.52 mm) laminated tempered glass
  • Complete with hardware to mount to wall or structural glass fin
  • Glass attachments sold separately — use monolithic tempered glass

This glass-to-wall standoff fitting (SKU: FMR1LHPS) secures a single glass panel to a wall or structural glass fin. Includes two M10‑1.5 × 65 mm (2‑9/16") stainless steel threaded studs and four matching cap nuts with washers. Replacement stud set is available.

For companion fittings, use Cat. No. FMR1RHBS, FMR1RHPS, FMR2VBS, FMR2VPS, FMR4BS, or FMR4PS.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and how your monitor's color is adjusted.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.

Order FMR1LHPS now to get stainless steel glass-to-wall mounting hardware with included studs and cap nuts.
