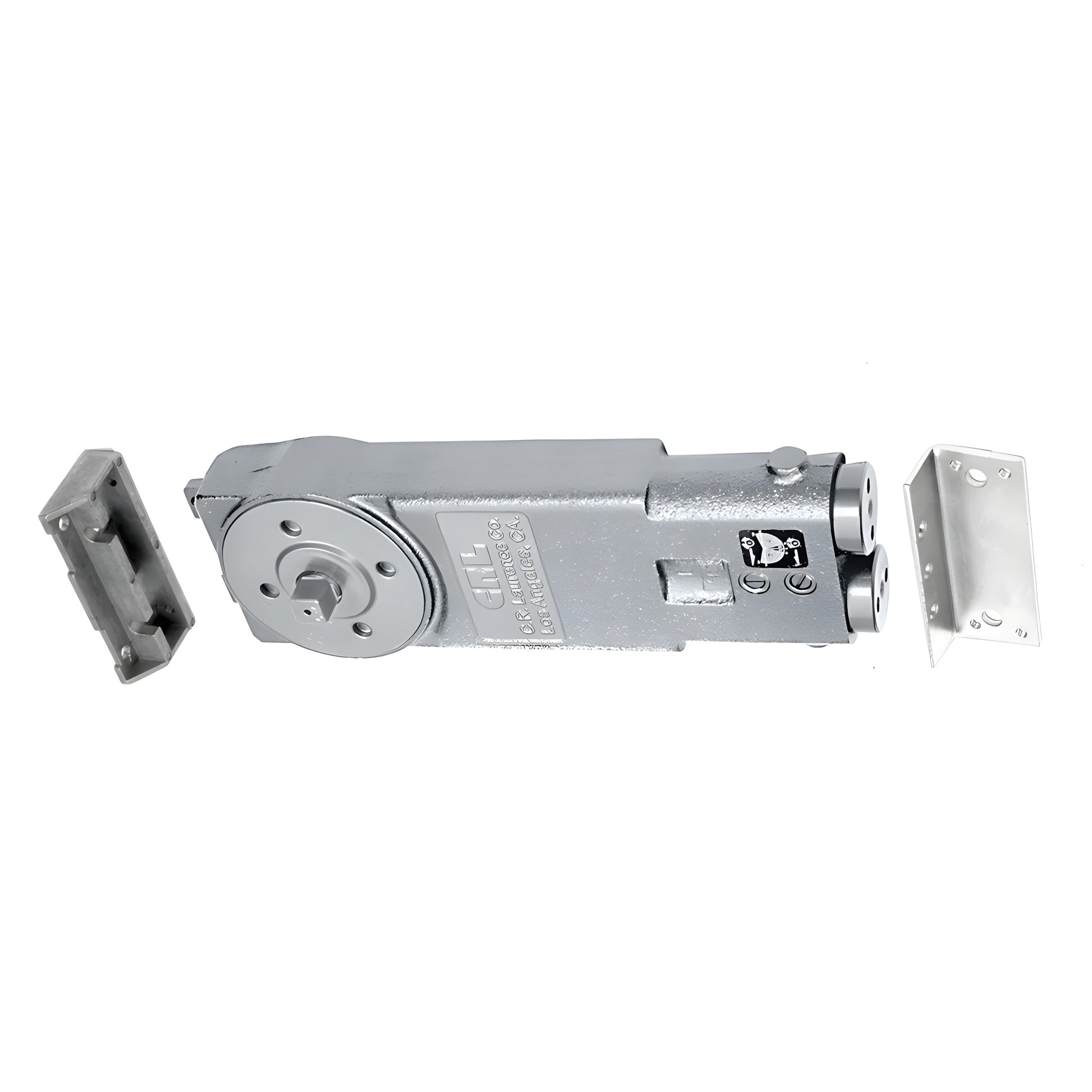

CRL Light-Duty Overhead Concealed Closer 105° No Hold-Open (Body Only)

• Interchangeable with all Jackson® style overhead concealed door closers
• 20 models available (SKU: CRL7072)
• Conveniently packaged with mounting clips, templates, and instructions
• 5‑year limited warranty
• UL listed

Save time and cost by replacing only the door closer body with mounting clips—ideal as a replacement part or to build a custom Jackson® style overhead concealed door closer package. Add the specific accessories you need (pivots, arms, etc.) to create the exact door closer configuration for the job. Each body ships with mounting clips, templates, and installation instructions for fast retrofit or new installs.

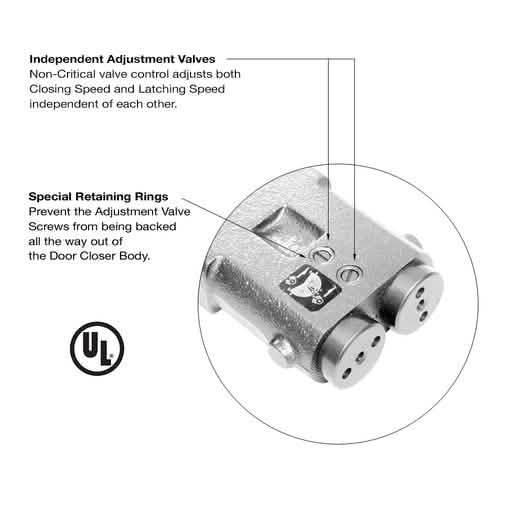

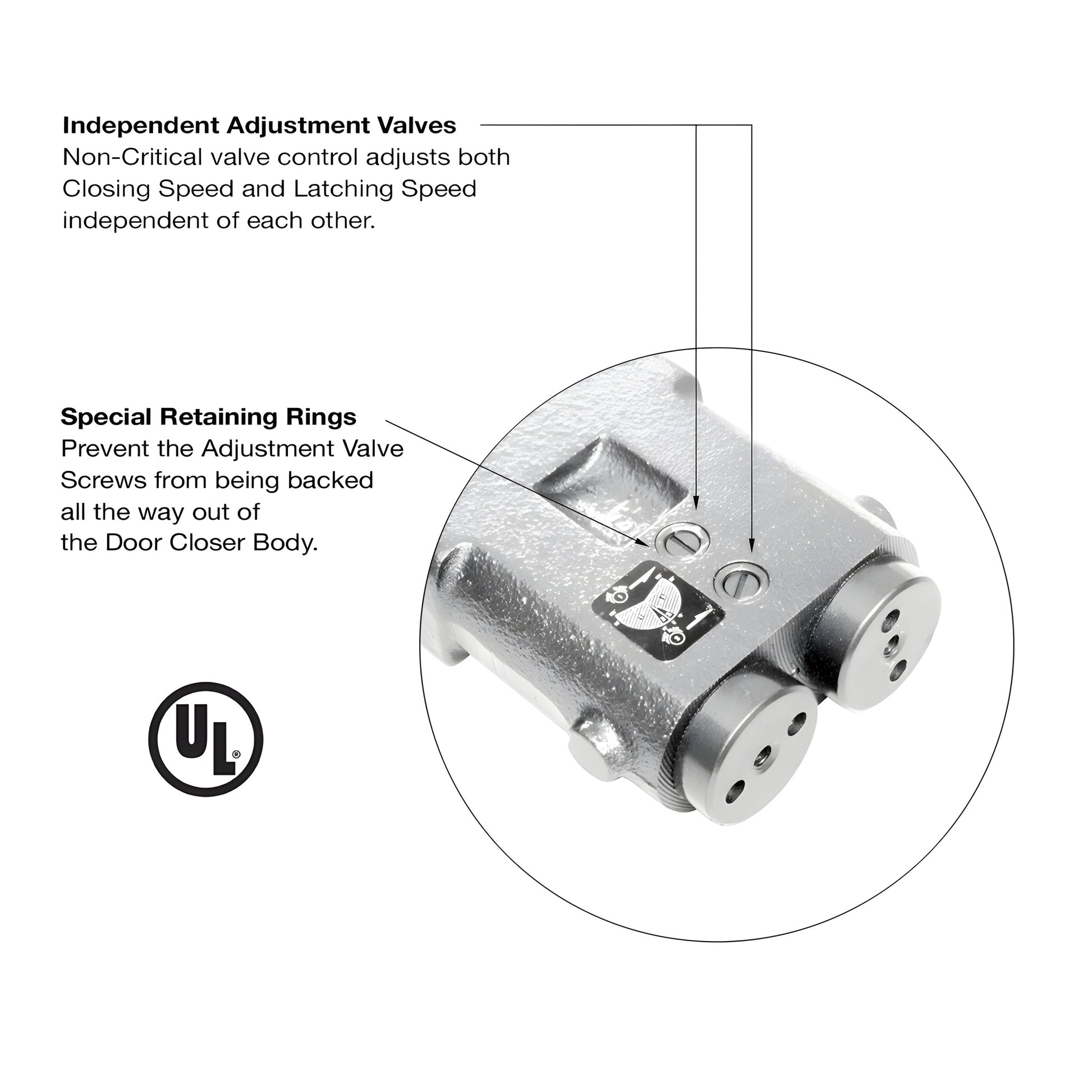

Independent Adjustment Valves
Non‑critical valves let you set closing speed and latching speed independently for precise, reliable operation.

Special Retaining Rings
Retaining rings prevent adjustment valve screws from being backed out of the door closer body, reducing service calls and downtime.

Note: Install an auxiliary floor or overhead door stop to prevent damage from over‑extension of maximum door swing.

Weight and Size Limitations
Door weight: 200 lbs. (91 kg)
Exterior door width: 42" (1.07 m)
Interior door width: 48" (1.22 m)
Door height: 96" (2.44 m)

Order CRL7072 today to replace worn overhead concealed door closer bodies or to configure a custom Jackson® style door closer—quick ship options available.
