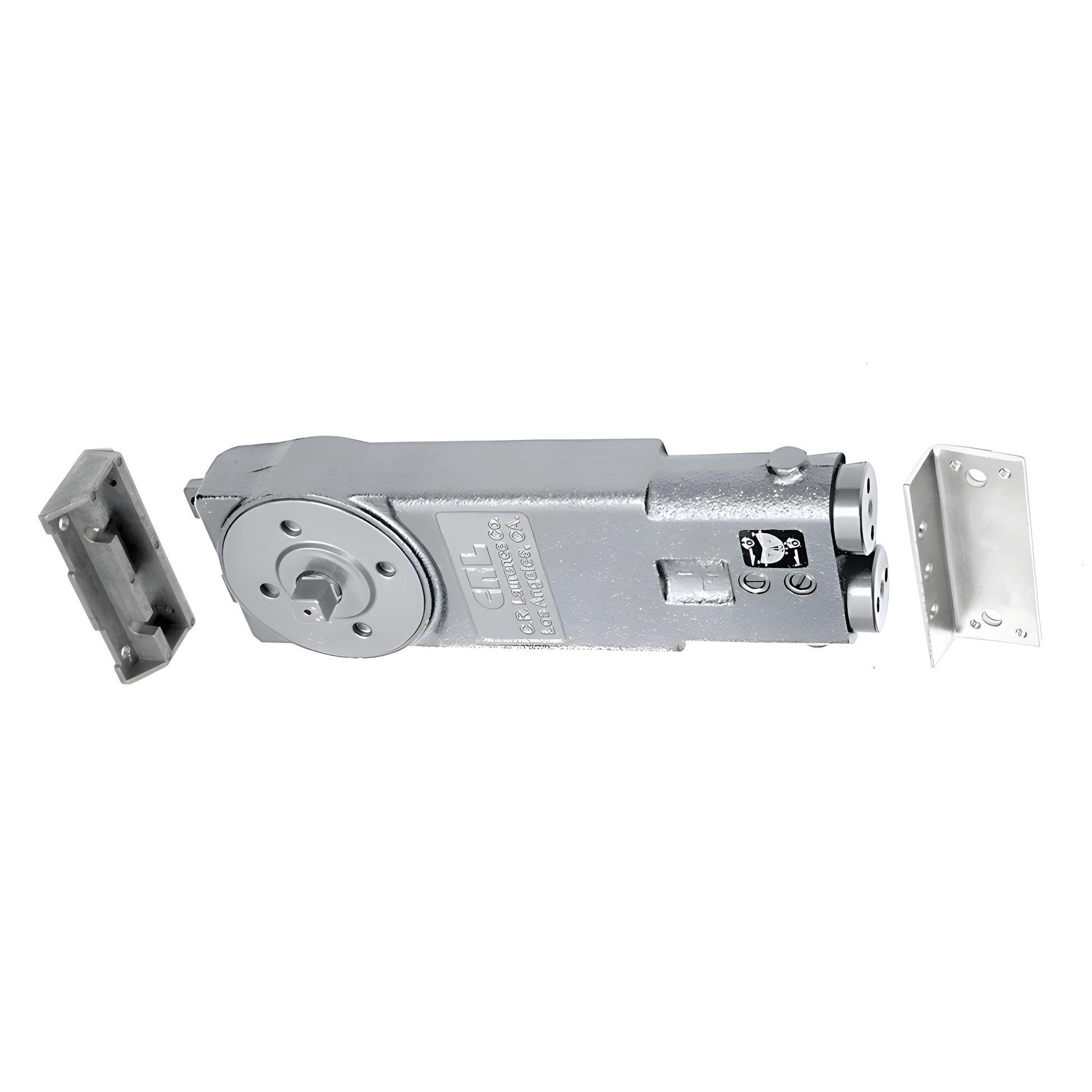

CRL Light-Duty 90° No Hold-Open Overhead Concealed Door Closer Body

• Interchangeable with all Jackson® style overhead concealed door closers
• 20 models available
• Conveniently packaged with mounting clips, templates, and instructions
• 5-year limited warranty
• UL Listed

There are two primary advantages to buying our Door Closer Bodies with Mounting Clips (SKU CRL7062). First, if you are replacing a worn-out overhead concealed door closer, you save cost by replacing only the closer body instead of the entire assembly. Second, the modular design lets you add the exact accessories you need—pivots, arms, and other components—to build a custom door closer package for your job. Each closer body ships with mounting clips, templates, and installation instructions for quick, accurate installation.

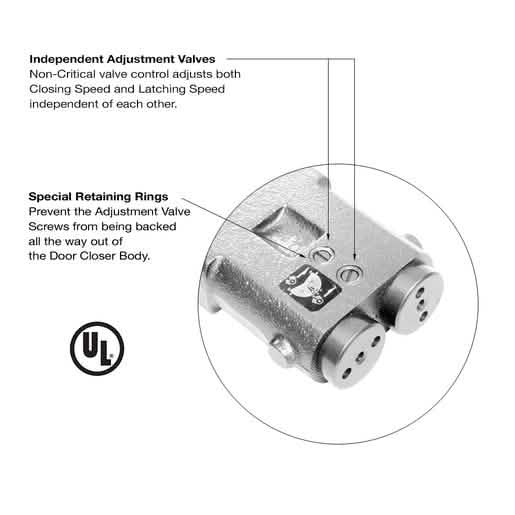

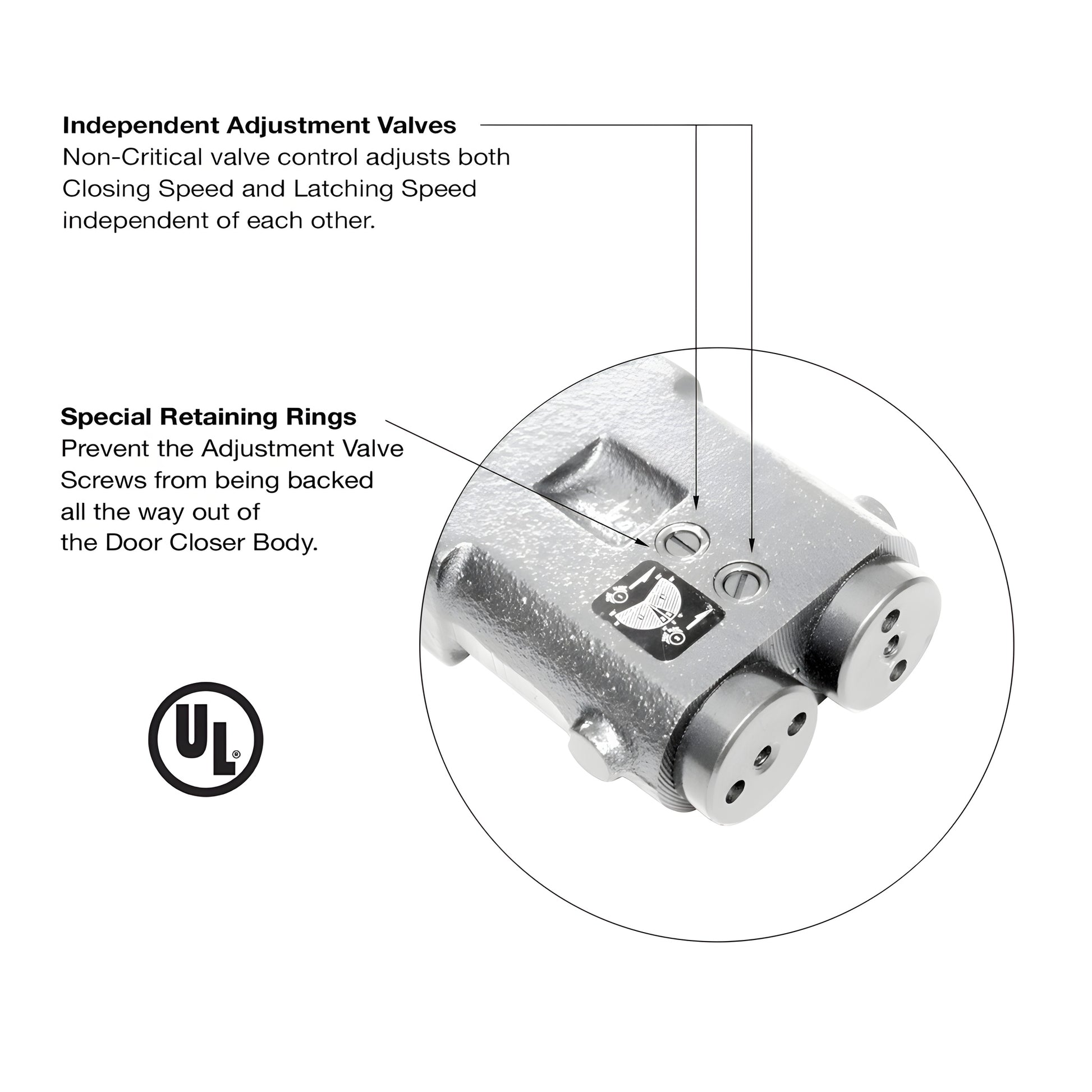

Independent Adjustment Valves
Non-critical valves allow independent control of closing speed and latching speed for precise operation and reliable traffic control.

Special Retaining Rings
Retaining rings prevent adjustment valve screws from being backed entirely out of the closer body, improving durability and serviceability.

Note: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum allowable door swing.

Weight and Size Limitations
Door weight: 200 lbs. (91 kg)
Exterior door width: 42" (1.07 m)
Interior door width: 48" (1.22 m)
All door height: 96" (2.44 m)

Perfect for contractors and facilities managers needing a Jackson-style overhead concealed door closer replacement body—order SKU CRL7062 now to get the exact parts you need.
