CRL LLPA Brushed Stainless Ladder Pull - Custom to 108" Lock-Down

• A.D.A. compatible thumbturn
• For 1/2" to 3/4" (12 to 19 mm) tempered glass doors
• Adaptor kits available for 1-3/4" (45 mm) thick doors - LLPA134ADT
• 1-1/4" (32 mm) diameter alloy available in 316 brushed or polished stainless steel tubing
• Available in custom sizes
• A.D.A. compliant models available - Ask for a quote here

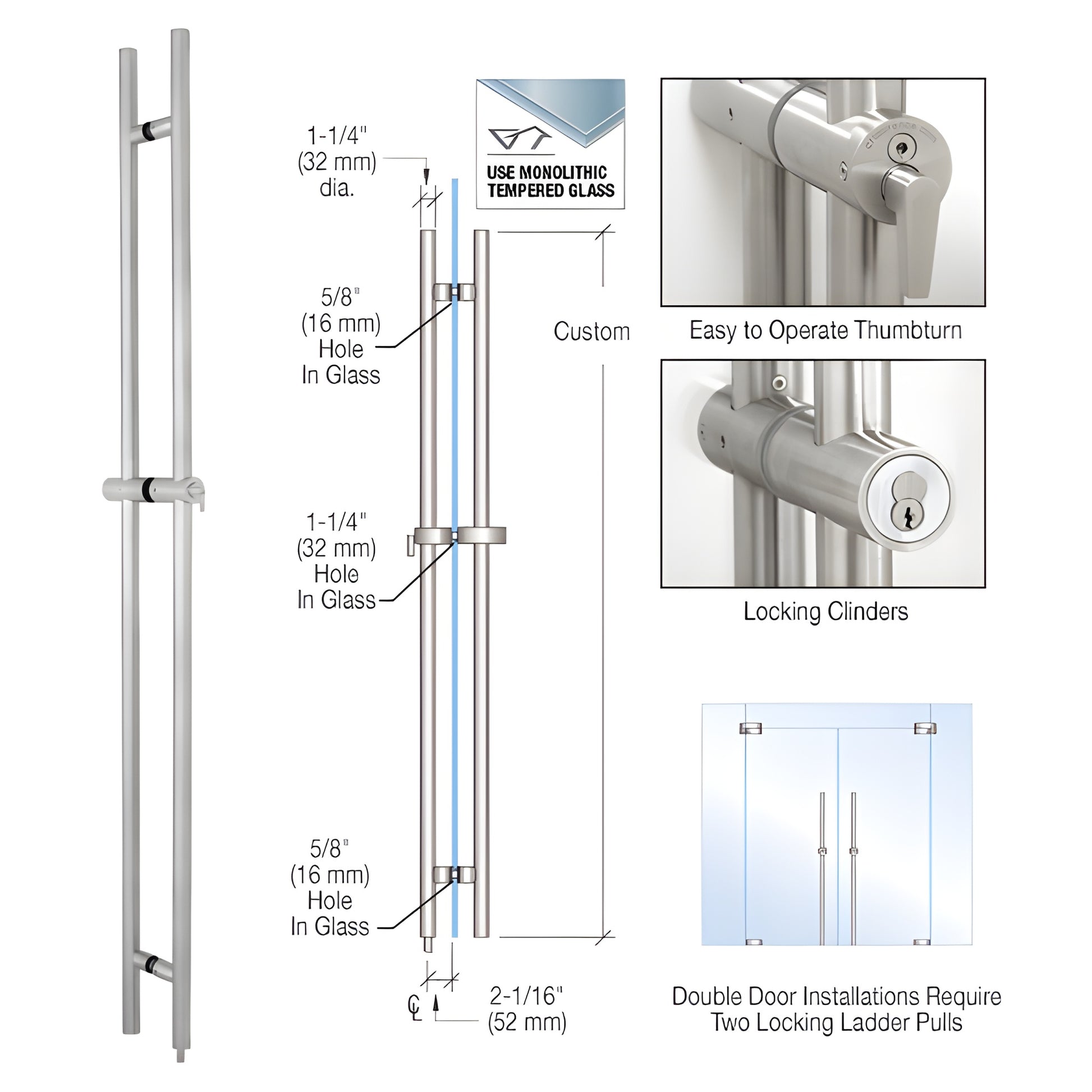

CRL LLPA Locking Ladder Pulls (SKU LLPA108DBS) feature a fully concealed deadbolt locking mechanism for a clean architectural look. Lock or unlock easily with the A.D.A. compatible thumbturn or key at a comfortable height—no bending required. Designed for interior glass doors, these locking ladder pulls fit 1/2" to 3/4" (12–19 mm) tempered glass and are offered in brushed or polished 316 stainless steel finishes.

This Locking Ladder Pull is supplied with a standard 7-pin rim cylinder with interchangeable core for easy rekeying or replacement. If you prefer a proprietary 6-pin cylinder, remove the supplied rim cylinder and install your chosen rim cylinder — the ladder pull accepts most standard rim-type cylinders. A selection of 7-pin cores is available.

Important: Product images are of the actual product or a close representation. This is a custom-made ladder pull, manufactured to order and to customer specifications. For quotes, pricing, lead times, or product questions, email askus@crlaurence.com or call (800) 421-6144.

Note: Glass fabrication is required. Push/pull indicators in complementary finishes and dustproof keepers are sold separately.

Product Warning: The Medico cylinder will not work with standard LLPA Series ladder pulls. The pivot pin and cylinder spacer must be special ordered and modified by CRL.

Stainless Steel Advisory:

For a custom quote or to order the LLPA108
