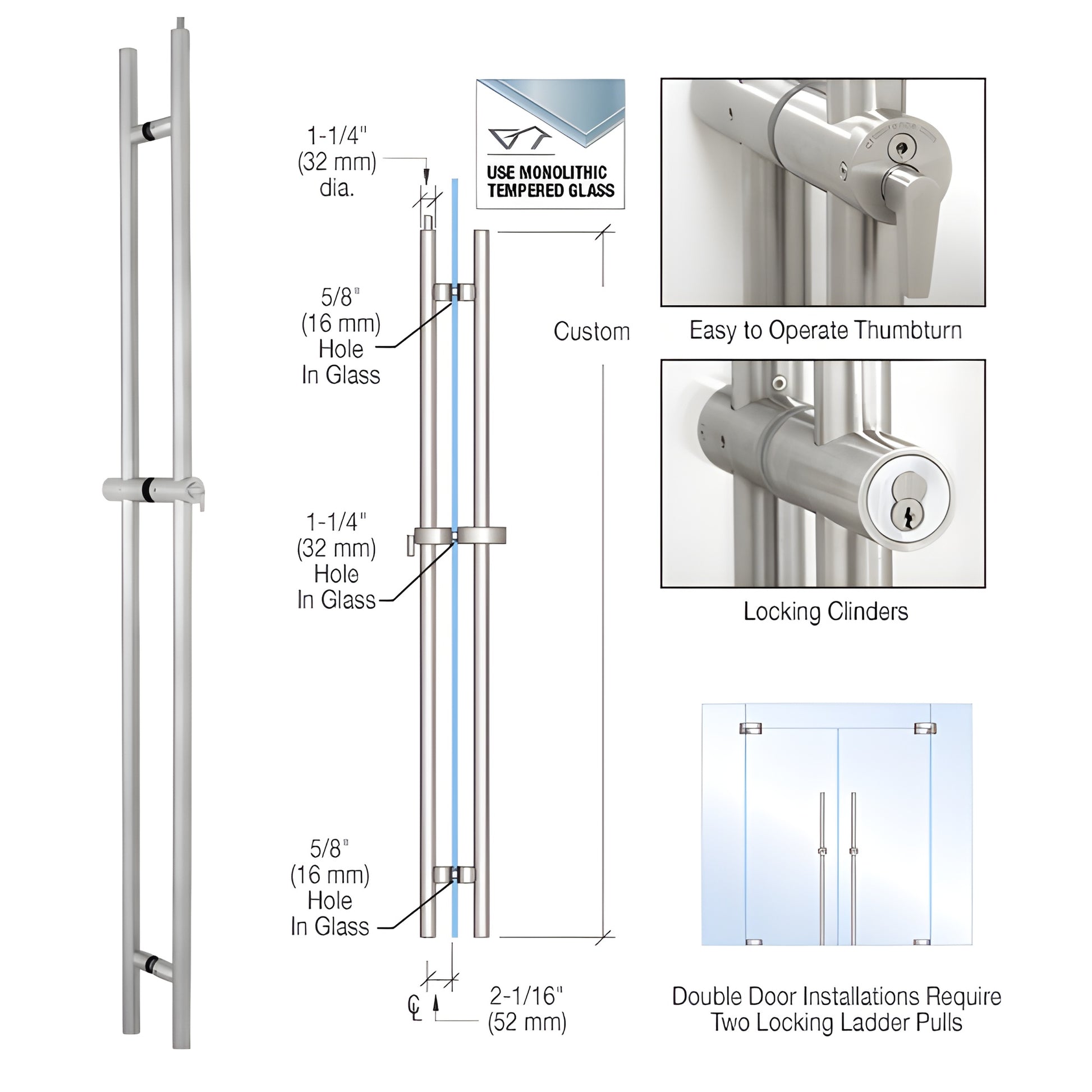

CRL LLPA Brushed Stainless Ladder Pull, Lock-Up, Custom up to 108"

• ADA compatible thumbturn for easy reach
• Fits 1/2" to 3/4" (12 to 19 mm) tempered glass doors
• Adaptor kits available for 1-3/4" (45 mm) thick doors — LLPA134ADT
• 1-1/4" (32 mm) diameter alloy available in 316 Brushed or Polished Stainless Steel tubing
• Available in custom sizes
• ADA compliant models available — Ask for a quote here

CRL LLPA Locking Ladder Pulls provide a fully concealed deadbolt locking mechanism for glass doors, with a comfortable thumbturn or keyed operation located above the finished floor. Designed specifically for 1/2" to 3/4" (12–19 mm) tempered glass, these locking ladder pulls are offered in brushed and polished stainless steel finishes — ideal for commercial glass storefronts, office glass doors, and ADA-compliant applications.

This locking ladder pull ships with a standard 7-pin rim cylinder with interchangeable core (ICC). Use the supplied core as-is, remove it for re-keying, or replace it with another 7-pin core. The unit accepts most standard rim-type cylinders; to use proprietary 6-pin cylinders, simply remove the supplied rim cylinder and install your preferred rim cylinder. Replacement cores and alternative rim cylinders are available.

Important: Product images are accurate or close representations. This is a made-to-order ladder pull manufactured to customer specifications. For pricing, lead times, or custom quotes, email askus@crlaurence.com or call (800) 421-6144.

Note: Glass fabrication is required. Push/pull indicators and dustproof keepers are sold separately.

Product Warning: The Medico cylinder is not compatible with standard LLPA Series ladder pulls. The pivot pin and cylinder spacer must be special ordered and modified by CRL.

Stainless Steel Advisory:
