- A.D.A. Compatible Thumbturn
- For 1/2" to 3/4" (12 to 19 mm) Glass
- Adaptor Kits Available for Use on 1-3/4" (45 mm) Thick Doors - LLPA134ADT
- 1-1/4" (32 mm) Diameter Alloy Available in 316 Brushed or Polished Stainless Steel Tubing
- Available in Custom Sizes
- A.D.A. Compliant Models Available - Ask for a Quote Here
Our

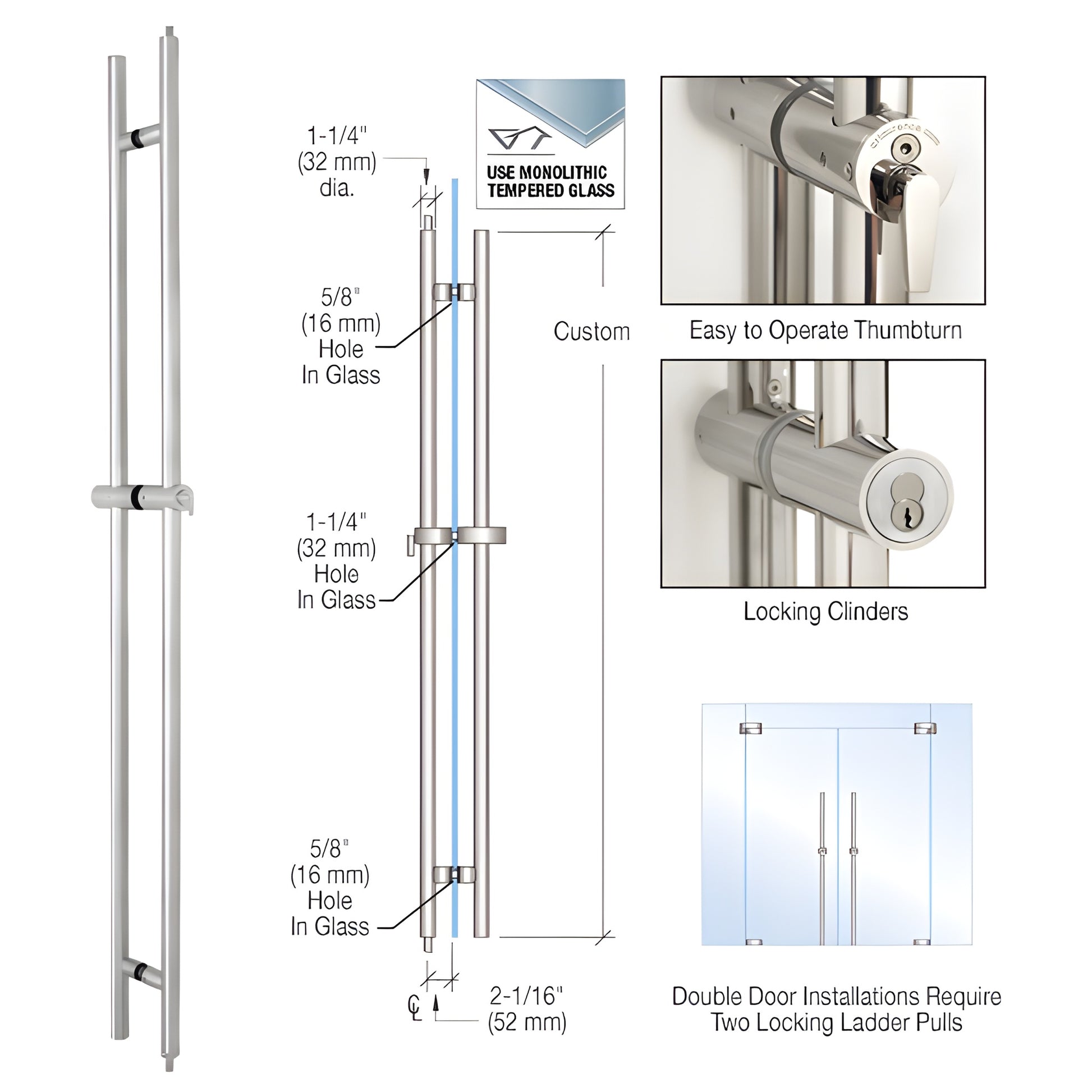

CRL LLPA Locking Ladder Pulls
have a fully concealed deadbolt locking mechanism. No need to bend, simply turn a key or thumbturn located at a comfortable height above the finished floor to lock or unlock your doors. These Locking Ladder Pulls are intended for use with glass doors made from 1/2" to 3/4" (12 to 19 mm) thick tempered glass. They are available in brushed and polished stainless steel.
This Locking Ladder Pull is supplied with our standard 7-pin Rim Cylinder with Interchangeable Core, that can be used as the final cylinder or as a temporary, and is easily replaced. If staying with the 7-pin format, just remove the core, have it re-keyed, or replace it with a new one. A selection of 7-pin Cores are available. If proprietary 6-pin Cylinders are required, simply remove the entire Rim Cylinder provided and replace with the proper Rim Cylinder of your choice. This Ladder Pull will accept most standard manufactured Rim type cylinders.
IMPORTANT NOTE
Product images shown are of the actual product or close representation. This is a custom made Ladder Pull, made to order and to customer specifications. Send your quote and/or request for prices, lead time or other product information by email to askus@crlaurence.com or by phone to (800)421-6144.
NOTE
Glass fabrication is required. Push/Pull Indicators in complementary finishes and Dustproof Keepers are sold separately.
Product Warning
The Medico cylinder will not work with our standard LLPA Series Ladder Pulls. The pivot pin and cylinder spacer must be special ordered and modified by CRL.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
