CRL

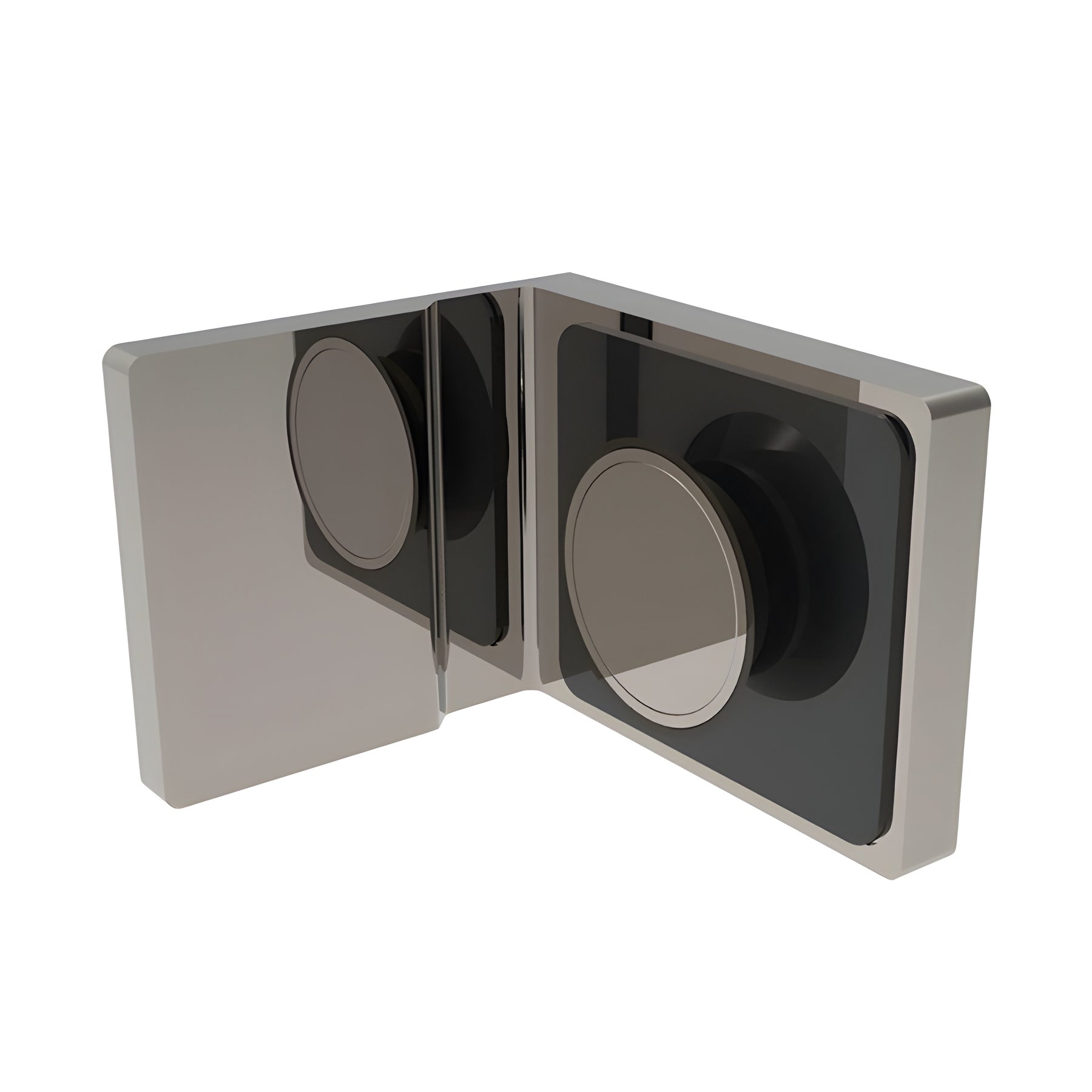

CRL Lugano Polished Chrome Wall Mount Bracket - Mounting Hardware
Item# LU90SCH
Shipping Weight: 11.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Design Style
Concealed/Premium
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Chrome
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Height
1-15/16 in. (49 mm)
Material
Brass
Maximum Door Weight
99 lbs. (44.9 kg)
Maximum Door Width
35-7/16 in. (900 mm)
Mounting Type
Wall Mount
Opening Style
Swing(side)
Series
Lugano
Width - Sidelite Portion
2-9/16 in. (65 mm)
Width - Wall Portion
2-15/16 in. (75 mm)
- For 5/16” to 3/8” (8 mm to 10 mm) glass
- Compatible with the CRL All Glass Restroom Partition System
- Use with monolithic tempered glass
- Ultra-compact, square-corner design
- Flush mount for easy-to-clean glass
- Snap-on covers conceal screws
CRL Lugano Series wall mount brackets (SKU: LU90SCH) are solid-brass brackets designed for 5/16” to 3/8” (8–10 mm) glass. Ideal as glass shelf brackets or wall-to-glass supports, they match many popular CRL hinges and clamps. The Lugano Series combines a slim, decorative profile with durable brass construction and snap-on covers for a clean, finished look. Drawings, templates and custom finishes are available upon request.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid brass
Includes: Gaskets and mounting screws
Hole Diameter Required: One countersunk hole with a 1" (25 mm) and a 1-1/4" (32 mm) diameter per bracket
Most shipping weights are approximate and unverified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are actual product or close representations; colors may vary by monitor.
For glass shelf brackets and wall-mount glass hardware in decorative finishes, order LU90SCH or contact CRL Customer Service to request drawings, templates, or custom finishes.
