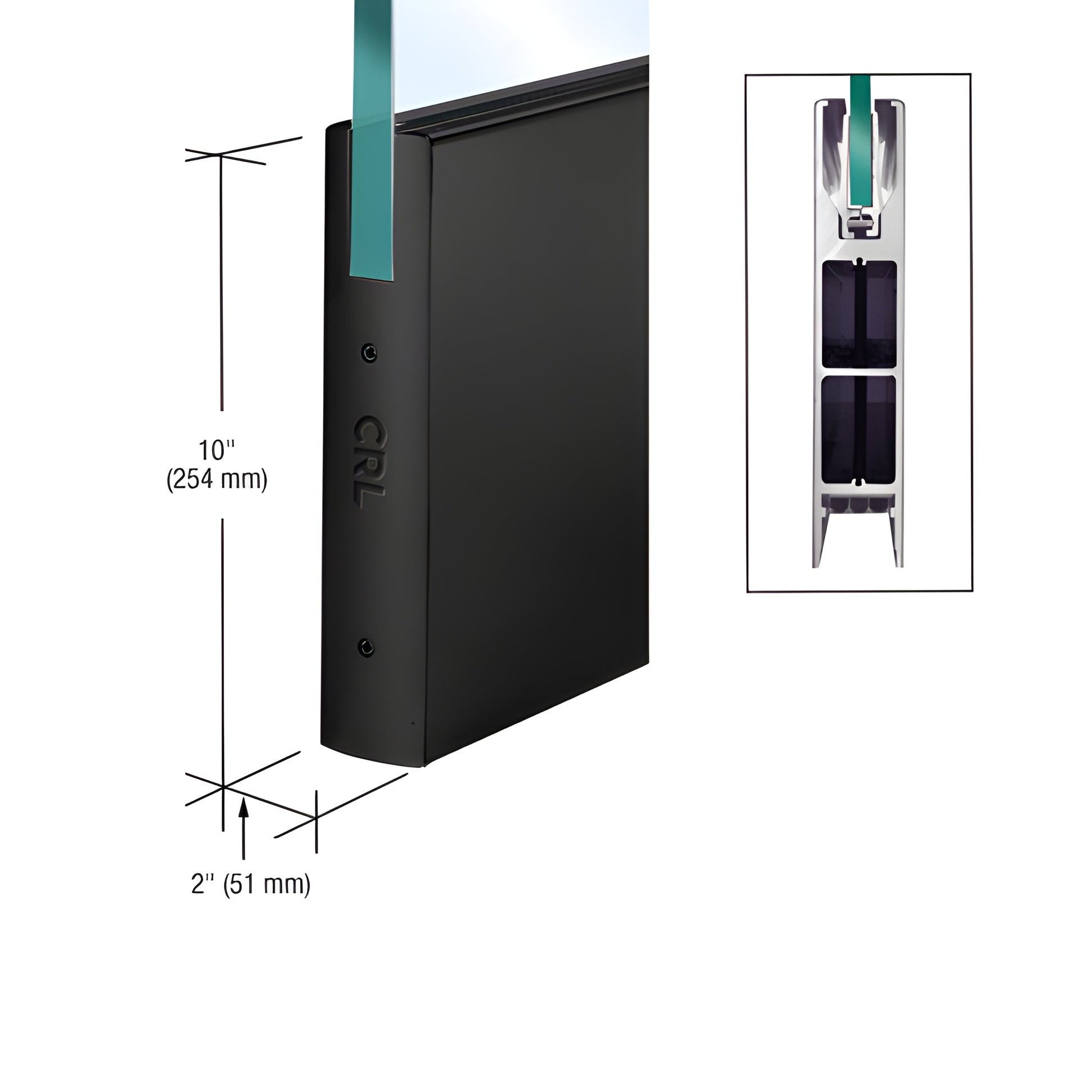

CRL Matte Black 10" Square Glass Door Rail for 1/2" Glass - No Lock

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 1/2" to 3/4" (12 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR10SMBL12C), is a high-security, fast-install glass door rail engineered for monolithic tempered glass. The exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) secures glass by applying bottom pressure through two aluminum glass-retaining extrusions and a flat stainless steel bar. As the bar is drawn down with socket head cap bolts, angled extrusions wedge together in the rail groove, producing exceptional clamping force—more than 900 lbs. in the 9" (228.6 mm) Corner Rail—and even greater force in full-length rails.

The Wedge-Lock® system is optimized for installers: rails come completely fabricated with End Caps installed for rapid on-site setup. Experienced installers can prepare a door for installation in under ten minutes. The Adjustable Door Alignment System (standard on both top and bottom rails) allows +/-1/8" (3.2 mm) field adjustment toward or away from the jamb without removing the door. After installation, access three socket head cap bolts behind the End Cap to lock or fine-adjust the slide.

Key advantages and long-tail features:

• Designed for glass door applications using 1/2" (12 mm) tempered glass and models accepting 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing—won’t shift or fall out of adjustment over time
• Internal components remain assembled during installation for faster, cleaner installs
• Durable glass-securing pads for longevity in extreme environmental conditions
• Built-in Jamb Alignment Block for consistent jamb alignment (arms and pivots sold separately)

Ordering notes:

• All Door Rails include the Kwik-Adjust™ Pivot Alignment System; closer arms and floor/overhead pivots must be ordered separately.
• Models with locks ship with the lock mechanism installed; keyed cylinders or thumbturns ordered separately.
• End Caps included with stock lengths. Specify rail length (including End Caps) when ordering custom lengths.

Product Warning:
Comes standard with Jamb
