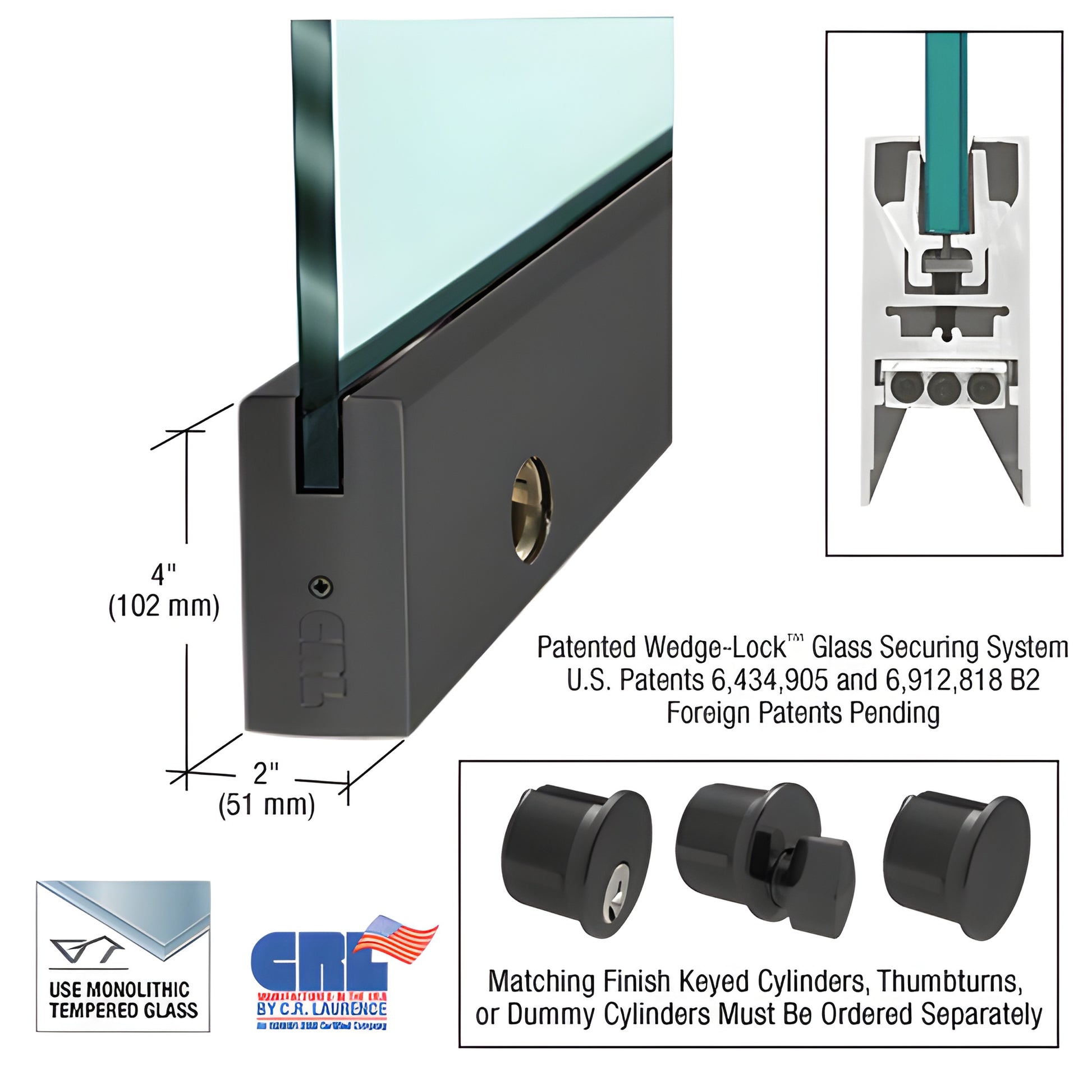

CRL Matte Black 41" Glass Door Rail w/ Lock, 1/2" Glass 4" Square

• 41" (1041 mm) length for 1/2" (12 mm) monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

The CRL Wedge-Lock® Door Rail System (SKU: CDR4SMBL12SL) is an innovative glass entrance solution designed for fast installation and strong, long-lasting glass retention. Its exclusive Wedge-Lock® Securing System uses two glass-retaining aluminum extrusions and a flat stainless steel bar tightened with socket head cap bolts. As the bar is drawn down, angled wedges pull the extrusions together, compressing the specially designed door retaining gasket to generate very high holding force (more than 900 lbs. in our 9" corner rail). This makes the system ideal for secure, heavy-duty tempered glass doors.

Product height: 4-1/16" (103 mm)

Key features and long-tail keywords:

• Fastest door rail installation—experienced installers can prepare a door in under ten minutes
• Comes completely fabricated and ready-to-install with end caps installed
• Adjustable Door Alignment System—adjust the door 1/8" (3.2 mm) toward or away from the jamb without removing the door; standard on top and bottom rails
• Low-profile adjustable slide allows non-standard pivot setbacks and vertical out-of-square fabrication
• Rigid single-component housing resists shifting and stays in adjustment over time
• Internal components do not require removal before installation
• Durable glass securing pads engineered for longevity in extreme environments

Installation notes:

• After installation, remove the end cap to access three socket head cap bolts—center bolt secures the adjustable slide; outer bolts adjust the slide 1/8" (3.2 mm) in or out
• All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms, pivots, closer arms, and floor or overhead pivots must be ordered separately
• Models with locks are supplied with the lock mechanism installed; matching keyed cylinders or thumbturns must be ordered separately
• End caps are included in stock lengths; specify overall door rail length (including end caps) when ordering custom lengths
