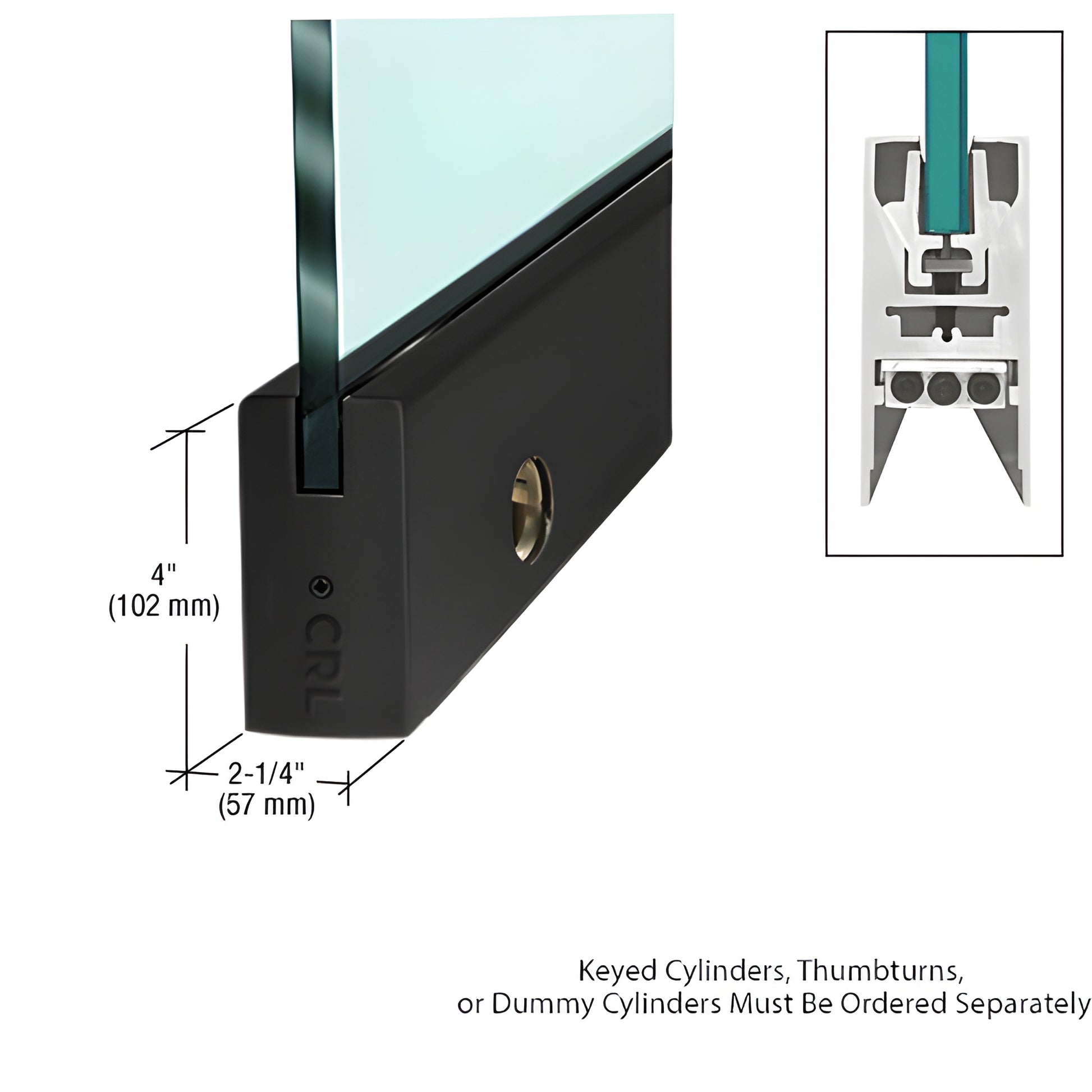

CRL Matte Black 4" Square Glass Door Rail with Lock for 1/2" Glass

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (SKU: DR4SMBL12CL)
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, is engineered for frameless and glass storefront doors using monolithic tempered glass. The system features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1), a unique wedge-action design that clamps glass with exceptional holding force.

The Wedge-Lock® system secures the glass by pulling two aluminum glass-retaining extrusions together with a flat stainless steel bar and socket head cap bolts. Angled extrusion faces engage an internal angled groove in the door rail, generating high clamping force (over 900 lbs. in the 9" corner rail), providing reliable glass retention for commercial glass doors and heavy-duty storefront applications.

Designed for fast installation, Wedge-Lock® Door Rails arrive fully fabricated with End Caps installed and require minimal on-site prep. Experienced installers can prepare a door in under ten minutes. The standard Adjustable Door Alignment System (top and bottom rails) allows 1/8" (3.2 mm) in/out adjustment via three concealed socket head cap bolts—no door removal required—making field alignment simple for out-of-square openings.

Key advantages and long-tail product features:

• Ready-to-install door rails for commercial glass doors and frameless entrances
• Adjustable Door Alignment Slide—1/8" (3.2 mm) fine adjustment without removing the door
• Rigid single-component housing resists shifting and long-term misalignment
• Internal components stay installed during fitting—reduces installation steps
• Durable glass securing pads engineered for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in Jamb Alignment Block. Arms, pivots, closer arms, and floor or overhead pivots are ordered separately to meet job requirements. Models with locks include the lock mechanism; keyed cylinders or thumbturns must be ordered in a matching finish.

CRL Wedge-Lock® Door Rails are offered in multiple standard architectural finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.
