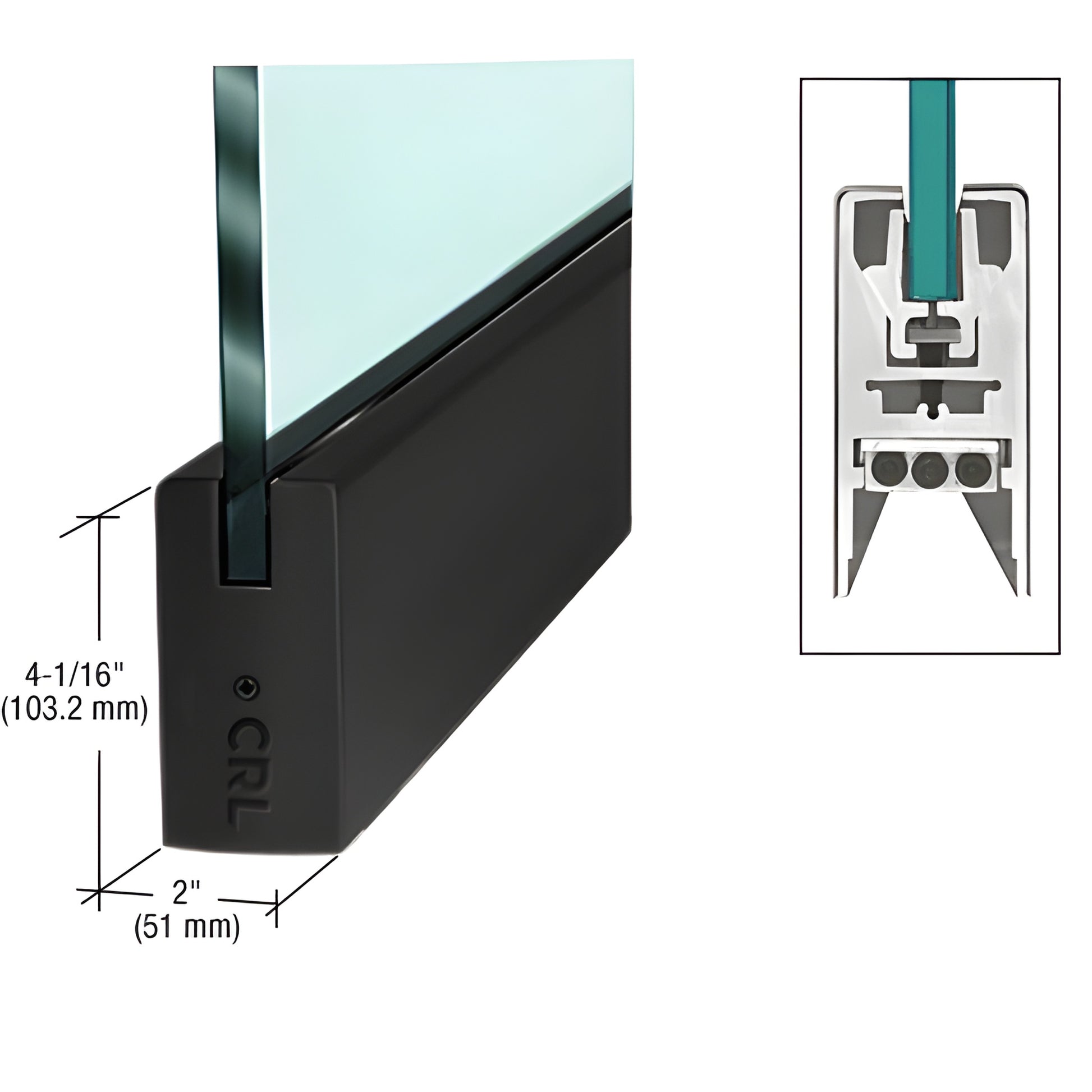

CRL Matte Black 1/2" Glass Door Rail 4" Square - Custom, No Lock

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4SMBL12C) features the exclusive, patented CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for monolithic tempered glass, the Wedge-Lock® system secures the glass by applying downward pressure through two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tensioned with socket head cap bolts, angled extrusions engage an angled groove in the rail and pull together, creating extreme retention force (more than 900 lbs. in the 9" corner rail). This robust action, combined with a specially designed door retaining gasket, delivers a secure, durable connection for commercial glass doors.

The Wedge-Lock® system is engineered for fast installation and field adjustability. Rails arrive fully fabricated with end caps installed—installers to experienced with the system can prepare a door for hanging in under ten minutes. The pre-assembled Adjustable Door Alignment Slide (standard on top and bottom rails) lets you fine-tune door alignment 1/8" (3.2 mm) toward or away from the jamb without removing the door. After installation, remove the End Cap to access three socket head cap bolts: the center bolt secures the slide and the two outer bolts provide the 1/8" adjustment in or out. The low-profile slide enables pivot placement off the American Standard setback for vertically out-of-square openings.

Key differentiators:

• Patented Wedge-Lock® retention provides industry-leading holding force and longevity for 1/2" tempered glass doors.
• Rigid single-component housing resists shift and maintains adjustment over time (not two-piece construction).
• No internal component removal required before installation—saves labor and time.
• Glass securing pads designed for long life in extreme environments.

Notes & ordering: All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block; arms, pivots, closer arms, and floor or overhead pivots must be ordered separately to meet job requirements. Models with locks ship with the lock mechanism installed; keyed cylinders or thumbturns in matching finishes are ordered separately. End caps are included in stock rail lengths; specify total rail length (including end
